SSN3EGS212

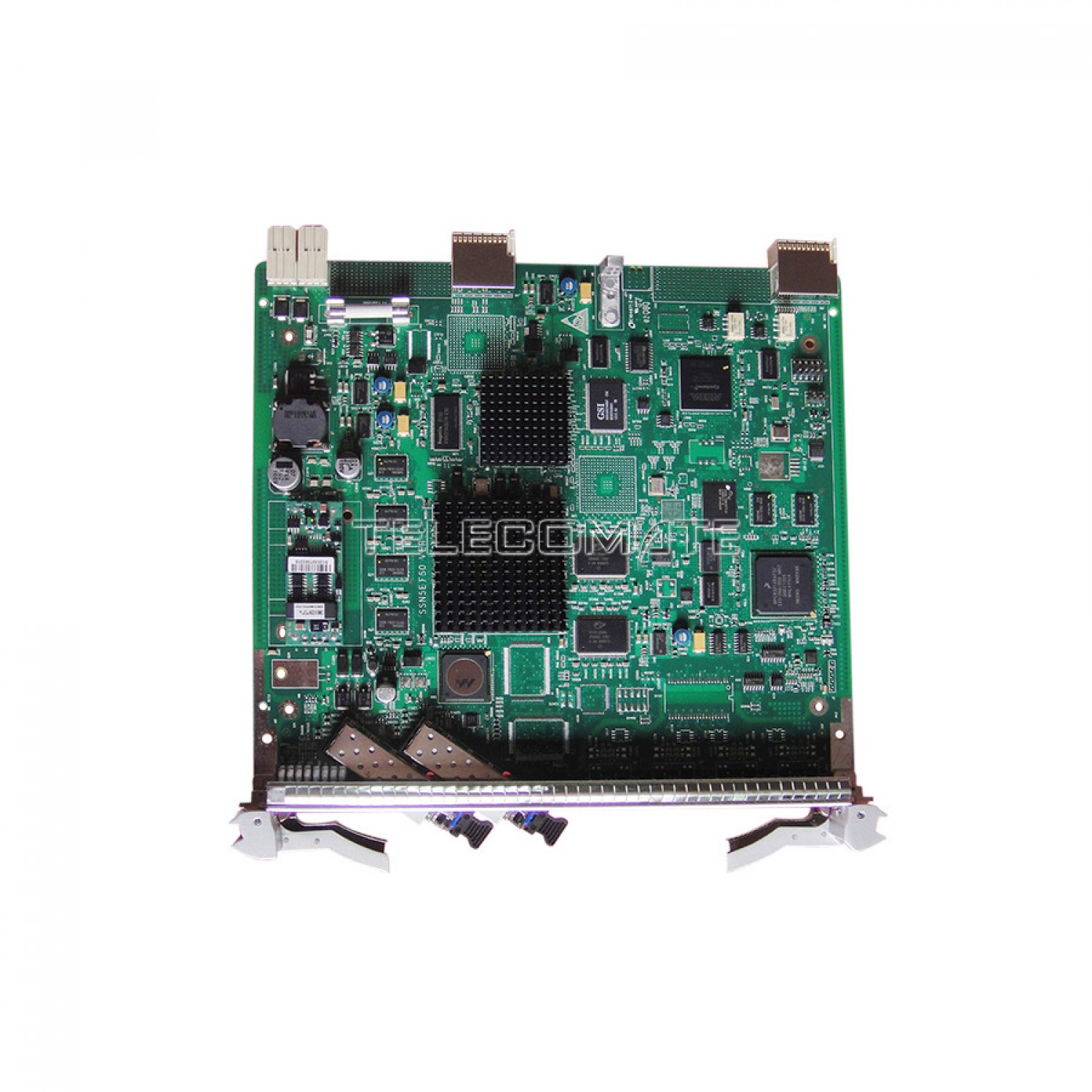

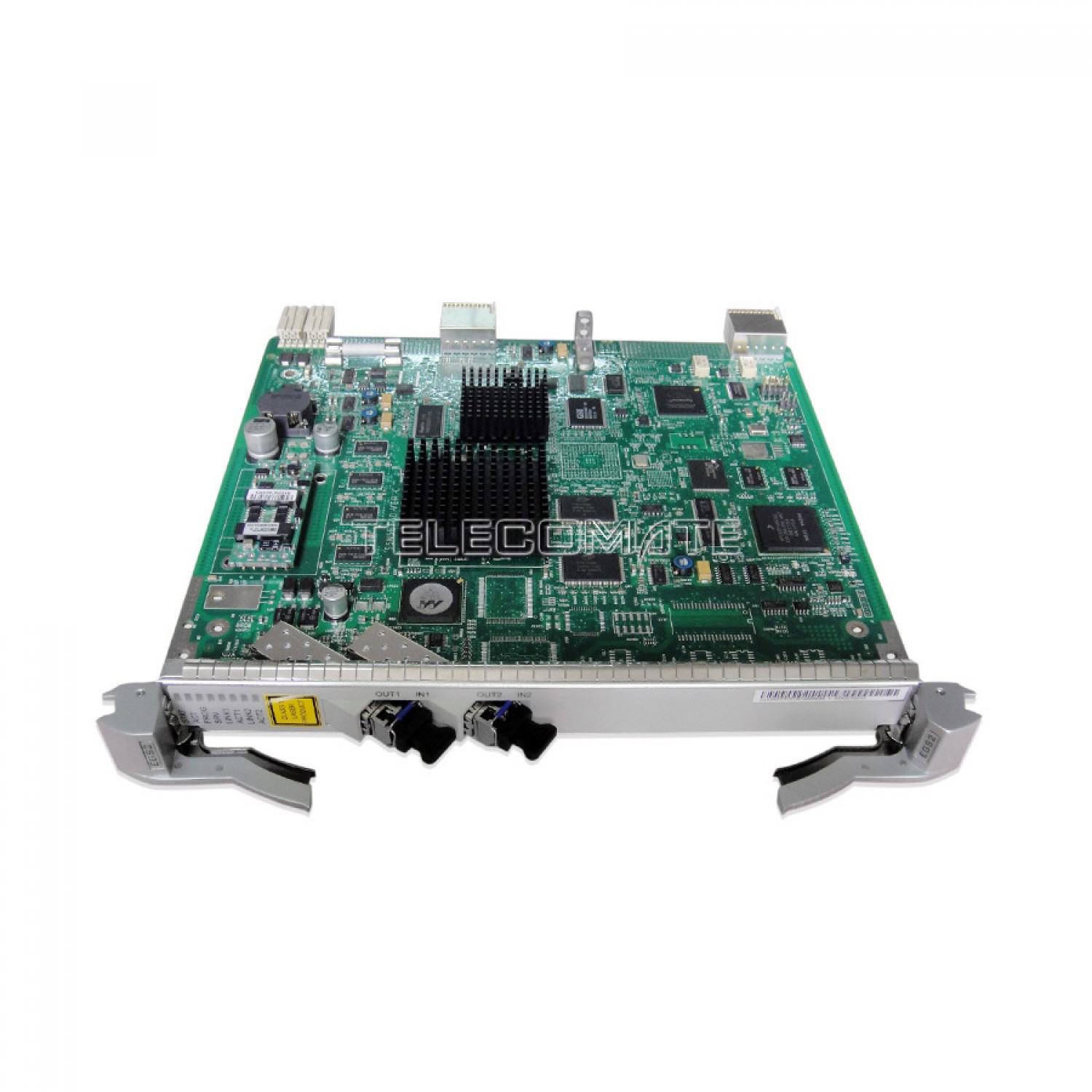

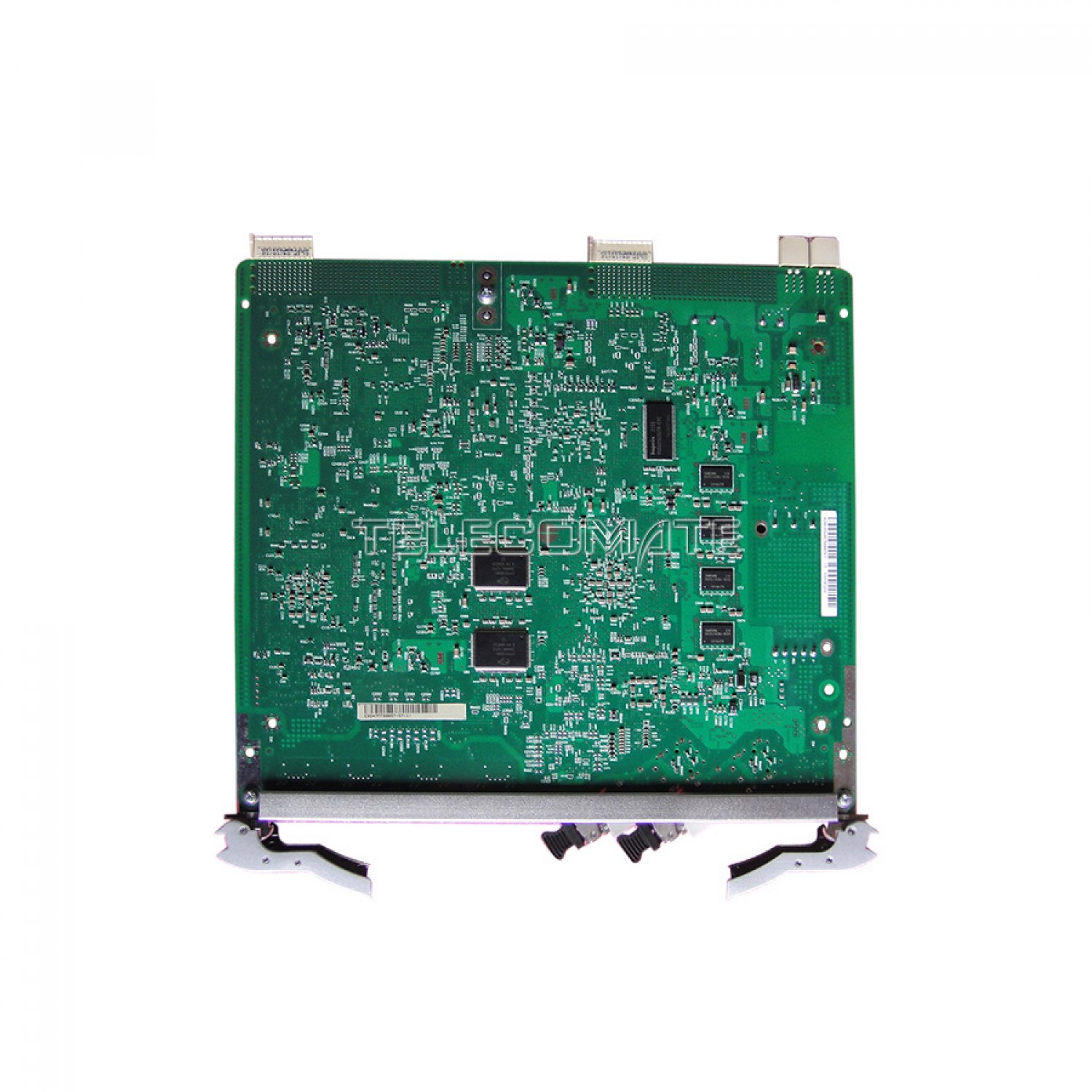

Huawei OSN1500 2500 3500 7500 series transmission processing board, 2 GE interface with LAN switch

SKU: 3904 Category:

Description

Optical Interface Parameter
Type of Optical Interface 1000BASE-VX (40 km)
Type of fiber Single-mode LC
Operating Wavelength range(nm) 1270 to 1350
Launched optical power range (dBm) -5 to 0
Receiver sensitivity (dBm) -23
Minimum overload (dBm) -3
Minimum extinction ratio (dB) 9
Maximum -20 dB spectral width (nm) 1
Minimum side mode suppression ratio (dB) 3
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 220 (D) x 254.1 (H)
Weight (kg) 0.6

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
