The Ultimate Guide to OLT Port Capacity Calculation: Architecture, Specs, and Deployment

Introduction: The Centrality of OLT Port Capacity in Modern Fiber Access Networks

In the architecture of any Passive Optical Network (PON), the Optical Line Terminal (OLT) serves as the fundamental aggregation point. As the interface between the service provider’s core network and the optical distribution network (ODN), the OLT’s port capacity is not merely a technical specification—it is a strategic business decision that dictates subscriber scalability, capital expenditure (CAPEX), and long-term operational viability . Under-dimensioning the OLT results in premature network exhaustion and costly, disruptive upgrades. Over-dimensioning locks up capital in idle hardware. This guide provides a comprehensive, data-driven methodology for OLT port capacity calculation, leveraging industry standards and engineering best practices to align capacity planning with real-world growth trajectories.

Understanding the Core Architecture and Hardware Topology of an OLT

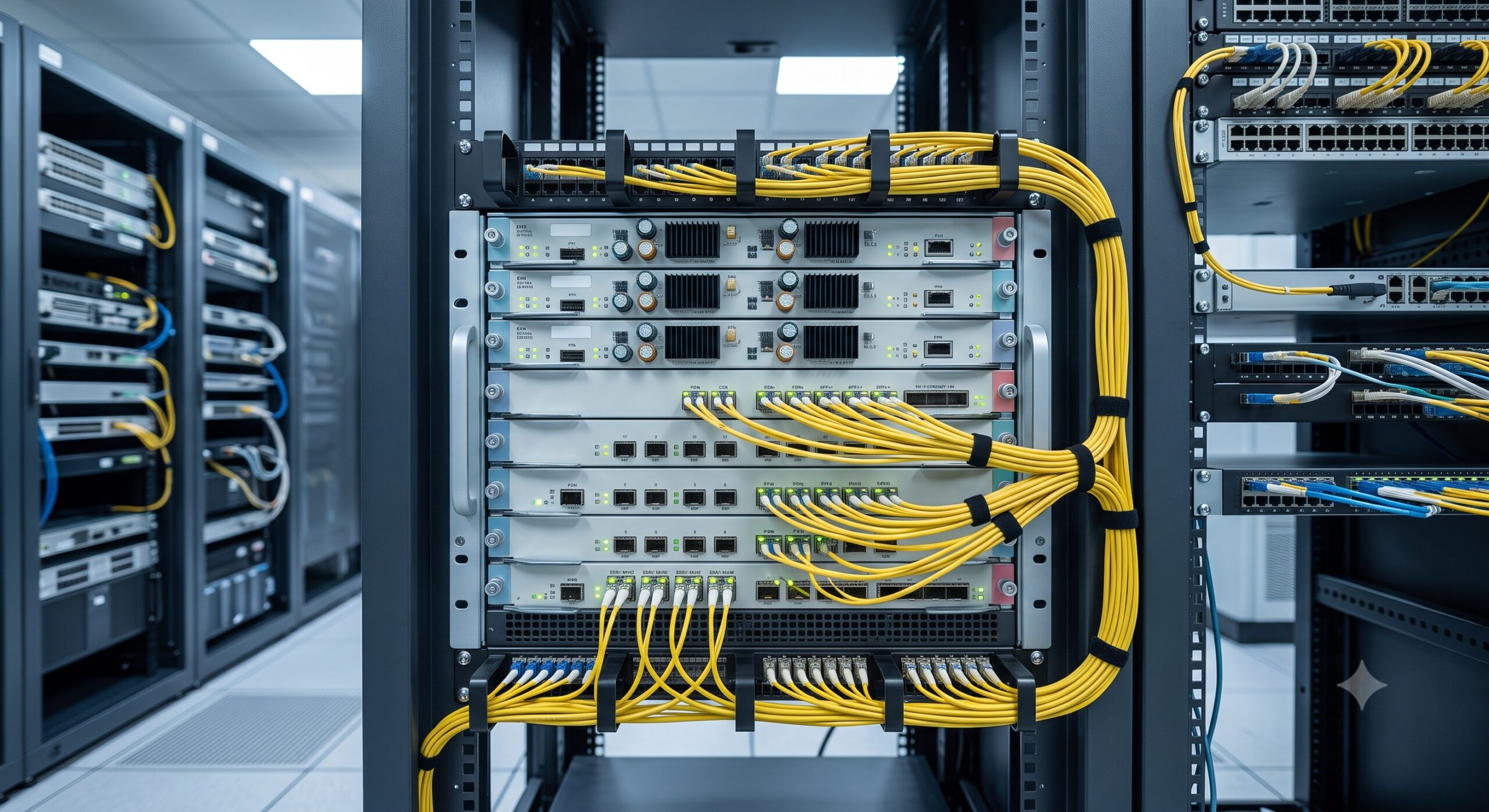

The capacity calculation process begins with a granular understanding of the hardware. An OLT is a complex system composed of a backplane, control and switching fabric, line cards, and physical PON ports. For large-scale deployments, modular chassis OLTs are preferred, offering high-density configurations and carrier-grade reliability. These platforms feature high-capacity backplanes; for instance, the Huawei SmartAX MA5600T offers a 3.2 Tbit/s backplane capacity and 960 Gbit/s switching capacity, supporting up to 768 GE access ports . This high-bandwidth backplane is critical for non-blocking performance when aggregating traffic from hundreds of PON ports.

Port Density and Form Factor: Box vs. Chassis

The physical form factor is the first determinant of port capacity. Compact or “box” OLTs are designed for space-constrained and cost-sensitive edge deployments, typically offering 1 to 16 PON ports. The VSOL V3600G1-C, for example, is an 8-port 10G Combo PON OLT suitable for distributed access nodes . For regional, metropolitan, or national ISPs, modular chassis OLTs are essential. These platforms can scale from 64 PON ports to over 256 ports, enabling high subscriber density in a single rack unit . The choice between these form factors is a foundational step in capacity calculation, directly impacting rack space, power consumption, and scalability.

Determinants of Port Capacity: PON Standards, Split Ratios, and Subscriber Density

The effective capacity of a single OLT PON port is determined by a combination of the underlying PON standard and the engineering choice of split ratio. The IEEE 802.3ah standard defines EPON, while ITU-T G.984 (GPON) and ITU-T G.987 (XG-PON) define the widely deployed gigabit and 10-gigabit solutions.

Theoretical Maximums vs. Practical Limits

Each standard defines a theoretical maximum split ratio, but real-world deployments are constrained by bandwidth per subscriber and optical power budgets.

• GPON (ITU-T G.984): The standard supports a 1:128 split, offering 2.488 Gbps downstream and 1.244 Gbps upstream per port . However, at a 1:128 ratio, the aggregate bandwidth is shared among all 128 subscribers. If each subscriber subscribes to a 100 Mbps service, the aggregate bandwidth of 2.488 Gbps would be quickly saturated during peak hours .
• XGS-PON (ITU-T G.9807.1): This next-generation standard provides symmetrical 9.953 Gbps downstream and upstream , effectively multiplying the capacity per port by four compared to GPON. This enables higher split ratios (1:128) or, more commonly, significantly higher bandwidth per subscriber for business and 5G backhaul applications.

A critical consideration for network architects is oversubscription. While GPON supports up to 128 ONUs, traffic modeling research indicates that a 1:64 split ratio will not satisfy high-demand residential traffic profiles beyond 2025; a reduction to 1:32 or an upgrade to XGS-PON is recommended .

Step-by-Step OLT Port Capacity Calculation Model

The capacity calculation is a systematic engineering exercise that translates subscriber forecasts into a hardware requirement. The model integrates traffic engineering principles and operational growth expectations .

Step 1: Define Target Subscriber Base and Service Mix

This involves forecasting the number of residential, business, and mobile backhaul subscribers over a 3-5 year planning horizon. This forecast must be segmented by service type to estimate bandwidth requirements. A business subscriber may require 200 Mbps of assured bandwidth, while a residential user may have a 50 Mbps best-effort service.

Step 2: Determine Bandwidth per Subscriber and Peak Usage

The next step is to estimate the bandwidth demand during the busy hour. This is calculated by multiplying the committed information rate (CIR) by the subscriber penetration rate and the service take-rate. For example, in a triple-play scenario (voice, video, data), the bandwidth requirement per subscriber during peak hours is significantly higher than the average .

Step 3: Calculate Required PON Ports

The core calculation is straightforward: Required PON Ports = (Target Subscribers) / (Split Ratio). For instance, an ISP targeting 2,000 subscribers with a planned 1:32 split ratio requires approximately 63 PON ports .

• Example A (2,000 subscribers): 2,000 ÷ 32 = 63 PON ports. This could be fulfilled by four 16-port OLTs or eight 8-port OLTs.
• Example B (8,000 subscribers): 8,000 ÷ 64 = 125 PON ports. This level of density typically signals a transition from box to high-density chassis OLT systems.

Step 4: Growth Rate and Future-Proofing

If the subscriber base is projected to grow at more than 30% annually, selecting a higher-density OLT or a platform with modular expansion capabilities will reduce future replacement costs and network churn .

Evaluating the OLT Port Capacity Matrix and Uplink Considerations

Comprehensive Port Capacity Matrix

An accurate capacity model must also consider the OLT’s uplink interfaces. A 16-port GPON OLT has a total downstream capacity of 16 × 2.488 Gbps = 39.8 Gbps. Without sufficient uplink capacity (e.g., multiple 10GE ports), the OLT itself becomes a bottleneck, leading to packet loss and degraded subscriber experience during peak hours. High-density systems like the TP-Link TL-NOLT800-16-24T2Q, which offers 24 x 10G SFP+ ports and 2 x 40G QSFP+ ports, provide the necessary backhaul bandwidth to the core network .

Redundancy, Protection, and High-Availability Architectures

Carrier-grade OLT deployments demand high availability. This requires factoring in network protection mechanisms that effectively double the required port count in some scenarios. The ITU-T G.984.1 standard defines various protection architectures. A common implementation is Type B protection, which provides 1:1 redundancy for the OLT’s PON ports and the ODN fiber. This means that for every active PON port, a redundant port is reserved on a secondary OLT line card or a completely separate OLT chassis. When calculating total required ports for a carrier-grade design, the formula must be adjusted: Total Ports Required = (Active Ports) × 2 . For example, an enterprise campus requiring 63 GPON ports would need to deploy two OLTs, each equipped with four 16-port GPON boards to provide full protection.

Conclusion: Optimizing OLT Port Capacity for Strategic Network Growth

OLT port capacity calculation is a critical exercise at the intersection of engineering and business strategy. A data-driven methodology—grounded in a clear understanding of subscriber growth, bandwidth demand, and oversubscription ratios—is essential. Network planners must start with a forecast of subscribers and services, map that against the capabilities of EPON, GPON, or XGS-PON standards, and then apply a realistic split ratio. The final hardware selection must balance port density, form factor, and uplink bandwidth to ensure a non-blocking architecture. By rigorously applying these engineering principles and planning for both growth and redundancy, service providers can maximize ROI, ensure a high-quality subscriber experience, and build a future-proof access network.
