ZTE ZXA10 C320 10GE AC

ZTE ZXA10 C320 10GE AC

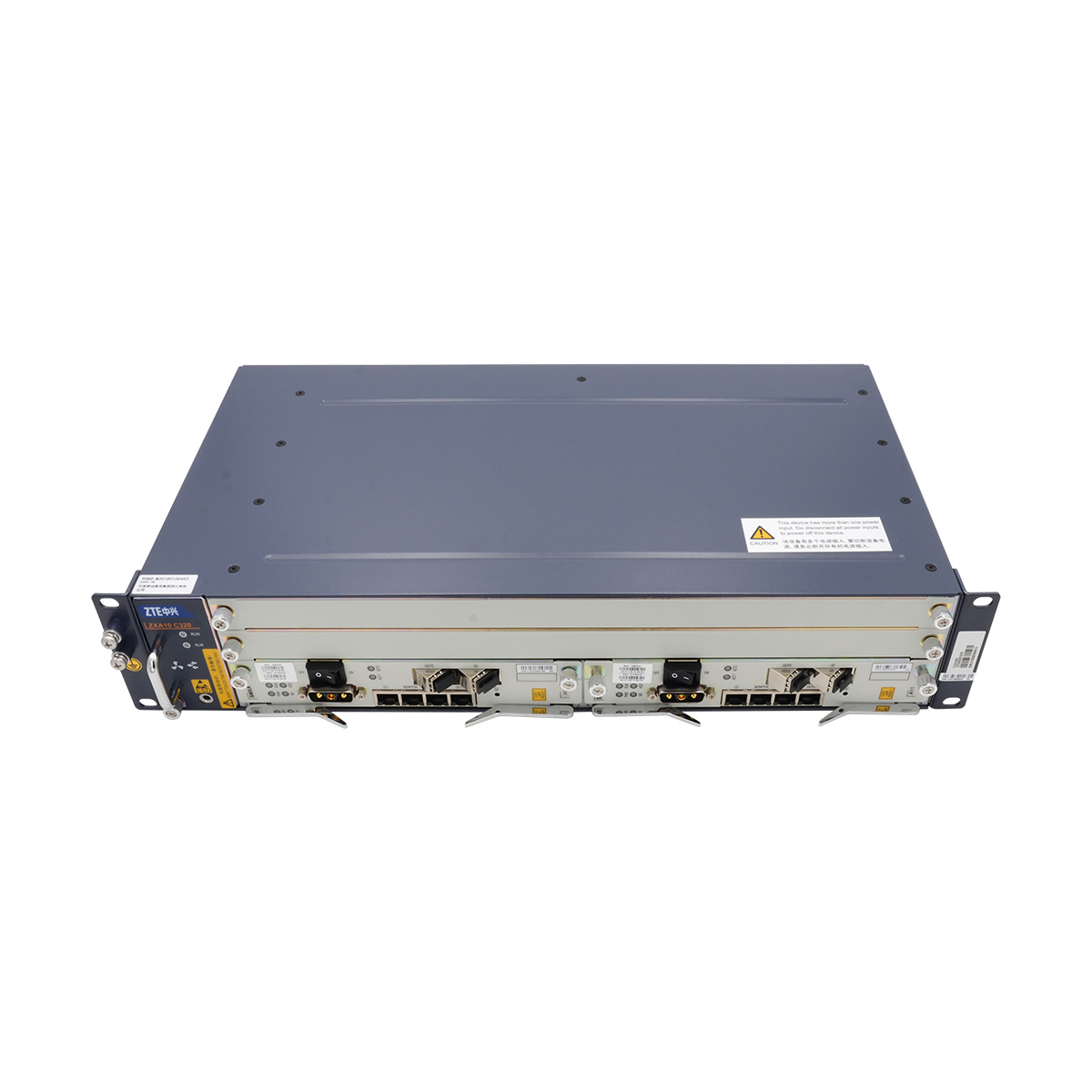

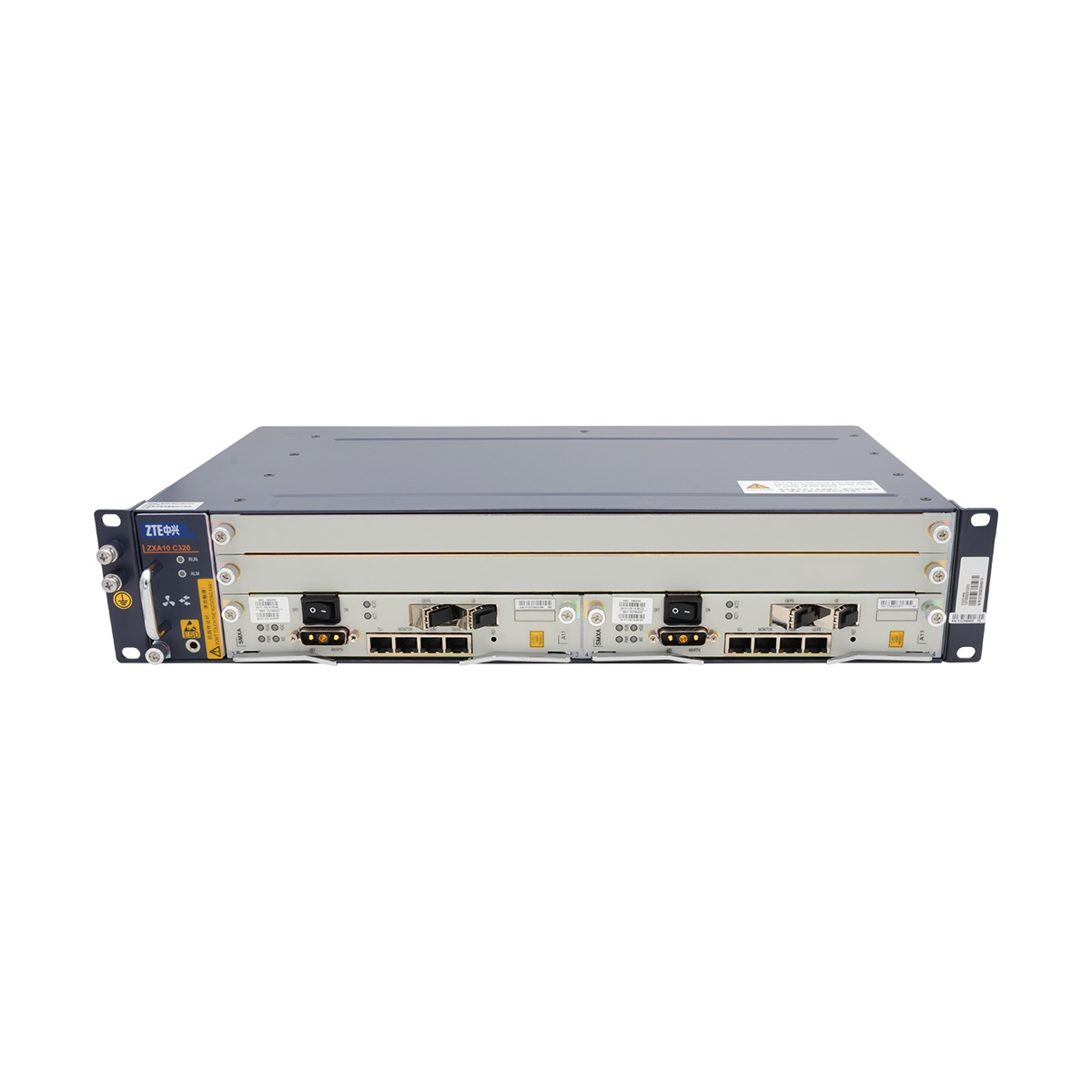

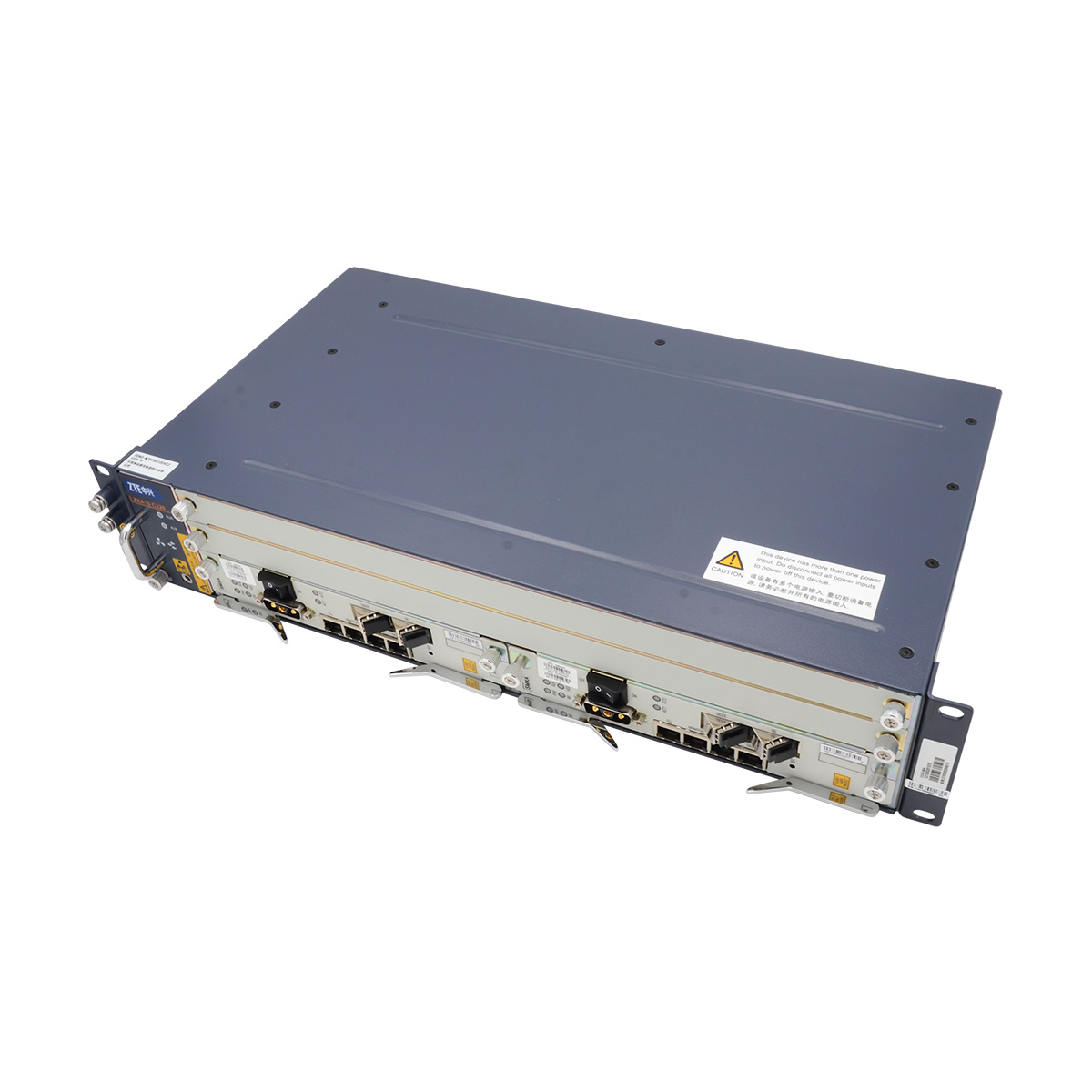

ZTE ZXA10 C320 Chassis with Single SMXA/3(SMXA+UCDC3) or SMXA/5(SMXA+UCDC5) 10GE Main Control Board and 1 PRAM AC Power Card

SKU: 11212 Category:


ZTE C320 Overview

ZTE ZXA10 C320 19 inch chassis with 2 service slots, come with one 10GE Main Control Board and one AC Power Board, but you can choose other main control cards and power units solutions.

About the control board:

SMXA/1(SMXA+UCDC/1, with 2-port GE  SFP uplink),

SMXA/3(SMXA+UCDC/3, with 1 GE SFP and 1 10GE SFP+ uplink)

SMXA/5(SMXA+UCDC/5, with 1 GE SFP and 1 10GE SFP+ uplink)

About the power board:

The DC power interface is integrated on the main control card by default.

If the AC power supply is needed, one of the main control slots would be ocucupied by the AC power supply unit: PRAM.

Supported Pon Board for ZTE OLT
ZTE ZXA10 C320 OLT Product Feature

The ZXA10 C320 is the industry’s first compact FTTx central office access platform oriented to next-generation PON evolution. It is vastly deployed for low-density areas, outdoor deployment, and limited space scenarios. It offers ultrafast bandwidth, meets full-service access and multiple scenario requirements, and provides carrier-class QoS and security guarantee.

Multiple access modes and coexistence of different generations of PON technologies ensure a sustainable evolution of the network

  • Supports a full range of GPON solutions at 10G PON
  • A unified platform that supports the coexistence of multiple PON technologies

2U high, supports up to 32 PON ports

  • Greatly save installation space compared to large OLTs
  • 2U height requires less equipment space and supports deployment in a wide range of scenarios

Adapts to a wide variety of network modes and scenarios to implement flexible, on-demand deployment

  • Unified platform: enables coexistence of GPON / EPON and 10G PON and supports upgrade on demand
  • Adaptable to a wide variety of scenarios – Adapts to low-density, enterprise access, outdoor deployment, limited space, and FTTM scenarios
  • Flexible network: Supports star, link, and Ethernet ring network modes

Multiple outdoor cabinets to suit more application scenarios supported

  • Supports AC, DC and backup power supplies.
  • Supports a wide range of outdoor cabinets to meet user demands.
  • Meets the requirements of extreme environments.

The industry’s first innovative Combo PON solution significantly reduces the difficulty and cost of upgrading from GPON to 10G PON

  • 3-in-1 function (GPON + 10G PON + WDM1r) in a Combo PON port and two generations of PON technologies built into one card help smoothly upgrade from GPON to 10G PON
  • Utilize existing shelves, racks, ODFs, and other resources to dramatically reduce equipment room space and save capital expenditures.
  • No additional insertion loss. It is not necessary to change the existing ODN
  • Saves spare parts and maintenance costs and reduces operating expenses

Ecological and energy saving platform

  • Intelligent speed control fans
  • Supports ALS port detection

Fast provisioning of services through “zero” data planning and “zero” manual configuration

  • Automatic service configuration
  • Automatic access to ONU
  • Export ONU data in batches and implement ONU plug-and-play
  • Convenient and efficient service provision
ZTE ZXA10 C320 OLT Datasheet
Item ZTE ZXA10 C320
Backplane capacity 420 Gbit/s
Switching capacity 84 Gbit/s
Number of service cards 2 (GPON/P2P/XG-PON1)
Number of combined control cards 2
Number of power supply cards 1
Number of uplink cards 1 (10GE/GE/FE/E1/T1)
Maximum number of GPON subscribers 4096
Management Interfaces CLI, SSH, SNMP, telnet
Power -48 V (DC), 230V (AC)
Working temperature and humidity -25°C – +55°C, 5% – 95%
Split Ratio up to 1:128
Range 20-60 km
Maximum attenuation SFP B+ 28 dB, SFP C+ 32 dB
Dynamic Bandwidth Allocation NSR-DBA, SR-DBA
Support FEC, AES128, SCB, OLS
Dimensions 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power Supply Dual DC: 48V/60VAC: 100V~240V
Cabinet Indoor: 2200mm x 600mm x 300mm standard cabinet  Outdoor: EC90EB, EC70E

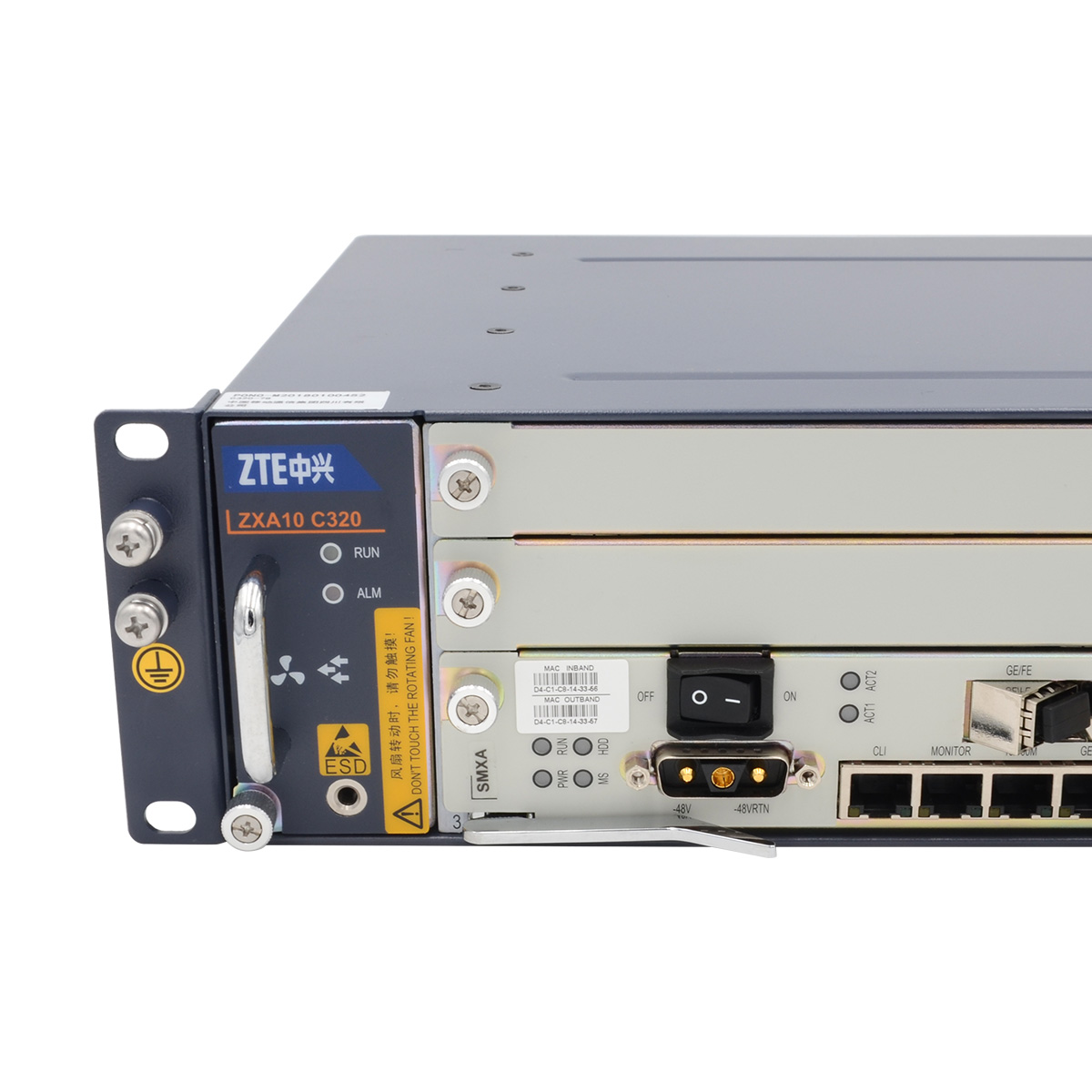

Main-Control Switching Card SMXA Panel interfaces:

1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical)

1*serial port+ 1*management FE+ 1*environment detecting port

Ethernet uplink port:

MAX. 2*10GE+4*GE or 6*GE

Service Card  (2 slots) GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1)

Additional information

Weight 11.5000 kg
Dimensions 60.0000 × 39.0000 × 25.0000 cm

2 reviews for ZTE ZXA10 C320 10GE AC

  1. 5 out of 5

    Martín Bruno

    La chasis de ZTE ZXA C320 es nueva. Hemos probado la velocidad de enlace ascendente SMXA5. Con el soporte del módulo óptico original ZTE 10GE 10KM, el rendimiento es muy bueno en términos de potencia luminosa, sensibilidad de recepción y distancia de transmisión.

    Al mismo tiempo, también compramos un lote de muestras ONU, ZTE ZXHN F670L, en Telecomate.com, y los resultados de las pruebas también son muy satisfactorios para nosotros. El OMCI permite a nuestros ingenieros administrar directamente el equipo del lado del cliente a través de OLT.

  2. 5 out of 5


    We want to try ZTE OLT in a small project, we received C320 with one GTGH C+ last week.
    Telecomate.com shared us C320 and F660 configuration and register guide, really fast response and professional support.
