FiberHome AN5516-04

PN FiberHome AN5516-04

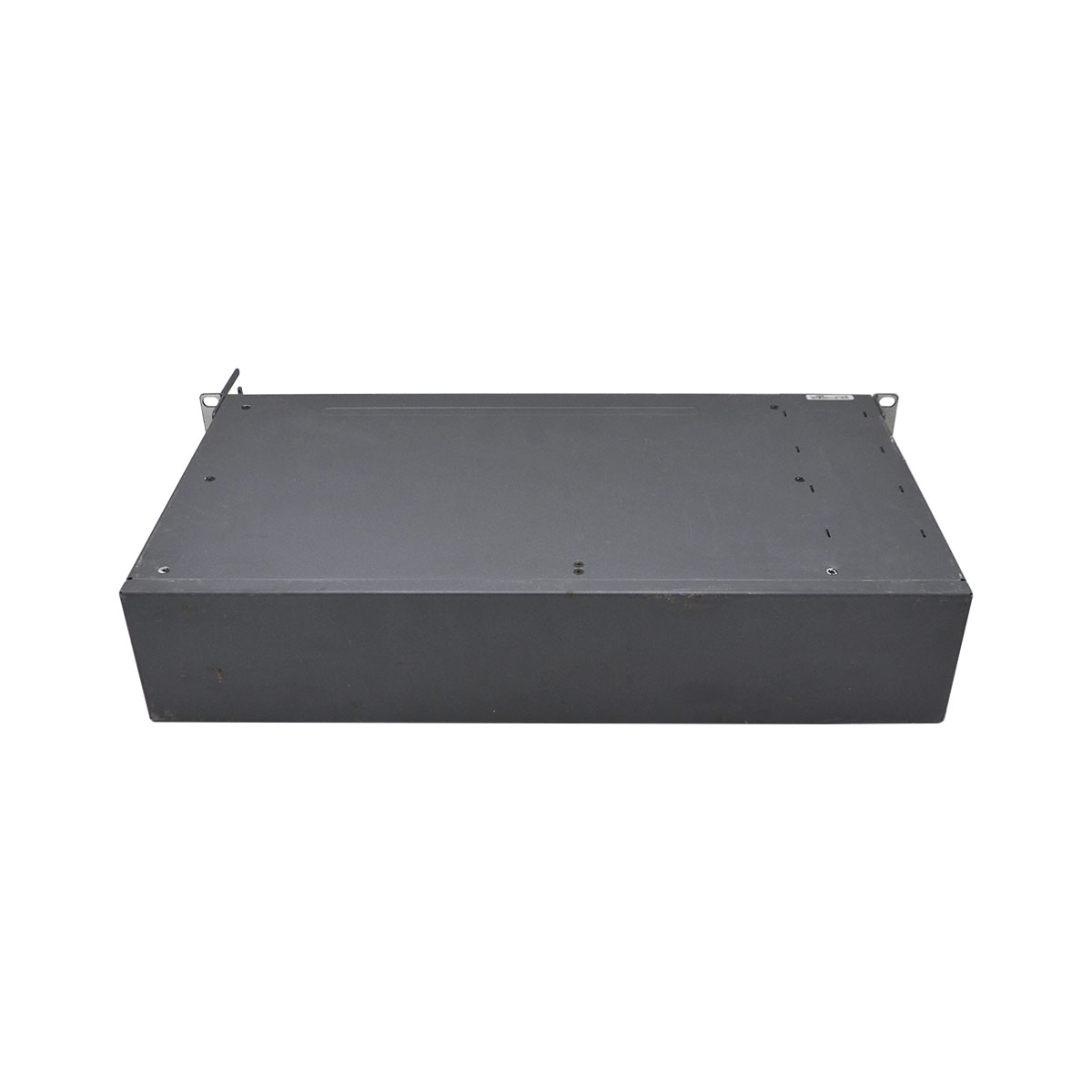

FiberHome OLT AN5516-04 Chassis,with 2*HSUC control and uplink boards, 1*PWRA AC power board

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
FiberHome AN5516-04 Overview



FiberHome AN5516-04 platform is an advanced FTTX, carrier level Optical line Terminal equipment with large capacity, which provides GPON/10G PON/P2P subscriber interfaces and GE/10GE uplink interfaces.

There are 3 different sizes of equipment to meet different application scenarios:



The AN5516-04 is small-sized optical line terminal equipment providing two service slots. It is applicable to access scenarios in sparsely-populated areas and can be deployed flexibly.



Bundle combination



The device will be equipped with 2*HSUC control and uplink boards, and 1*PWRA AC power board, but you can choose the appropriate bundle according to your actual request:

Control and uplink board Power supply board Pon board
HSUA: with 6 GE ports, can only be equipped with one-pieces PWRD, DC power board, can be equipped with 2 pieces GCOB/ECOB XP4A XPOA
HSUB: with 2 GE and 2 10GE ports, can be equipped with two pieces PWRA, AC power board, can only be equipped with one-pieces GC8B/EC8B XP8A XG8A
HSUC: with 4 GE ports, can be equipped with two pieces   GC4B/EC4B XS8C XS8A

Quick Specs



PON Unify platform for GPON/10G PON/P2P
Sharing service cards with AN5116-06B
Up to 32 PON ports per chassis
Flexible uplink card:2*10GE+2*GE/ 1*STM-1/ 32*E1
Synchronization High precision sync-Ethernet & 1588v2
1PPS+ToD output
Reliability features
Reliability Core card 1+1 redundancy
OSPF dual-homing
STP/RSTP/MSTP ring protection
Trunk/LACP for uplink protection

Fiberhome AN5516-04 Appearance and Structure



Fiberhome AN5516-04 Appearance and Structure

Number Name Function supported
1 Mounting ears Secures the subrack in a cabinet.
2 ESD protection earth ground fastener Connects with an ESD protection unit.
3 Subrack earth ground point  Connects with the subrack earth ground cable.
4 Fiber passage unit Faciptates routing and arranging of fibers and cables.
5 Fan unit Facilitates air cooling for the equipment.
6 Card area Accommodates cards to implement various functions of the equipment.
7 Fiber puller hanger Holds a fiber puller



Datasheet
FiberHome OLT AN5516-04 Datasheet



Item FiberHome AN5516-04
Backplane Exchange capacity 1.5Tbit/s
Control Board Exchange Capacity 960Gbit/s
Access Capacity 48*10G EPON
24*10G GPON
48*EPON
96*GPON
288*GE
Access Type Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
Board Supported GCOB - S1B
GCOB - T1A
GC8B - R1B
GC8B - R1C
EC8B - R1B
System Performance Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance
Operating Environment Temperature: -40℃~+65℃
Humidity:5%~95% (non-condensing
Power Supply Parameters -48V DC input Supports dual power protection
Working Voltage range  -38.4V~-72V
Related Products

Compare
Fiberhome AN5516 series product comparison



Item AN5516-01/AN5516-06B AN5516-04 AN5516-06
Backplane Exchange capacity 3.2Tbit/s 1.5Tbit/s 720Gbit/s
Control Board Exchange Capacity 1920 Gbit/s 960Gbit/s 512Gbit/s
Access Capacity 128*10G EPON 48*10G EPON 16*10G EPON
64*10G GPON 24*10G GPON 8*10G GPON
128*EPON 48*EPON 16*EPON
256*GPON 96*GPON 32*GPON
768*GE 288*GE 96*GE
Access Type Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
System Performance Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance
Dimension: 620*620*440mm 600*430*230mm 550*460*380mm
Operating Environment Temperature: -25℃~+55℃ Temperature: -40℃~+65℃ Temperature: -40℃~+65℃
Humidity:5%~95% (non-condensing) Humidity:5%~95% (non-condensing Humidity:5%~95% (non-condensing
Power Supply Parameters -48V DC input Supports dual power protection Working Voltage range  -38.4V~-72V -48V DC input Supports dual power protection -48V DC input
Working Voltage range  -38.4V~-72V Supports dual power protection
110V-220V AC input  Working Voltage range  -38.4V~-72V
Support 220V / 110V AC input
