GCOB C+

Fiberhome GCOB 16 ports Gpon service card with SFP C+

SKU: GCOB C+ Category:

Description

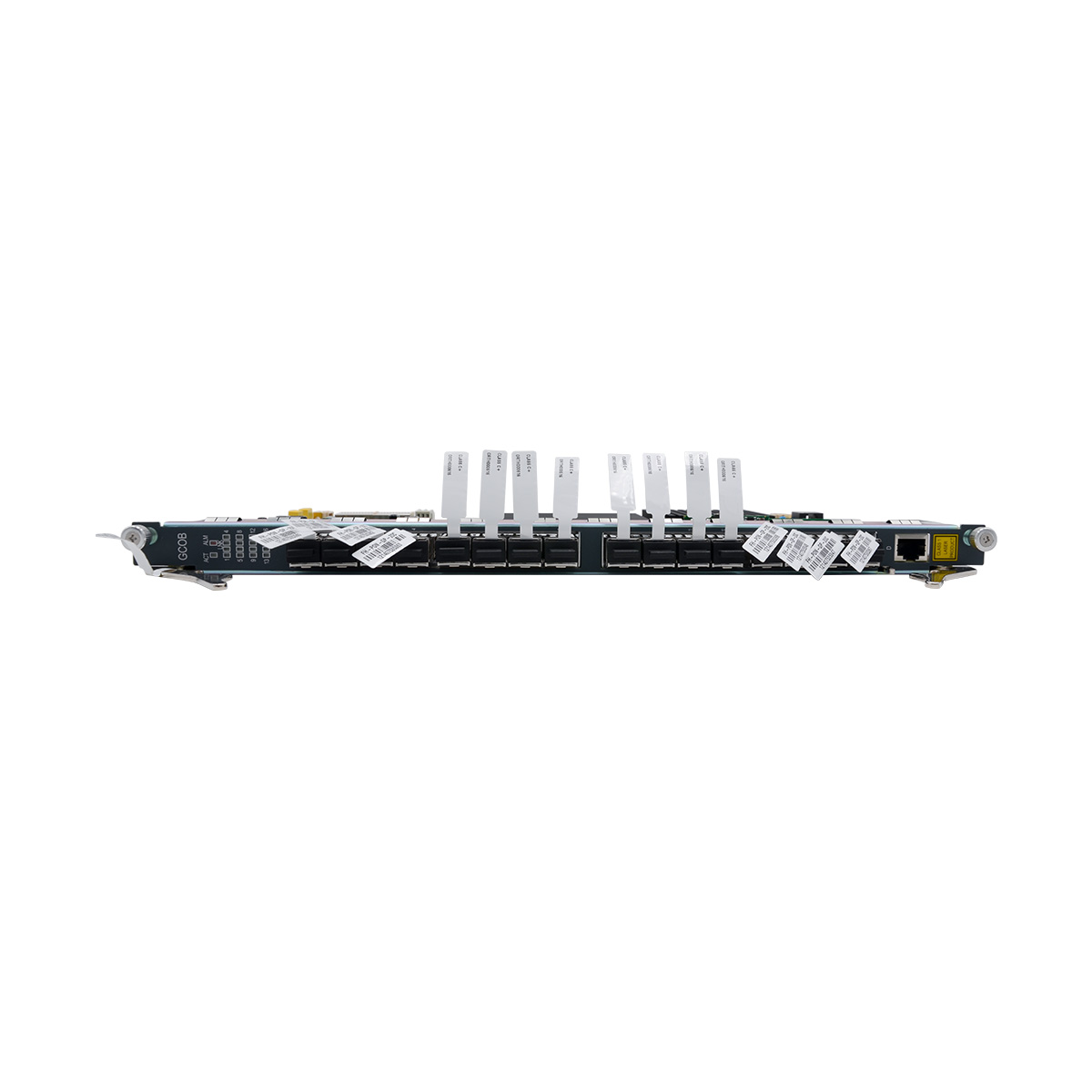

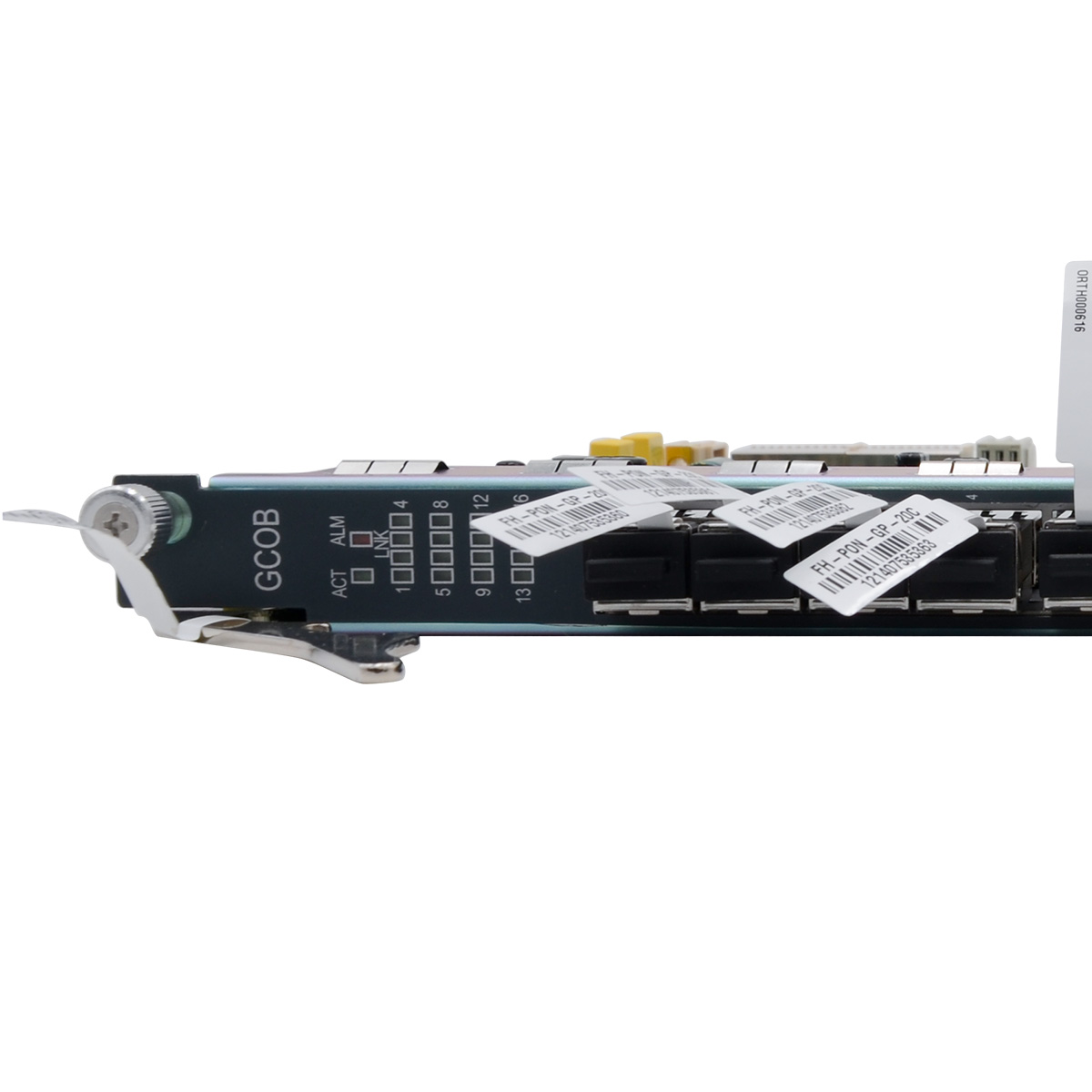

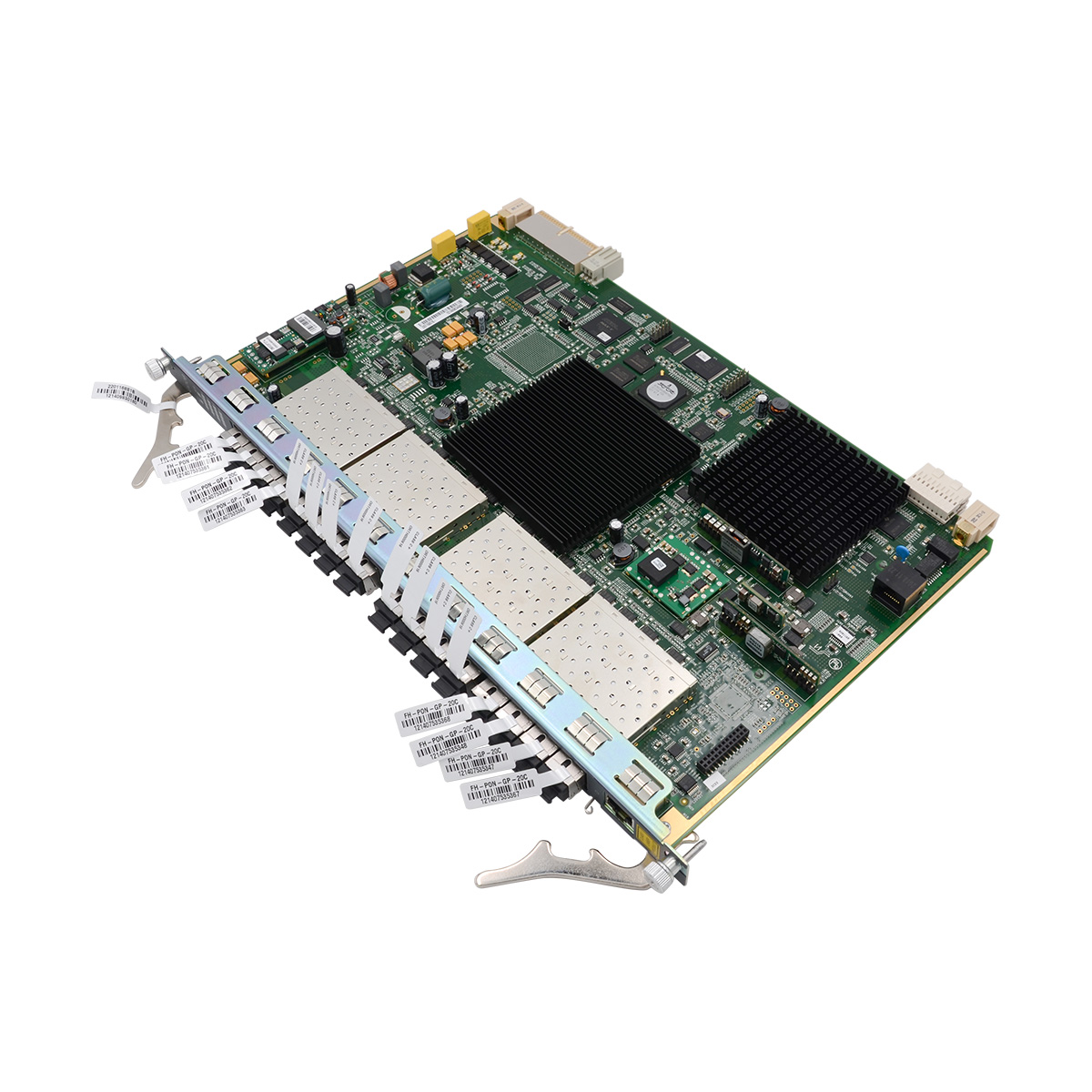

Fiberhome GCOB C+ Card Overview

The GCOB C+ is an 16-port GPON OLT interface board, which can be used in the Fiberhome AN5516 serie OLT: AN5516-04, AN5516-06, AN5116-06B/AN5516-01.

It works with the optical network terminal (ONT) to provide GPON access service.

Also, it can work with some optical network unit (ONU) or MxU to provide GE/FE Ethernet service.

This board comes with C+ class SFP, but you can choose with Gpon SFP B+ or C++.

If comes with B+, supports ONT/ONU access of up to 1024 subscribers.
if comes with C+/C++, supports ONT/ONU access of up to 2048 subscribers.

The GCOB card has two version: T1A and S1B. S1B is the mainstream version of the market, and the T1A can only be used in the latest chassis. If a specific version is required, please contact at [email protected]

Fiberhome GCOB C+ Datasheet
Item Fiberhome GCOB C+
Service ports
GPON Port 16-GPON Port
GPON SFP Module Specification
Type C+ Module
Interface type SC/PC
Transmitter Signal nominal rate 2.5 Gbit/s ± 100 ppm
Wavelength range 1480 nm to 1500 nm
Mean launched power (maximum) +7 dBm
Mean launched power (minimum) +3 dBm
Average launched power of OFF transmitter -39 dBm
Extinction ratio (minimum) +9 dB
Receiver Signal nominal rate 1.25 Gbit/s ± 100 ppm
Wavelength range 1260 nm to 1360 nm
Maximum receiving sensitivity -30 dBm
Minimum overload optical power -8 dBm
Power Consumption ≤ 50W
MTBF (hour) 146606.07
MTBF (year) 16.74
Failure Rate (ppm) 6.821

Additional information

Weight 3.0000 kg
Dimensions 50.0000 × 32.0000 × 8.0000 cm
PN. Model Description
2200012R1C GC8B R1C C+ Fiberhome GC8B 8 ports Gpon service card R1C version with SFP C+
2200740R1B EC8B R1B PX20+ Fiberhome OLT EC8B R1B 8 ports Epon service card with SFP PX20+
GTGH GTGH ZTE ZXA10 C320/ C350/ C300/ 16-port GPON OLT interface board GTGH with C+/C++ module
025KFD10 H806GPFD Huawei 16-port GPON OLT interface board with B+, C+ or C++ SFP module, apply to Huawei MA5608T/MA5680T/MA5683T

Service card comparison: Huawei vs. ZTE vs. Nokia vs. Fiberhome

Brand Model GPON XG-PON XGS-PON XG-PON&GPON Combo XGS-PON&GPON Combo Port
Huawei MA5608T/83T/80T XGBC 4
GPBD/GPBH XGBD 8
GPFD 16
MA5800 X2/X7/X15/X17 XGHD TWED/XSHD/TWHD CGID/CGHD CSHD 8
GPLF/GPSF/GPUF/GPHF XGSF XSHF CGHF CSHF 16
ZTE C300/C320/C350 GTGO GTXO GTTO GTBO 8
GTGH 16
C600/C650/C620/C680 GFGH GFXH GFTH GFBN/GFBH GFCH 16
Nokia/Alcatel & Lucent Nokia/AL 7360 FGXT-A 4
NGLT-C/NGLT-A FWLT-P FWLT-B 8
FGLT-A/FGLT-B 16
FiberHome AN5516-01/04/06 CG8B 8
GCOB 16
AN6000 GPOA 16
GX8A 8
GM8A / GM8B 8
GMOA 16
GNOA 16
