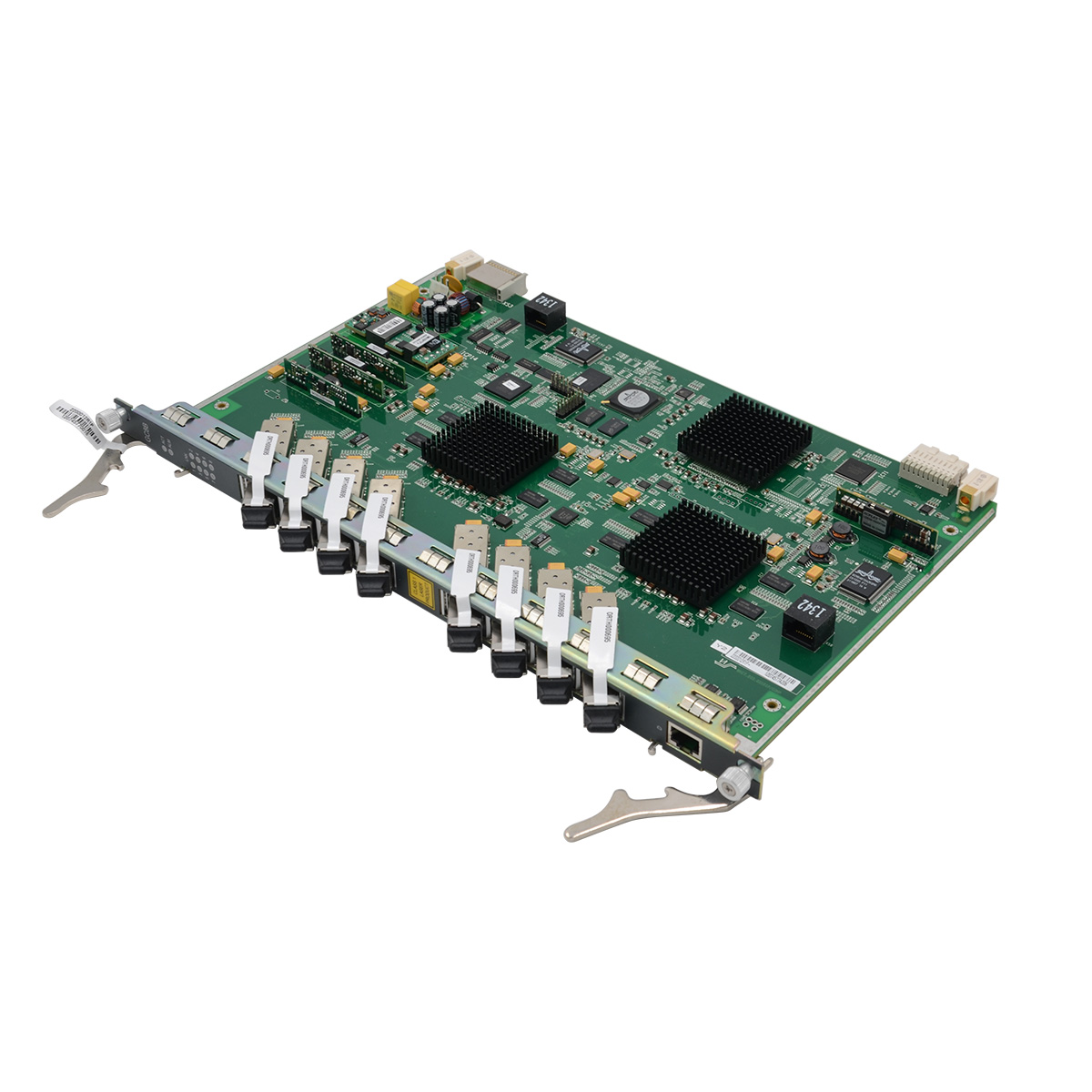

GC8B R1C C+

Fiberhome GC8B 8 ports Gpon service card R1C version with SFP C+

SKU: 2200012R1C Category:

Description

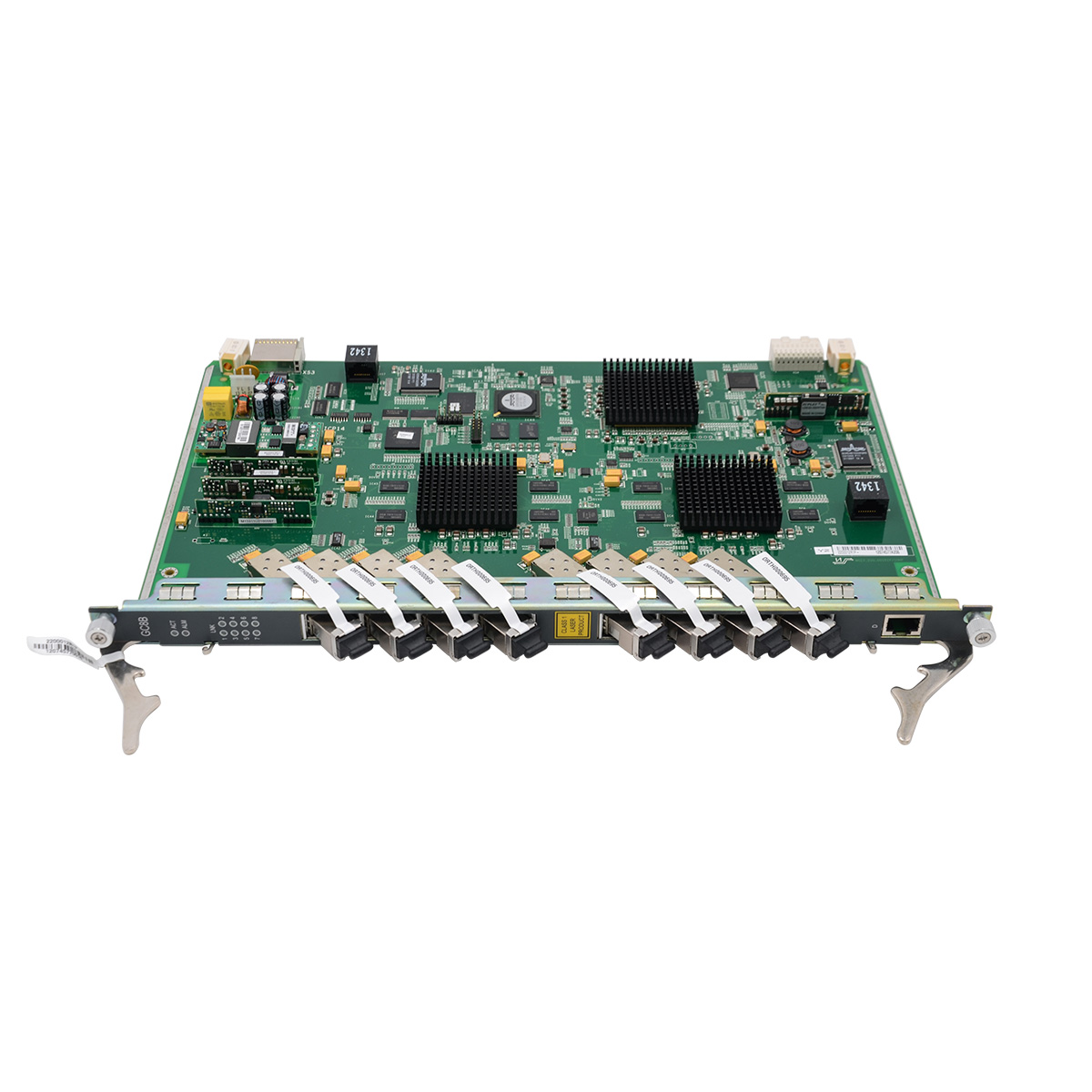

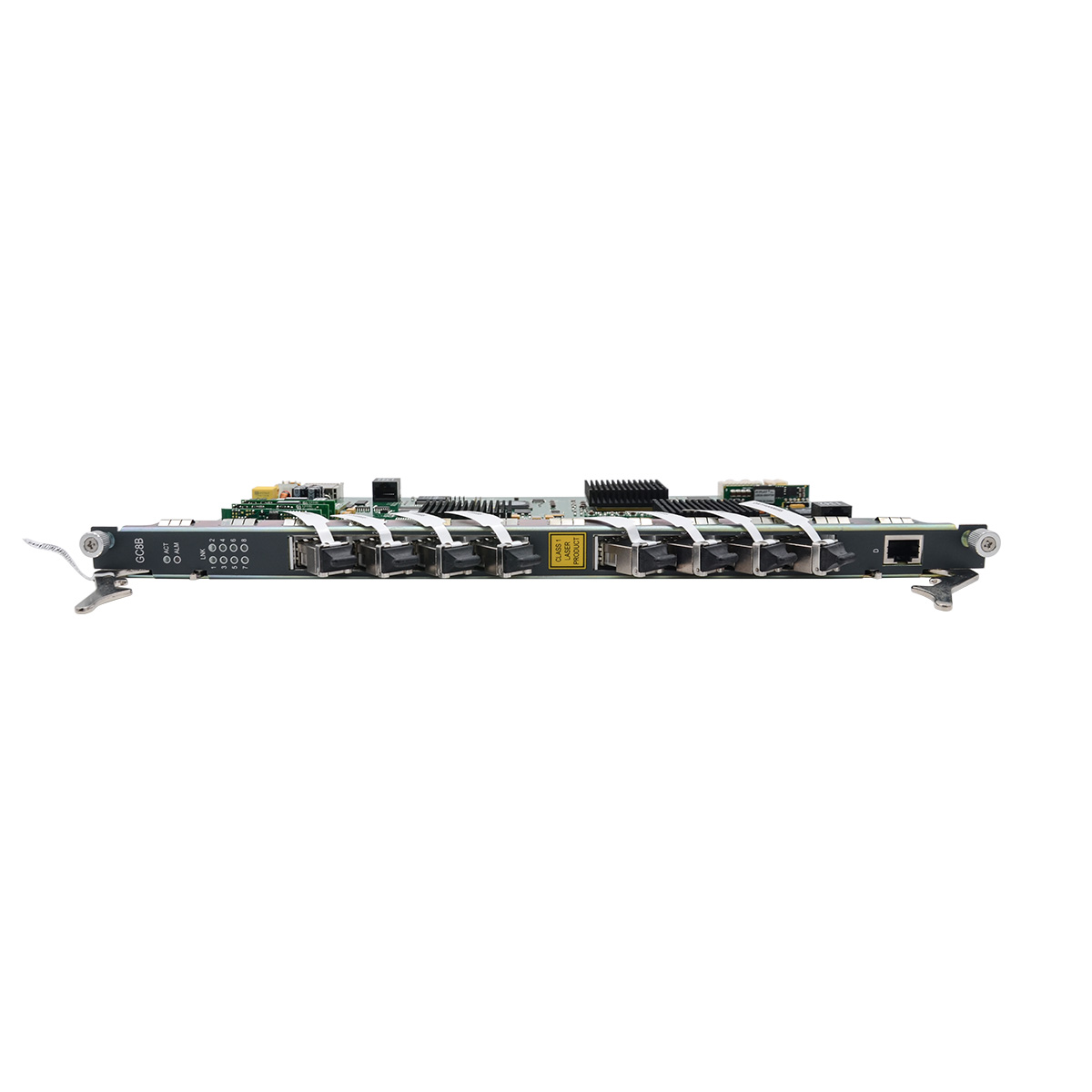

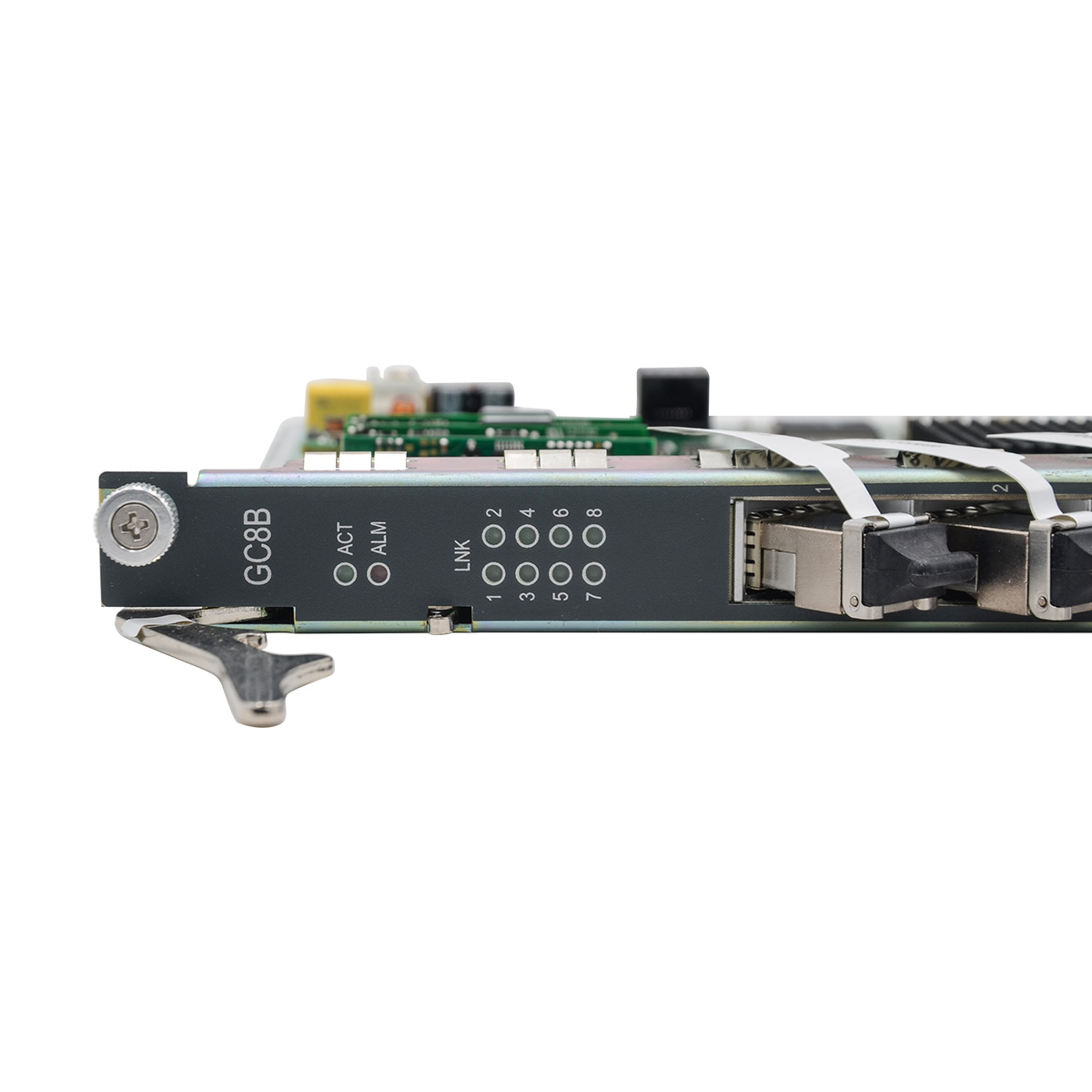

Fiberhome GC8B C+ Card Overview

The GC8B C+ is an 8-port GPON OLT interface board, which can be used in the Fiberhome AN5516 serie OLT: AN5516-04, AN5516-06, AN5116-06B/AN5516-01.

GCOB card can works with the optical network terminal (ONT) to provide GPON access service.

Also, GC8B card can work with some optical network unit (ONU) or MxU to provide GE/FE Ethernet service.

This GC8B board comes with C+ class SFP, but you can choose with Gpon SFP B+ or C++.

If GC8B card come with B+, supports ONT/ONU access of up to 512 subscribers.
if GC8B card comes with C+/C++, supports ONT/ONU access of up to 1024 subscribers.

The GC8B card has two version: R1B and R1C. GC8B R1B is the mainstream version of the market.  If a specific version is required, please contact CSD@telecomate.com.

Fiberhome GC8B C+ Datasheet
Item Fiberhome GC8B C+
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module
Interface type SC/PC
Transmitter Signal nominal rate 2.5 Gbit/s ± 100 ppm
Wavelength range 1480 nm to 1500 nm
Mean launched power (maximum) +7 dBm
Mean launched power (minimum) +3 dBm
Average launched power of OFF transmitter -39 dBm
Extinction ratio (minimum) +9 dB
Receiver Signal nominal rate 1.25 Gbit/s ± 100 ppm
Wavelength range 1260 nm to 1360 nm
Maximum receiving sensitivity -30 dBm
Minimum overload optical power -8 dBm
Power Consumption ≤ 50W
MTBF (hour) 146606.07
MTBF (year) 16.74
Failure Rate (ppm) 6.821

Additional information

Weight 3.0000 kg
Dimensions 50.0000 × 32.0000 × 8.0000 cm
PN. Model Description
GCOB C+ GCOB C+ Fiberhome GCOB 16 ports Gpon service card with SFP C+
2200740R1B EC8B R1B PX20+ Fiberhome OLT EC8B R1B 8 ports Epon service card with SFP PX20+
03022REU H807GPBD Huawei GPBD 8-port GPON OLT Interface Board with B+/C+/C++ module, apply to Huawei MA5608T/MA5680T/MA5683T
GTGO GTGO ZTE ZXA10 C320/C350/C300 8-port GPON OLT interface card GTGO with C+/C++ module

Service card comparison: Huawei vs. ZTE vs. Nokia vs. Fiberhome

Brand Model GPON XG-PON XGS-PON XG-PON&GPON Combo XGS-PON&GPON Combo Port
Huawei MA5608T/83T/80T XGBC 4
GPBD/GPBH XGBD 8
GPFD 16
MA5800 X2/X7/X15/X17 XGHD TWED/XSHD/TWHD CGID/CGHD CSHD 8
GPLF/GPSF/GPUF/GPHF XGSF XSHF CGHF CSHF 16
ZTE C300/C320/C350 GTGO GTXO GTTO GTBO 8
GTGH 16
C600/C650/C620/C680 GFGH GFXH GFTH GFBN/GFBH GFCH 16
Nokia/Alcatel & Lucent Nokia/AL 7360 FGXT-A 4
NGLT-C/NGLT-A FWLT-P FWLT-B 8
FGLT-A/FGLT-B 16
FiberHome AN5516-01/04/06 GC8B 8
GCOB 16
AN6000 GPOA 16
GX8A 8
GM8A / GM8B 8
GMOA 16
GNOA 16
