Huawei MA5800 10G PON Solution

Huawei 10G PON Solution – High-Speed Connectivity for Next-Generation Networks

Huawei’s 10G PON solution delivers high bandwidth, low latency, and reliable connectivity to meet the growing demands of modern networks. Designed to support bandwidth-intensive applications and diverse enterprise services, it provides a scalable and efficient solution for network upgrades and future business growth.

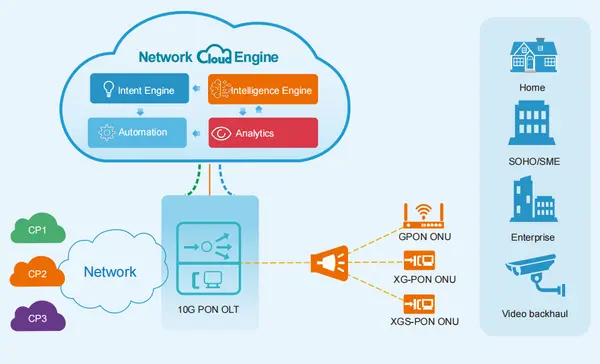

Huawei 10G PON Solution

Best TCO solution

XG(S)-PON Combo Save Rack Space

3-in-1 mode, decreasing the TCO 25%

Green design, full compliant with CoC V6, saving energy 50%

Agile Development

No or less ODN change

Quickly configuration data migration

ONU zero touch provisioning

Only the SFP optical module is replaced during the upgrade;

User-Centric Experience

Predictive O&M and remote troubleshooting

E2E video diagnostics and second-level demarcation for less home-visiting

Huawei MA5800 10G PON Board
Board Type Model Ports Forwarding Rate Mode Upstream Downstream Max. Split Ratio
Flex-PON H901FLHF 16 200 Gbit/s Asymmetric / Symmetric GPON: 1.244 Gbit/s; XGS-PON: 9.953/2.488 Gbit/s GPON: 2.488 Gbit/s; XGS-PON: 9.953 Gbit/s GPON 1:128; XG(S)-PON 1:256
XG-PON H901XGHD 8 80 Gbit/s Asymmetric 2.488 Gbit/s 9.953 Gbit/s 1:256
XG-PON H901XGSF 16 80 Gbit/s Asymmetric 2.488 Gbit/s 9.953 Gbit/s 1:256
XGS-PON H901TWED 8 80 Gbit/s Asymmetric / Symmetric 9.953/2.488 Gbit/s 9.953 Gbit/s 1:64
XGS-PON H901XSHF 16 160 Gbit/s Asymmetric / Symmetric 9.953/2.488 Gbit/s 9.953 Gbit/s 1:256
XGS-PON H902XSHD 8 80 Gbit/s Asymmetric / Symmetric 9.953/2.488 Gbit/s 9.953 Gbit/s 1:256
XGS-PON H902TWHD 8 80 Gbit/s Asymmetric / Symmetric 9.953/2.488 Gbit/s 9.953 Gbit/s 1:256
PON Combo H901CGID 8 80 Gbit/s Asymmetric GPON: 1.244 Gbit/s; XG-PON: 2.488 Gbit/s GPON: 2.488 Gbit/s; XG-PON: 9.953 Gbit/s GPON 1:128; XG-PON 1:256
PON Combo H901CGHF 16 200 Gbit/s Asymmetric GPON: 1.244 Gbit/s; XG-PON: 2.488 Gbit/s GPON: 2.488 Gbit/s; XG-PON: 9.953 Gbit/s GPON 1:128; XG-PON 1:256
PON Combo H901CSHF / H902CSHF 16 200 Gbit/s Asymmetric / Symmetric GPON: 1.244 Gbit/s; XGS-PON: 9.953/2.488 Gbit/s GPON: 2.488 Gbit/s; XGS-PON: 9.953 Gbit/s GPON 1:128; XG(S)-PON 1:256
PON Combo H902CGHD 8 100 Gbit/s Asymmetric GPON: 1.244 Gbit/s; XG-PON: 2.488 Gbit/s GPON: 2.488 Gbit/s; XG-PON: 9.953 Gbit/s GPON 1:128; XG-PON 1:256
PON Combo H902CSHD 8 100 Gbit/s Asymmetric / Symmetric GPON: 1.244 Gbit/s; XGS-PON: 9.953/2.488 Gbit/s GPON: 2.488 Gbit/s; XGS-PON: 9.953 Gbit/s GPON 1:128; XG(S)-PON 1:256

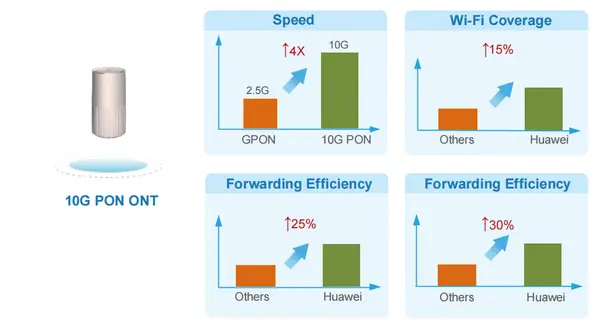

10G PON ONT Enhances Home Experience

10GPON

ONT Model UNI / Configuration
HN8346V5 XG-PON ONT, 4GE + 1POT + 2USB + 2.4G/5G WiFi
HN8145V (black) XG-PON ONT, 4GE + 1POTS + 1USB + 2.4G/5G WiFi
HN8245Q XG-PON ONT, 4GE + 1POTS + 2USB + 2.4G/5G WiFi
HN8546X6 XG-PON ONT, 4GE + 2USB + 1POT, 2.4G/5G WiFi 6
EN8145X6 XG-PON ONT, 4GE + 1USB + 1POT, 2.4G/5G WiFi 6
V175 XG-PON ONT, 4GE + 1USB + 1POT, 2.4G/5G WiFi 6
