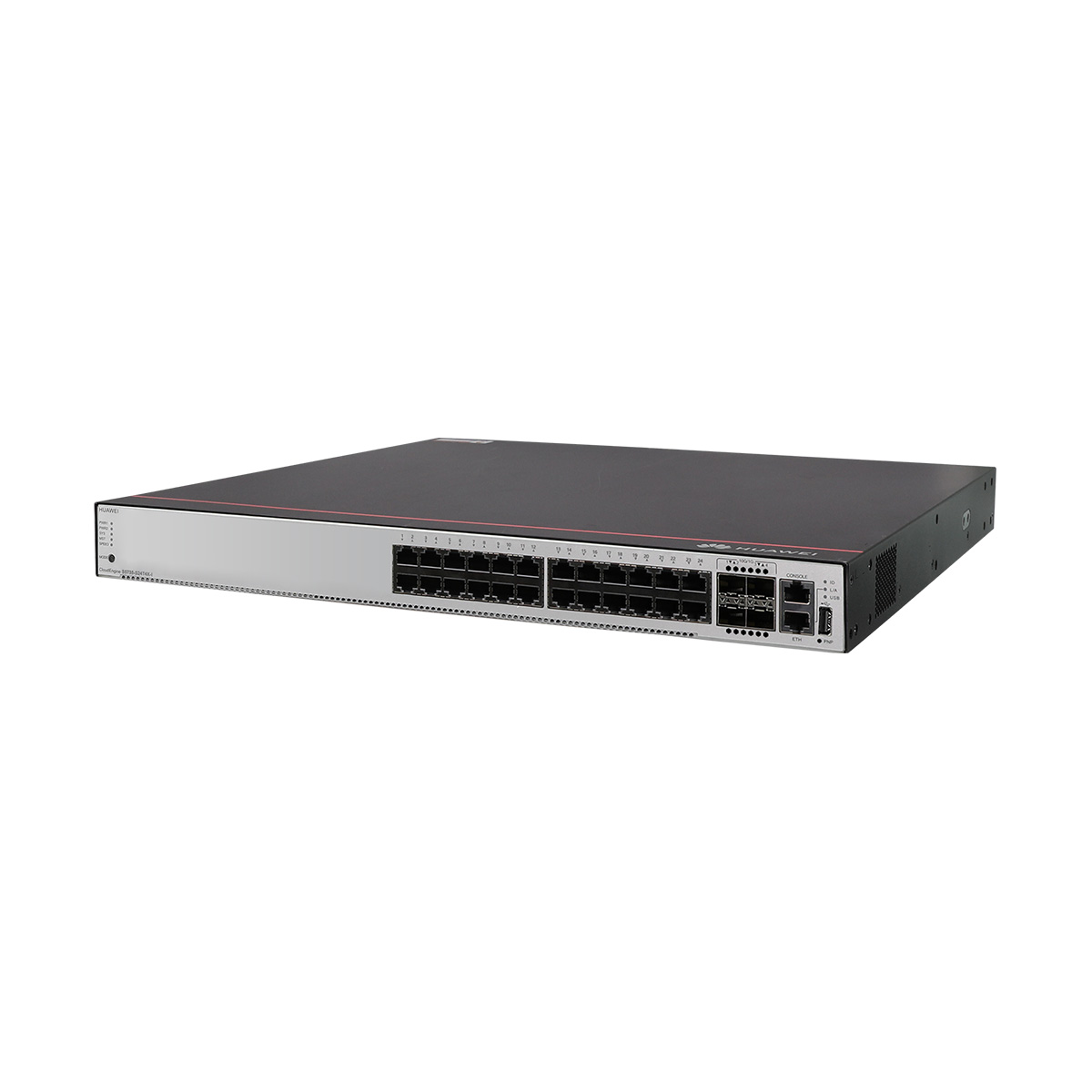

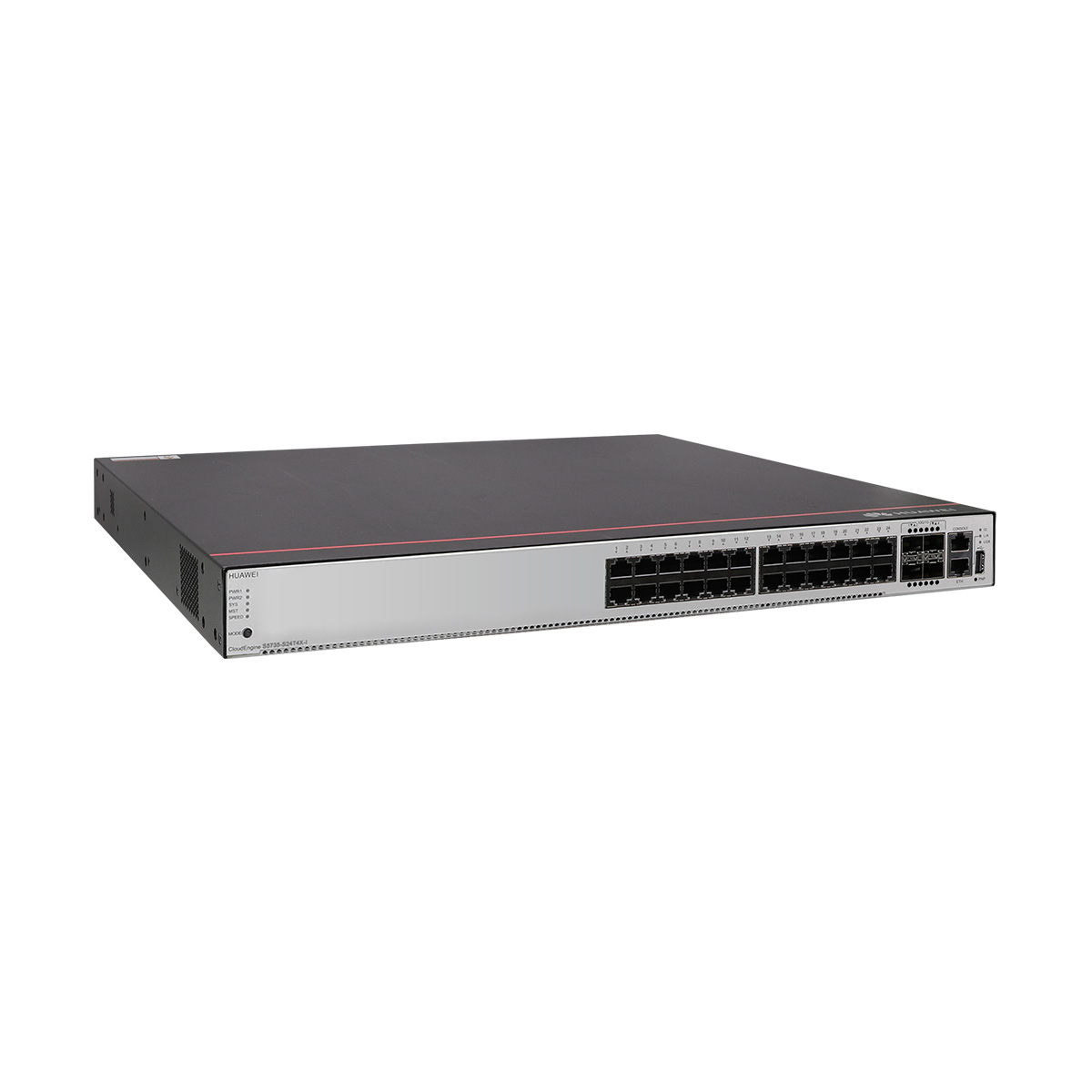

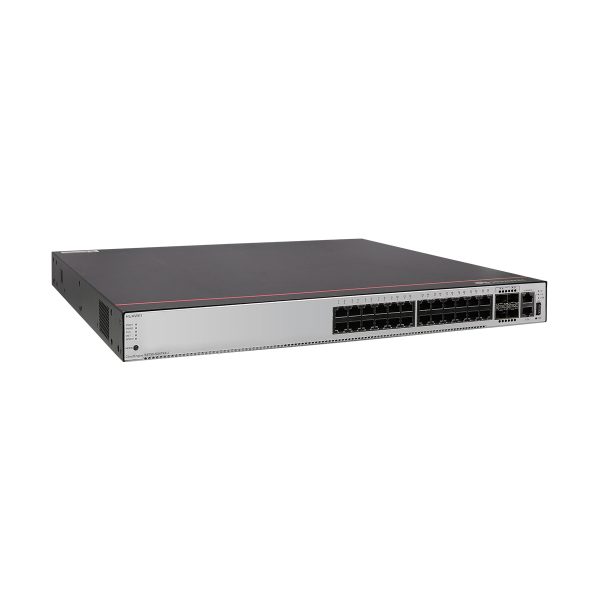

S5735-S24T4X-I
Huawei S5735-S24T4X-I switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, without power supply equipped
- Description
- DATASHEET
- Packing info
- Download
- Reviews (2)
Description
S5735-S24T4X-I overview
S5735-S24T4X-I is the Huawei S5735-S switch with 24 x 10/100/1000BASE-T ports and 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.
Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: [email protected]
S5735-S24T4X-I quick specs
24 10/100/1000BASE-T ports, 4 10 GE SFP+ ports
Forwarding performance is 95.2 Mpps
Switching capacity is 128 Gbps/336 Gbps

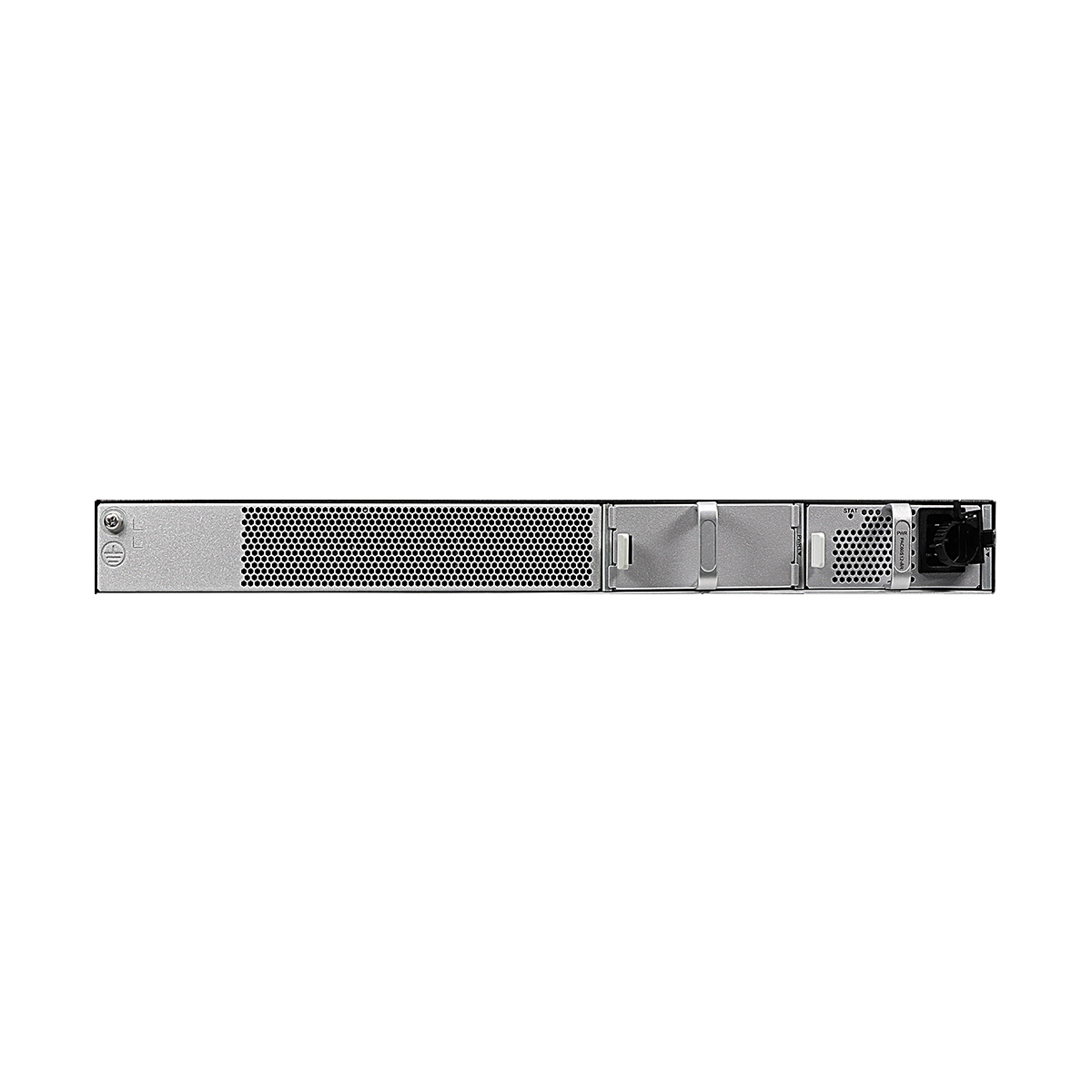

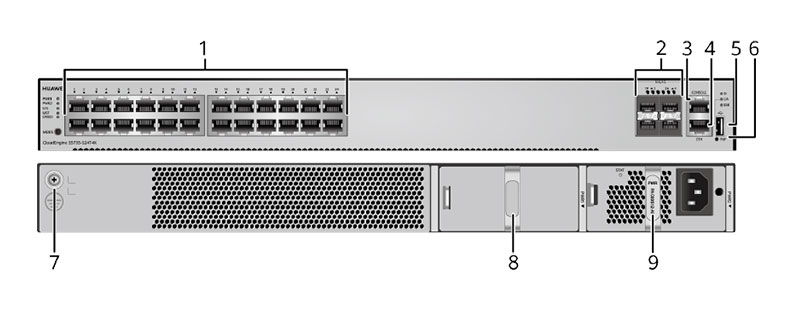

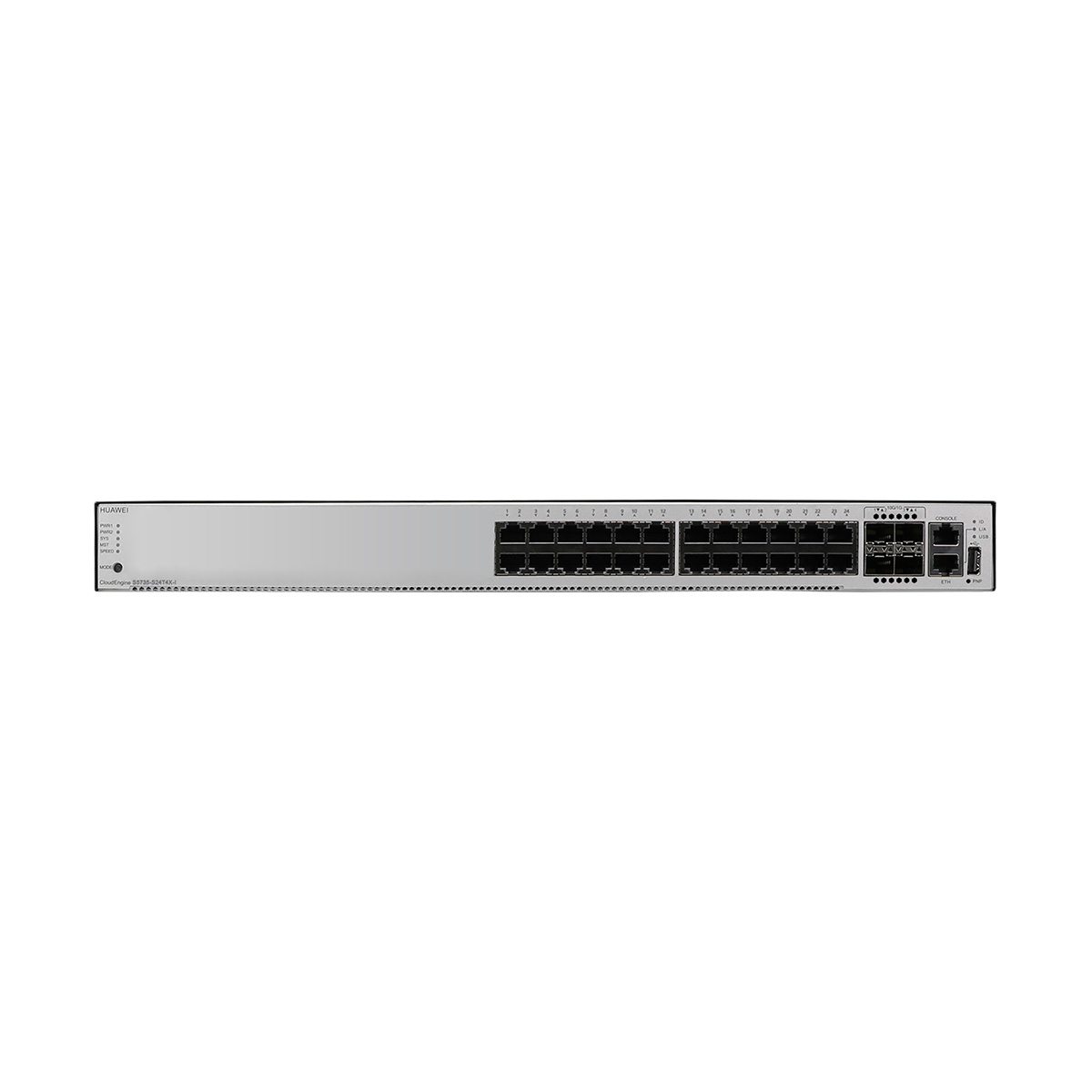

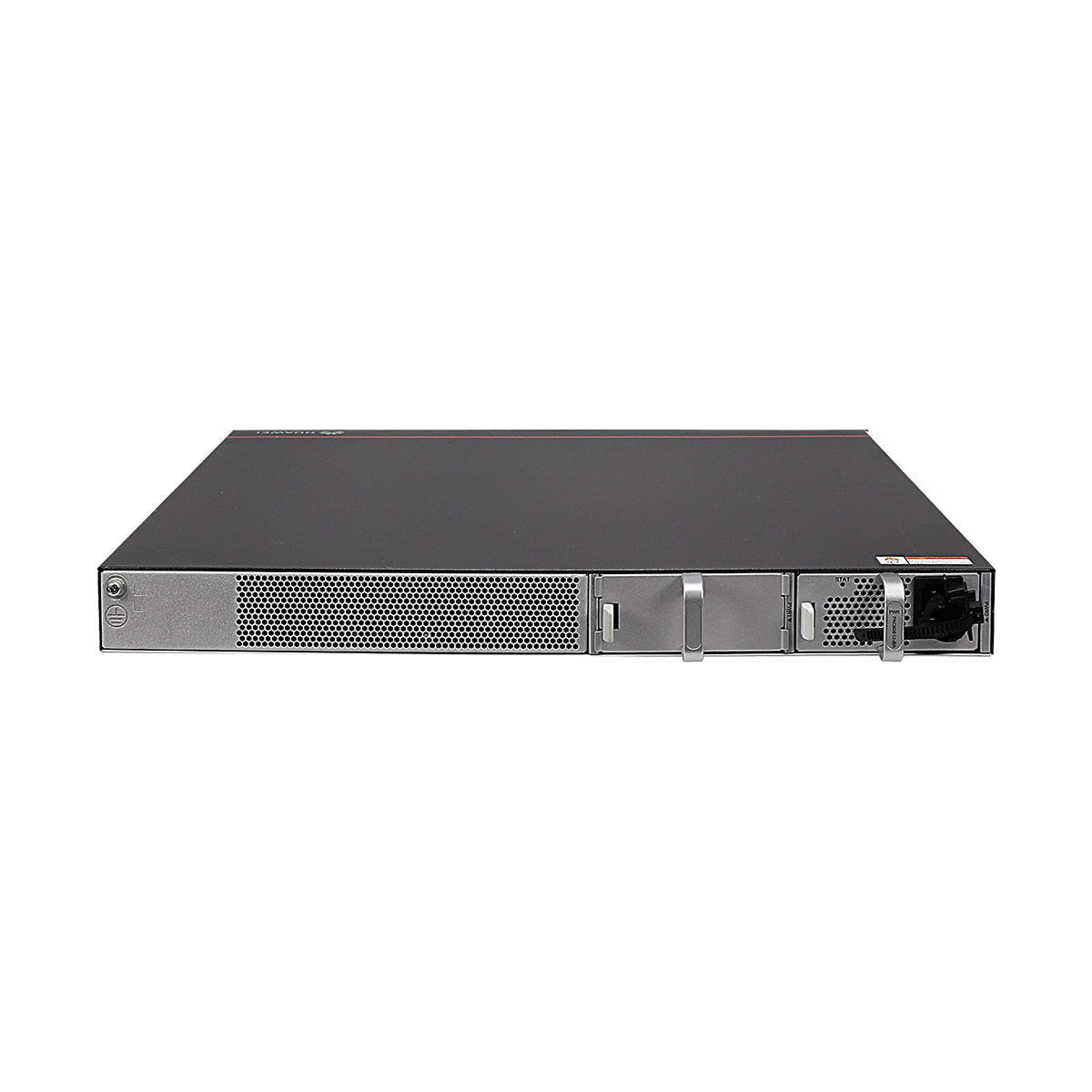

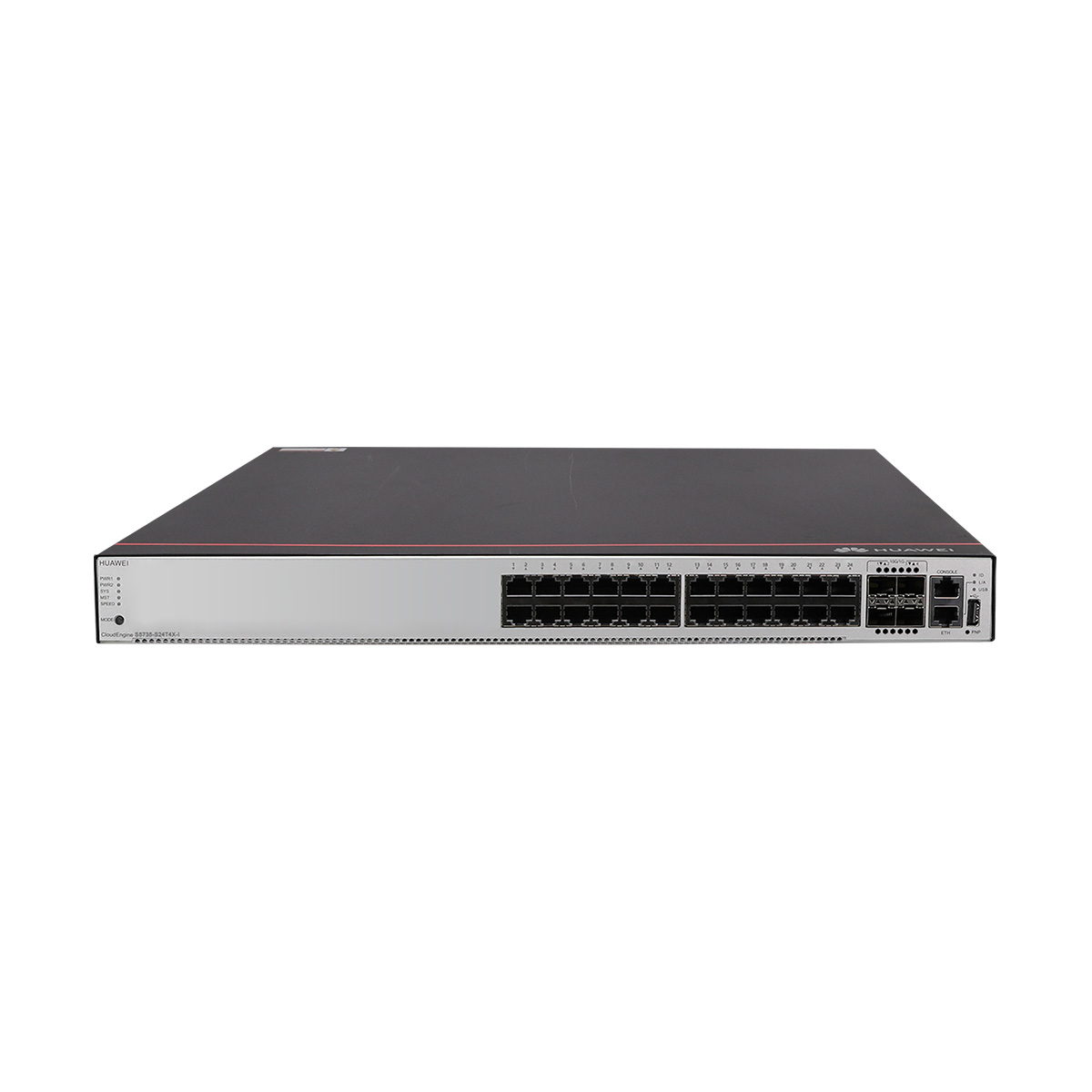

S5735-S24T4X-I appearance and structure
| 1 | Twenty-four 10/100/1000BASE-T ports | 6 | One PNP button |
| 2 | Four 10GE SFP+ ports | 7 | Ground screw |
| 3 | One console port | 8 | Power module slot 1 |
| 4 | One ETH management port | 9 | Power module slot 2 |
| 5 | One USB port |
| Item | S5735-S24T4X-I | |
| Fixed port | 24 10/100/1000BASE-T ports | |
| 4 10GE SFP+ ports | ||
| Forwarding performance | 95.2 Mpps | |
| Switching capacity | 128 Gbps/336 Gbps | |
| Management port | ETH management port | Supported |
| Console port (RJ45) | Supported | |
| USB port | USB 2.0 | |
| CPU | Frequency | 1000 MHz |
| Core | 4 | |
| Storage | Memory (RAM) | 1 GB |
| Flash memory | Hardware: 512MB, of which 306MB is available for users | |
| Power supply system | Power supply type | 60 W AC |
| Power supply redundancy | 1+1 NOTE: the backup power supply is optional. | |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz | |
| High-Voltage DC input: 240 V DC | ||
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz | |
| High-Voltage DC input: 190 V DC to 290 V DC | ||
| Maximum input current | 60 W AC: 2 A | |
| Maximum power consumption (100% throughput, full speed of fans) | 55.2 W | |
| Typical power consumption (30% of traffic load) | 36.8 W | |
| Tested according to ATIS standard EEE enabled | ||
| Minimum power consumption | 23.7 W | |
| Environment parameters | Short-term operating temperature | 0-1800m altitude: -40°C to +70°C |
| 1800-5000m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220m. | ||
| Long-term operating temperature | 0-1800m altitude: -40°C to +65°C | |
| 1800-5000m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220m. | ||
| Reliability | MTBF (year)2 | 62.88 |
| MTTR (hour) | 2 | |
| Availability | > 0.99999 | |
| Physical specifications | Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U | |
| Chassis weight (including packaging) | 7.21 kg | |
Additional information
| Weight | 10.0000 kg |
|---|---|
| Dimensions | 45.0000 × 45.0000 × 5.0000 cm |
