459

TN12NS201

PN 03071093
$459.00 Bulk Purchase

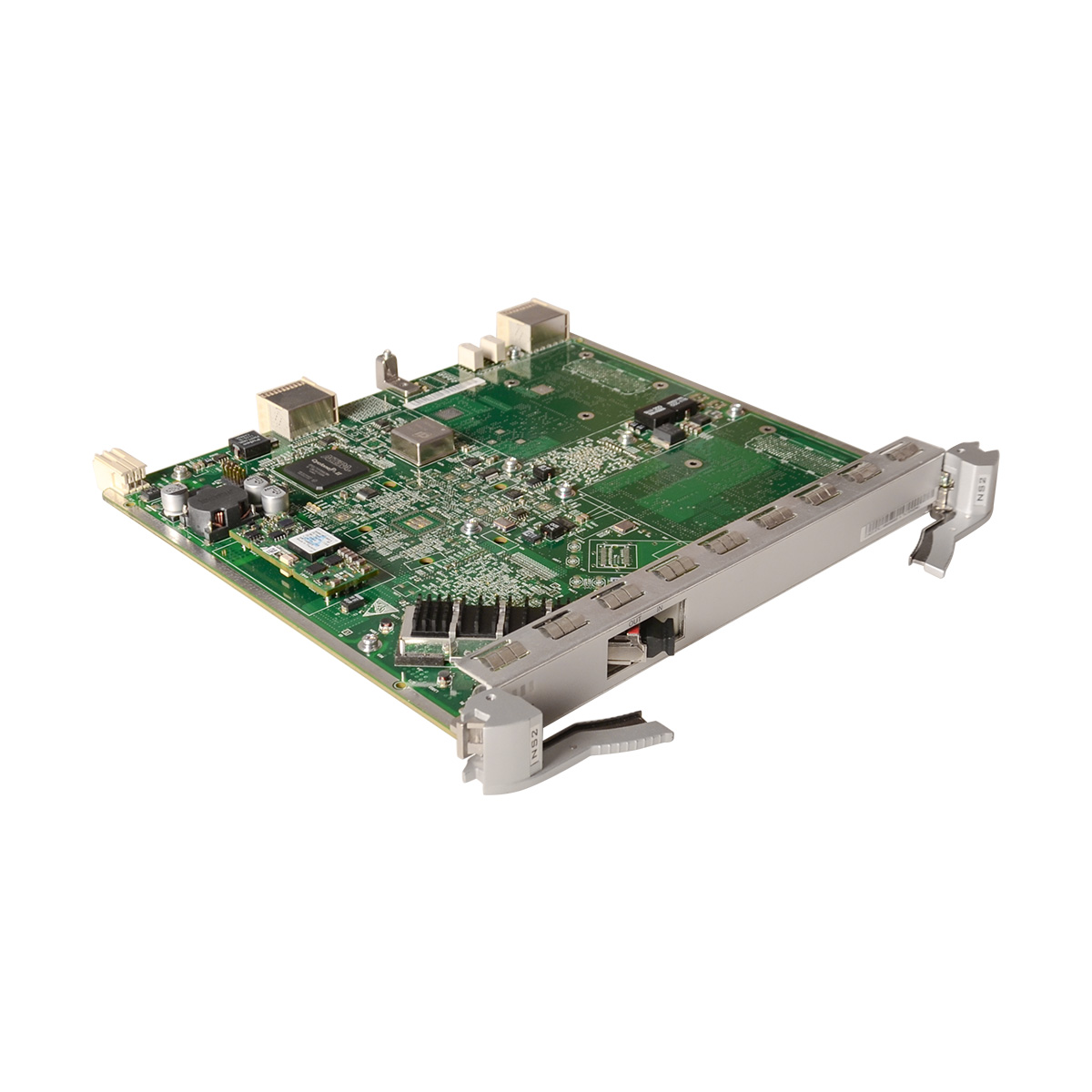

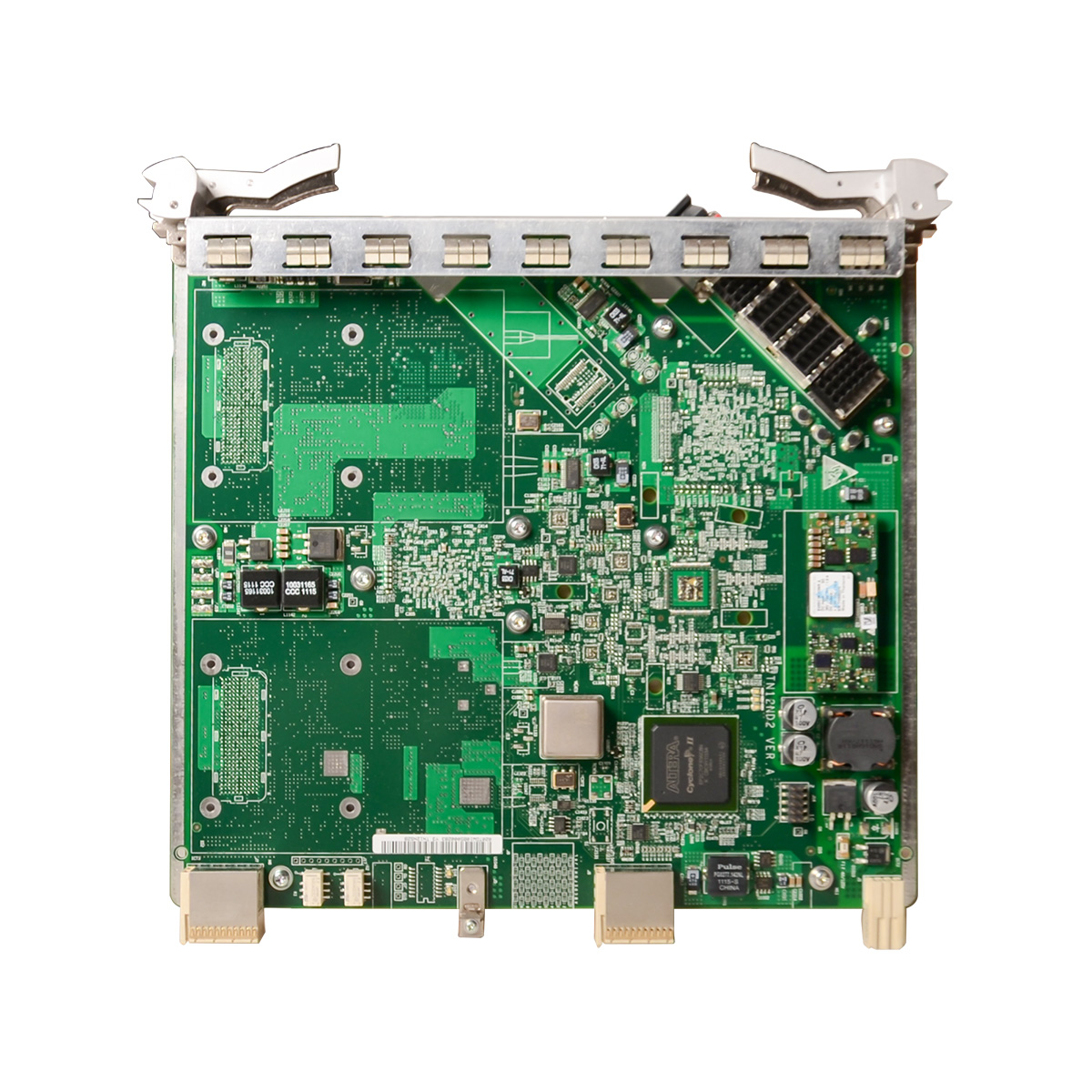

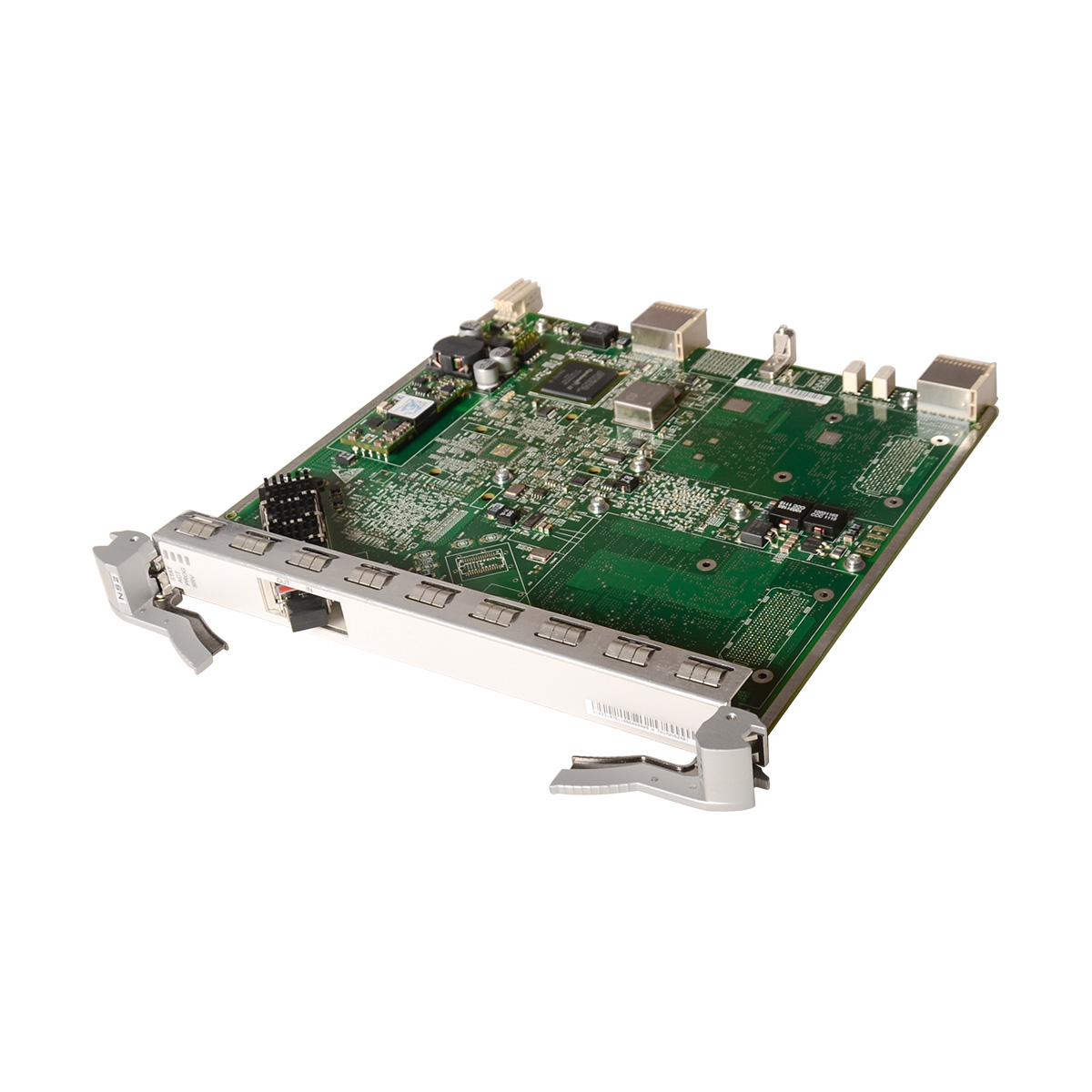

Huawei OSN6800 WDM Line Service Processing Board, 10G Fixed Even Wavelength

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
WDM-side fixed optical module specifications (fixed wavelengths)
Optical Module Type 800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP
Line code format NRZ
Transmitter parameter specifications at point S
Maximum mean launched power(dBm) 2
Minimum mean launched power(dBm) -3
Minimum extinction ratio(dB) 9
Operating frequency range(THz) 192.10 to 196.05
Center frequency deviation(GHz) ±10
Maximum -20 dB spectral width(nm) 0.3
Minimum side mode suppression ratio(dB) 35
Dispersion tolerance(ps/nm) 800
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1250 to 1600
Receiver sensitivity, EOL(FEC on)(dBm) -16
Minimum receiver overload(FEC on)(dBm) 0
Maximum reflectance -27
Mechanical Specifications
Dimensions of front panel 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.2
Power Consumption(W) Typical Power Consumption:38.8
Maximum Power Consumptiona:43.4
Reviews 2
  1. Czech
    80%
    We bought ten of these boards, one has a little scratches during test, hope can be more careful next time.
  2. Pakistan
    100%
    The package is super good and covered with a waterproof film, and ship together with the test reports and some masks, very good.
