Huawei OptiX OSN 9800 TNG2SRAPXF01 Extended C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit

Description

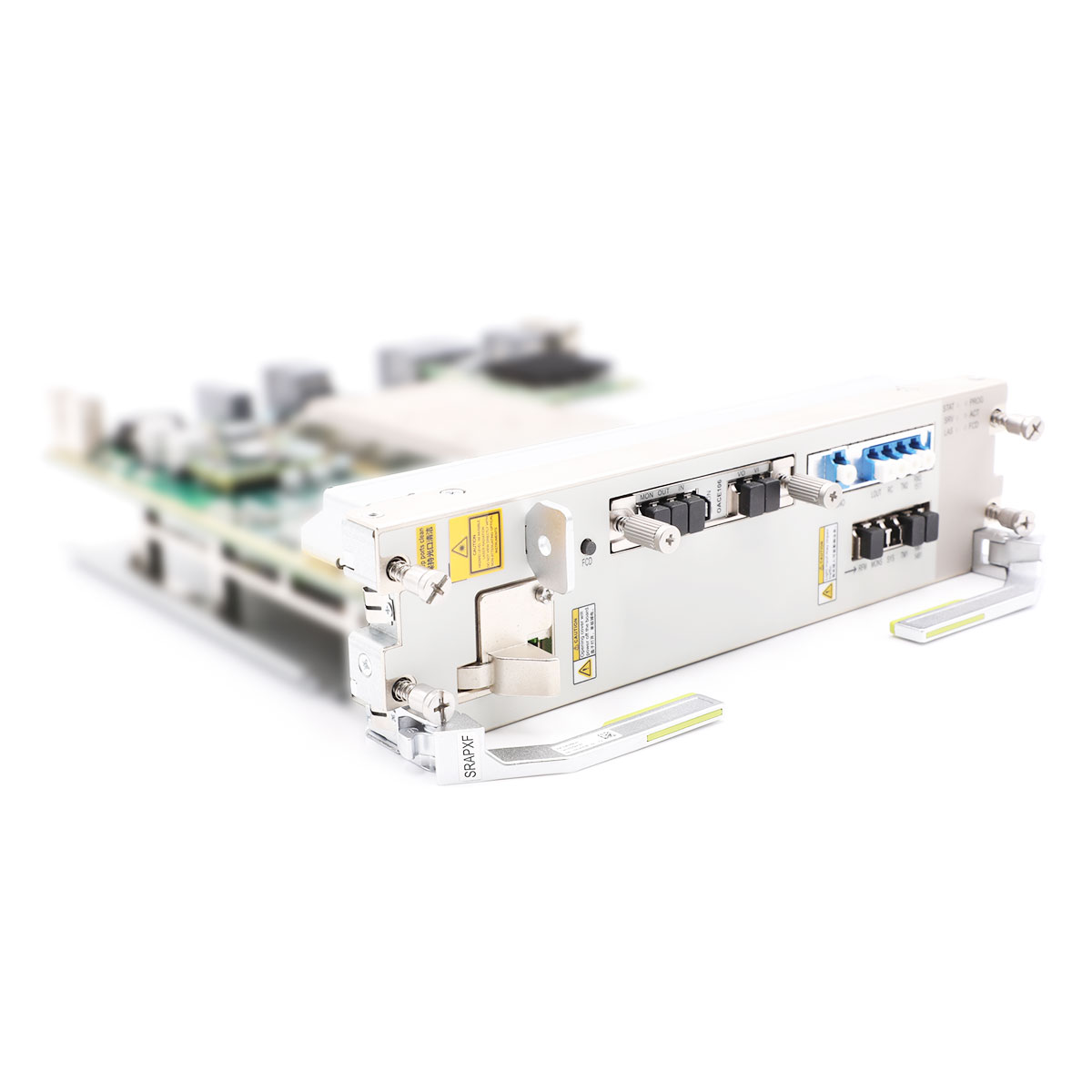

TNG2SRAPXF01 overview



TNG2SRAPXF01 Extended C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

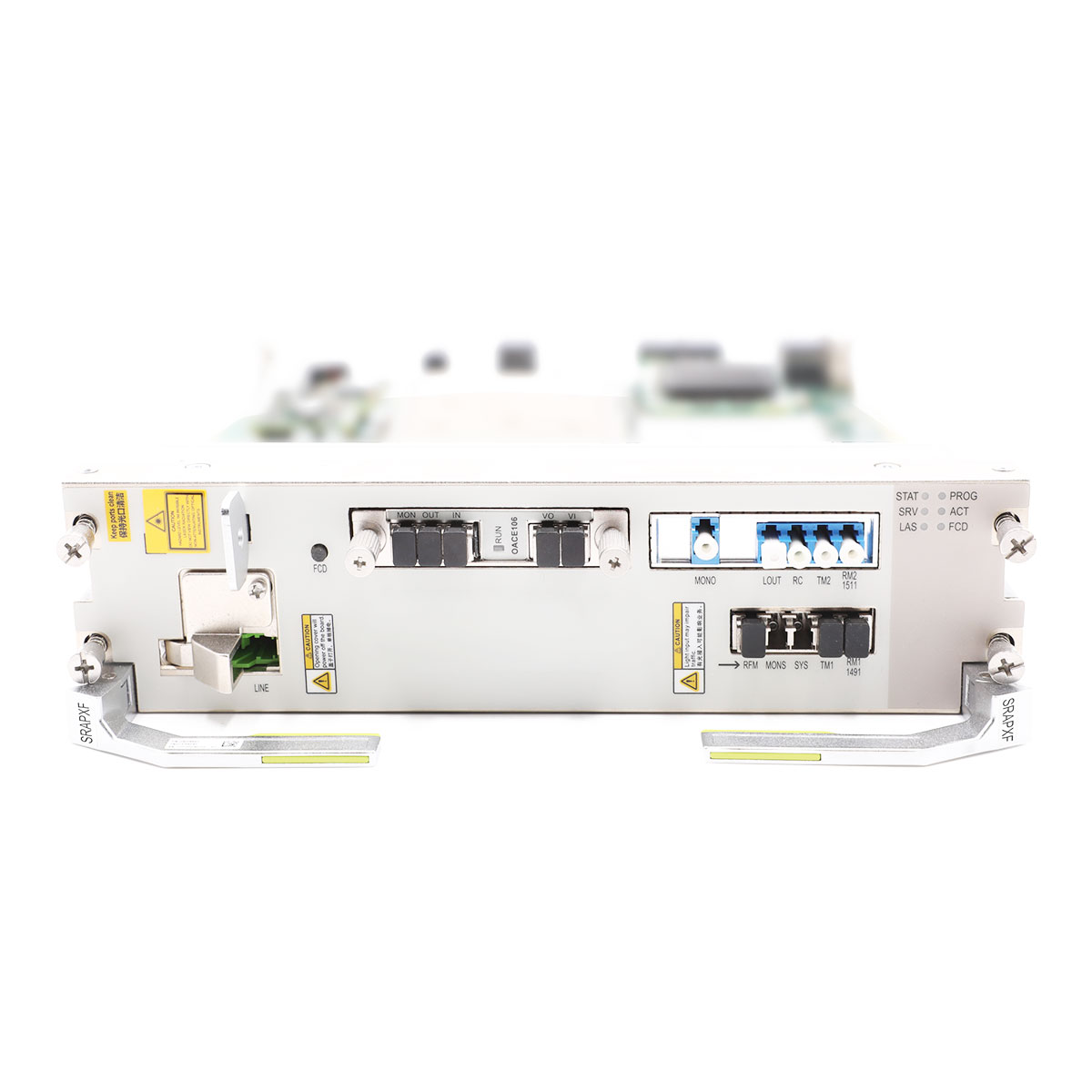

Front panel of the TNG2SRAPXF01 board

TNG2SRAPXF01

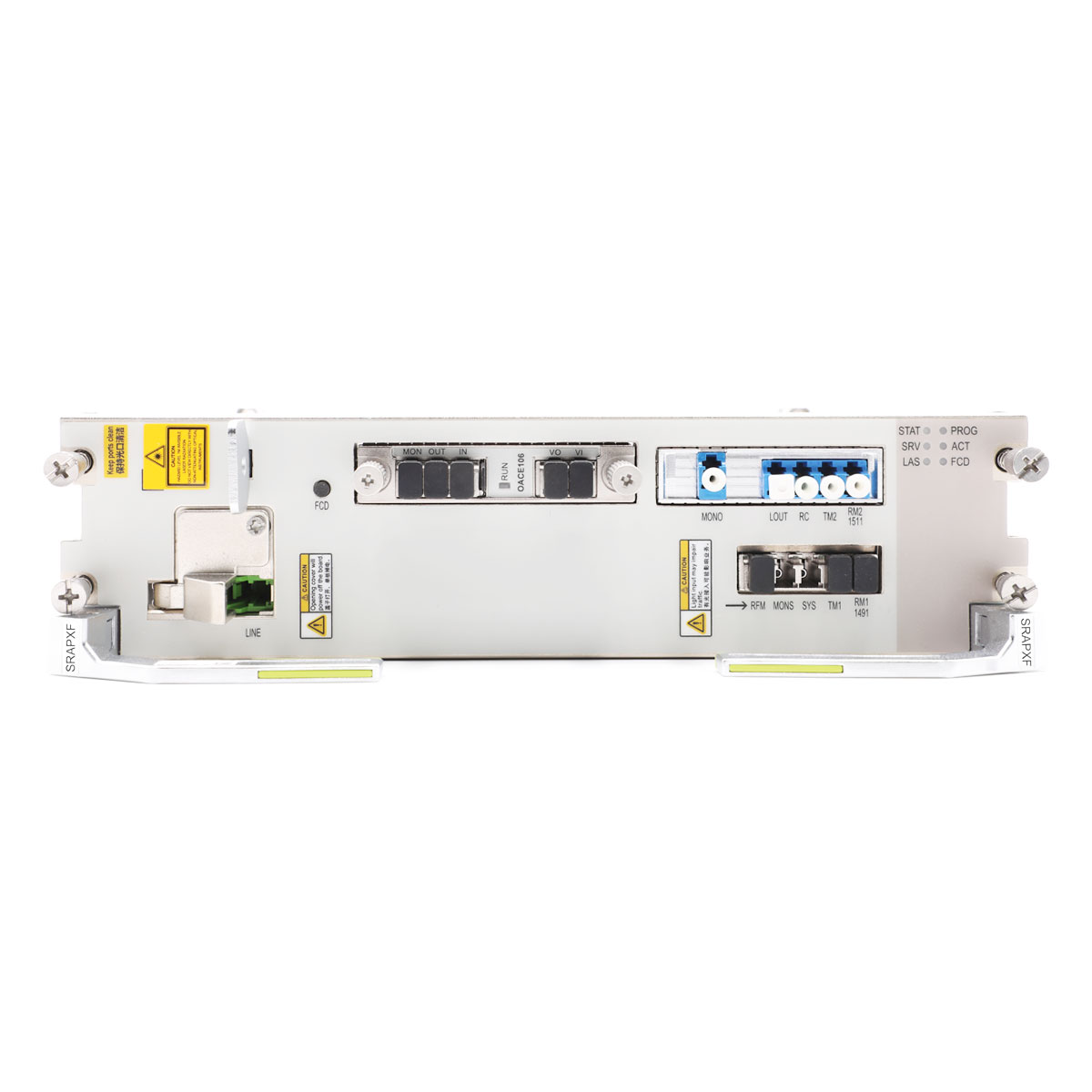

Front panel of the TNG2SRAPXF01 board



Valid slots for the TNG2SRAPXF01 board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 2 (IU1, IU2) IU2
(IU2, IU3) IU3
(IU3, IU4) IU4
(IU4, IU5) IU5
OptiX OSN 9800 M12 2 (IU1, IU2) IU2
(IU2, IU3) IU3
(IU3, IU4) IU4
(IU4, IU5) IU5
(IU5, IU6) IU6
(IU6, IU7) IU7
(IU7, IU8) IU8
(IU8, IU9) IU9
(IU9, IU10) IU10
(IU10, IU11) IU11
(IU11, IU12) IU12
(IU12, IU13) IU13
OptiX OSN 9800 M24 2 (IU1, IU2) IU2
(IU2, IU3) IU3
(IU3, IU4) IU4
(IU4, IU5) IU5
(IU5, IU6) IU6
(IU7, IU8) IU8
(IU8, IU9) IU9
(IU9, IU10) IU10
(IU10, IU11) IU11
(IU11, IU12) IU12
(IU13, IU14) IU14
(IU14, IU15) IU15
(IU15, IU16) IU16
(IU16, IU17) IU17
(IU17, IU18) IU18
(IU19, IU20) IU20
(IU20, IU21) IU21
(IU21, IU22) IU22
(IU22, IU23) IU23
(IU23, IU24) IU24
Item TNG2SRAPXF01
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module
  • Supports 96 wavelengths optical amplifier modules:
    • TN52OACE101/TN52OACE105/TN52OACE106/TN52OACE107/TN52OACE108
    • TNG3OACE101/TNG3OACE105/TNG3OACE106/TNG3OACE107/TNG3OACE108
  • Supports 120 wavelengths optical amplifier modules:
    • TNG1OACU21S/TNG1OACU25S/TNG1OACU32S
    • TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H
    • TNG2OACU23U/TNG2OACU27U/TNG2OACU34U
    • TNG2OBCU22S
NOTE:
The default Channel Number Mode of the board is C120 Mode. When a 96-wavelength OA module is configured on a board, a SUBCARD_MISMATCH alarm is reported. Set the correct number of system wavelengths for the OA module based on specific parameters.
Basic EDFA function
  • Integrates with a backward Raman unit and a pluggable EDFA unit to amplify Super C-band optical signals, covering wavelengths within the range of 1524.3 nm to 1572.5 nm.
  • Supports transmission without working with an electrical regenerator for various spans.
  • Generates high-power pump light of multiple wavelengths to supply power for amplifying signal light in transmission fibers.
  • Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when a fiber is inserted into or removed from the LINE port.
  • Integrates with a VOA module to adjust optical power.
EDFA working mode The EDFA unit supports the gain locking and power locking modes.
  • In the gain locking mode, the gain of the EDFA unit is tunable and users can query the actual gain of the EDFA unit. The gain locking mode is enabled by default.
  • The power locking mode applies to the dummy light scenario in which the output optical power of the EDFA unit needs to be locked.
Gain locking technology The EDFA unit of the board has the gain locking function. To be specific, when one or more channels are added or dropped, or optical signals of certain channels fluctuate, the signal gains of other channels are not affected.
EDFA gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power.
  • TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power.
  • TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power.
  • TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
Transient control The EDFA module and raman amplification module inside the board have the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion.
Basic Raman function
  • Integrates with a backward Raman unit and a pluggable EDFA unit to amplify extended C-band optical signals, covering wavelengths within the range of 1528.8 nm to 1567.6 nm.
  • Supports transmission without working with an electrical regenerator for various spans.
  • Generates high-power pump light of multiple wavelengths to supply power for amplifying signal light in transmission fibers.
  • Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when a fiber is inserted into or removed from the LINE port.
  • Integrates with a VOA module to adjust optical power.
Raman working mode
  • The Raman optical module supports the gain locking, maximum gain, and pump power locking modes.
  • The gain locking mode applies to the multi-span or single-short-span scenarios that use G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B fibers. In this mode, the gain of the Raman optical module is tunable, and users can query the actual gain of the Raman optical module.
  • The maximum gain mode applies to the ultra-long single-span scenarios that use G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B fibers. In this mode, the Raman optical module automatically adjusts its pump power to ensure that its gain reaches the maximum value. In addition, users can query the actual gain of the Raman optical module.
  • The pump power locking mode applies to the scenarios that use any fibers except G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B, or to the scenarios in which the pump power of the Raman optical module needs to be adjusted manually.
Raman gain adjustment
  • Supports continuous gain adjustment within the allowed gain ranges based on input optical power. The following uses the SRAPXF board specifications plugged with the TN52OACE108 module as an example:
  • G.652 fiber: 22 dB to 32 dB
  • LEAF/G.653/TWRS/TWC/TW+ fiber: 22 dB to 30 dB
  • G.654B fiber: 18 dB to 26 dB
  • G.656/Teralight/LS/G.654A fibers: 22 dB to 32 dB
NOTE:
Users can separately configure the gain adjustment point only for the Raman amplifier and EDFA on the NMS.
Safe turn-on of the Raman laser
  • When the Raman laser is turned on, the OTDR meter function is automatically enabled to detect fiber connections and therefore ensure that the laser is properly started, avoiding fiber burning due to inappropriate fiber connections.
  • If the Raman laser fails to be turned on, the line fiber quality monitoring function can be used to further identify fault points.
NOTE:
When the SRAPXF board is connected to an ROP, ERPC or CRPC board, the safe Raman laser turn-on, and quick Raman laser shutdown functions cannot be normally used. In this case, you must disable the safe Raman laser turn-on and quick Raman laser shutdown functions on the NMS.
Quick shutdown of the Raman laser Supports the function of quickly turning off the Raman laser. When fiber removal, fiber cut, or serious fiber bend occurs on an optical port within 500 m, the pump light of the Raman laser can be shut down within 100 ms. When the distance is greater than 500 m, the implementation of this function is related to the actual line fiber quality.
NOTE:
When the SRAPXF board is connected to an ROP, ERPC or CRPC board, the safe Raman laser turn-on, and quick Raman laser shutdown functions cannot be normally used. In this case, you must disable the safe Raman laser turn-on and quick Raman laser shutdown functions on the NMS.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Operating wavelength of the OSC
  • TM1/RM2: 1504.5nm to 1520nm
  • TM2/RM1: 1478nm to 1497.5nm
Line fiber quality monitoring
  • The line fiber quality monitoring function can be used on the NMS. Monitoring figures and data are displayed on the NMS.
  • The SRAPXF board can also work with the AST2 board to use the line fiber quality monitoring function on the NMS. In this case, the SRAPXF board supports online and offline line fiber quality monitoring.
  • This function requires the FD system software license.
Optical Doctor Supported
Optical-layer ASON Supported
Alarm and performance event monitoring
  • Detects the pump driving current, back facet current, pump cooling current, temperature of the pump laser and the ambient temperature of the board.
  • The EDFA optical module can detect and report optical power.
  • The Raman amplifier module supports return loss detection.

Functions and Features of the TNG2SRAPXF Board (FIU)

Basic function
  • Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process.
  • Achieves commissioning-free and compensation-free for IEEE 1588v2 signals in the single-fiber bidirectional scenario with dual-OSC configuration.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 3.50 kg
  • 7.72 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNG2SRAPXF01
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module
  • Supports 96 wavelengths optical amplifier modules:
    • TN52OACE101/TN52OACE105/TN52OACE106/TN52OACE107/TN52OACE108
    • TNG3OACE101/TNG3OACE105/TNG3OACE106/TNG3OACE107/TNG3OACE108
  • Supports 120 wavelengths optical amplifier modules:
    • TNG1OACU21S/TNG1OACU25S/TNG1OACU32S
    • TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H
    • TNG2OACU23U/TNG2OACU27U/TNG2OACU34U
    • TNG2OBCU22S
NOTE:
The default Channel Number Mode of the board is C120 Mode. When a 96-wavelength OA module is configured on a board, a SUBCARD_MISMATCH alarm is reported. Set the correct number of system wavelengths for the OA module based on specific parameters.
Basic EDFA function
  • Integrates with a backward Raman unit and a pluggable EDFA unit to amplify Super C-band optical signals, covering wavelengths within the range of 1524.3 nm to 1572.5 nm.
  • Supports transmission without working with an electrical regenerator for various spans.
  • Generates high-power pump light of multiple wavelengths to supply power for amplifying signal light in transmission fibers.
  • Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when a fiber is inserted into or removed from the LINE port.
  • Integrates with a VOA module to adjust optical power.
EDFA working mode The EDFA unit supports the gain locking and power locking modes.
  • In the gain locking mode, the gain of the EDFA unit is tunable and users can query the actual gain of the EDFA unit. The gain locking mode is enabled by default.
  • The power locking mode applies to the dummy light scenario in which the output optical power of the EDFA unit needs to be locked.
Gain locking technology The EDFA unit of the board has the gain locking function. To be specific, when one or more channels are added or dropped, or optical signals of certain channels fluctuate, the signal gains of other channels are not affected.
EDFA gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE101/TNG3OACE101: Continually adjusts the gain from 20 dB to 31 dB based on the input signal power.
  • TN52OACE105/TNG3OACE105: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TN52OACE106/TNG3OACE106: Continually adjusts the gain from 13 dB to 23 dB based on the input signal power.
  • TN52OACE107/TNG3OACE107: Continually adjusts the gain from 17 dB to 25 dB based on the input signal power.
  • TN52OACE108/TNG3OACE108: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
Transient control The EDFA module and raman amplification module inside the board have the transient control function. When channels are added or dropped, the board can suppress the fluctuation of the optical power in the path so as to implement the smooth upgrading and expansion.
Basic Raman function
  • Integrates with a backward Raman unit and a pluggable EDFA unit to amplify extended C-band optical signals, covering wavelengths within the range of 1528.8 nm to 1567.6 nm.
  • Supports transmission without working with an electrical regenerator for various spans.
  • Generates high-power pump light of multiple wavelengths to supply power for amplifying signal light in transmission fibers.
  • Supports the interlock switch. The interlock switch of a LINE port on the panel controls the power-on and power-off of the board and prevents eyes from being injured by laser when a fiber is inserted into or removed from the LINE port.
  • Integrates with a VOA module to adjust optical power.
Raman working mode
  • The Raman optical module supports the gain locking, maximum gain, and pump power locking modes.
  • The gain locking mode applies to the multi-span or single-short-span scenarios that use G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B fibers. In this mode, the gain of the Raman optical module is tunable, and users can query the actual gain of the Raman optical module.
  • The maximum gain mode applies to the ultra-long single-span scenarios that use G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B fibers. In this mode, the Raman optical module automatically adjusts its pump power to ensure that its gain reaches the maximum value. In addition, users can query the actual gain of the Raman optical module.
  • The pump power locking mode applies to the scenarios that use any fibers except G.652, G.653, LEAF, TWRS, TW-C, TWPLUS, SMFLS, G.656, G.654A, TERA_LIGHT, or G.654B, or to the scenarios in which the pump power of the Raman optical module needs to be adjusted manually.
Raman gain adjustment
  • Supports continuous gain adjustment within the allowed gain ranges based on input optical power. The following uses the SRAPXF board specifications plugged with the TN52OACE108 module as an example:
  • G.652 fiber: 22 dB to 32 dB
  • LEAF/G.653/TWRS/TWC/TW+ fiber: 22 dB to 30 dB
  • G.654B fiber: 18 dB to 26 dB
  • G.656/Teralight/LS/G.654A fibers: 22 dB to 32 dB
NOTE:
Users can separately configure the gain adjustment point only for the Raman amplifier and EDFA on the NMS.
Safe turn-on of the Raman laser
  • When the Raman laser is turned on, the OTDR meter function is automatically enabled to detect fiber connections and therefore ensure that the laser is properly started, avoiding fiber burning due to inappropriate fiber connections.
  • If the Raman laser fails to be turned on, the line fiber quality monitoring function can be used to further identify fault points.
NOTE:
When the SRAPXF board is connected to an ROP, ERPC or CRPC board, the safe Raman laser turn-on, and quick Raman laser shutdown functions cannot be normally used. In this case, you must disable the safe Raman laser turn-on and quick Raman laser shutdown functions on the NMS.
Quick shutdown of the Raman laser Supports the function of quickly turning off the Raman laser. When fiber removal, fiber cut, or serious fiber bend occurs on an optical port within 500 m, the pump light of the Raman laser can be shut down within 100 ms. When the distance is greater than 500 m, the implementation of this function is related to the actual line fiber quality.
NOTE:
When the SRAPXF board is connected to an ROP, ERPC or CRPC board, the safe Raman laser turn-on, and quick Raman laser shutdown functions cannot be normally used. In this case, you must disable the safe Raman laser turn-on and quick Raman laser shutdown functions on the NMS.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Operating wavelength of the OSC
  • TM1/RM2: 1504.5nm to 1520nm
  • TM2/RM1: 1478nm to 1497.5nm
Line fiber quality monitoring
  • The line fiber quality monitoring function can be used on the NMS. Monitoring figures and data are displayed on the NMS.
  • The SRAPXF board can also work with the AST2 board to use the line fiber quality monitoring function on the NMS. In this case, the SRAPXF board supports online and offline line fiber quality monitoring.
  • This function requires the FD system software license.
Optical Doctor Supported
Optical-layer ASON Supported
Alarm and performance event monitoring
  • Detects the pump driving current, back facet current, pump cooling current, temperature of the pump laser and the ambient temperature of the board.
  • The EDFA optical module can detect and report optical power.
  • The Raman amplifier module supports return loss detection.

Functions and Features of the TNG2SRAPXF Board (FIU)

Basic function
  • Multiplexes the OSC signal and main channel signal into the line path and performs the reverse process.
  • Achieves commissioning-free and compensation-free for IEEE 1588v2 signals in the single-fiber bidirectional scenario with dual-OSC configuration.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 3.50 kg
  • 7.72 lb.
