S5735S-L24P4X-A

S5735S-L24P4X-A

Huawei S5735S-L24P4X-A switch supports 24 1000BASE-T ports, 4 10GE SFP+ ports, 1 AC power fixed, PoE+

Huawei

3-5 days

Shenzhen Warehouse

SKU: 98010928 Category:

Description

S5735S-L24P4X-A overview

This Huawei switch comes with 24 1000BASE-T ports, 4 10GE SFP+ ports, 1 AC power fixed, PoE+

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735S-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



S5735S-L24P4X-A quick specs

24 10/100/1000BASE-T ports, 4 10GE SFP+ ports

Forwarding performance is 108/126Mpps

Switching capacity is 336Gbps/3.36Tbps

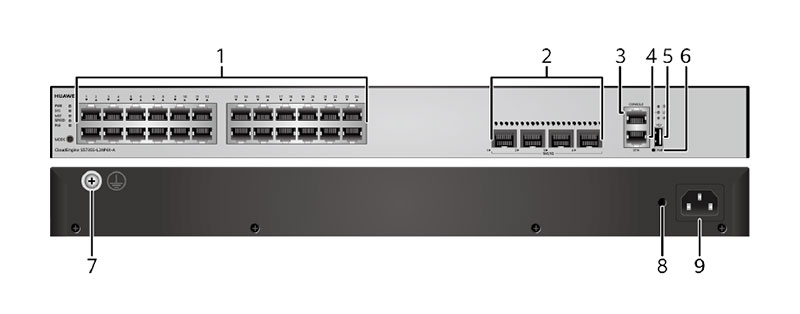

S5735S-L24P4X-A appearance and structure

S5735S-L24P4X-A appearance and structure

1 Twenty-four 10/100/1000BASE-T ports      SFP-1000Base-T 6 One PNP button
2 Four 10GE SFP+ ports

OMXD30000    OSX010000
OSX040N01      SFP-10G-ZR
SFP-10G-USR

7 Ground screw
3 One console port 8 Jack for AC power cable locking strap
4 One ETH management port 9 AC socket
5 One USB port
Item
S5735S-L24P4X-A
Fixed port Twenty-four 10/100/1000BASE-T ports, Four 10GE SFP+ 4-ports
Memory(RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures(MTBF) 57.07 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Service port surge protection Common mode: ±7 kV
Stack ports Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz; High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption

(100% throughput, full speed of fans)

Not providing the PoE function: 56 W

100% PoE loads: 458 W (PoE: 380 W)

Typical power consumption

(30% of traffic load)

43 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm
Weight (with packaging) 4.31 kg

Additional information

Weight 4.3000 kg
Dimensions 43.6000 × 44.2000 × 22.0000 cm
