S5735S-S32ST4X-A

S5735S-S32ST4X-A

Huawei S5735S-S32ST4X-A switch supports 24 100/1000BASE-X ports, 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 1 AC power module equipped

Huawei

3-5 days

Shenzhen Warehouse

SKU: 11244 PN: 98010932 Category: Tags: , , ,

Description

S5735S-S32ST4X-A overview

Huawei S5735S-S32ST4X-A switch supports 24 100/1000BASE-X ports, 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 1 AC power module equipped

Huawei CloudEngine S5735S-S is a series of standard gigabit access switches that provide 24–48 flexible all-GE downlink ports and four fixed 10 GE uplink ports. They are designed for enterprise campus network access and aggregation, as well as data center access. Built on next-generation, high-performance hardware and with the Huawei Versatile Routing Platform (VRP), CloudEngine S5735S-S switches boast advanced features, such as enhanced Layer 3 functionality, simplified O&M, flexible Ethernet networking, and mature IPv6 capabilities.



S5735S-S32ST4X-A quick specs

24 10/100/1000BASE-X ports, 8-ports 10/100/1000BASE-T, 4 10GE SFP+ ports

Forwarding performance is 120/138Mpps

Switching capacity is 432Gbps/4.32Tbps

The S5735S-S32ST4X-A has a 60W built-in AC power module and support pluggable power modules.

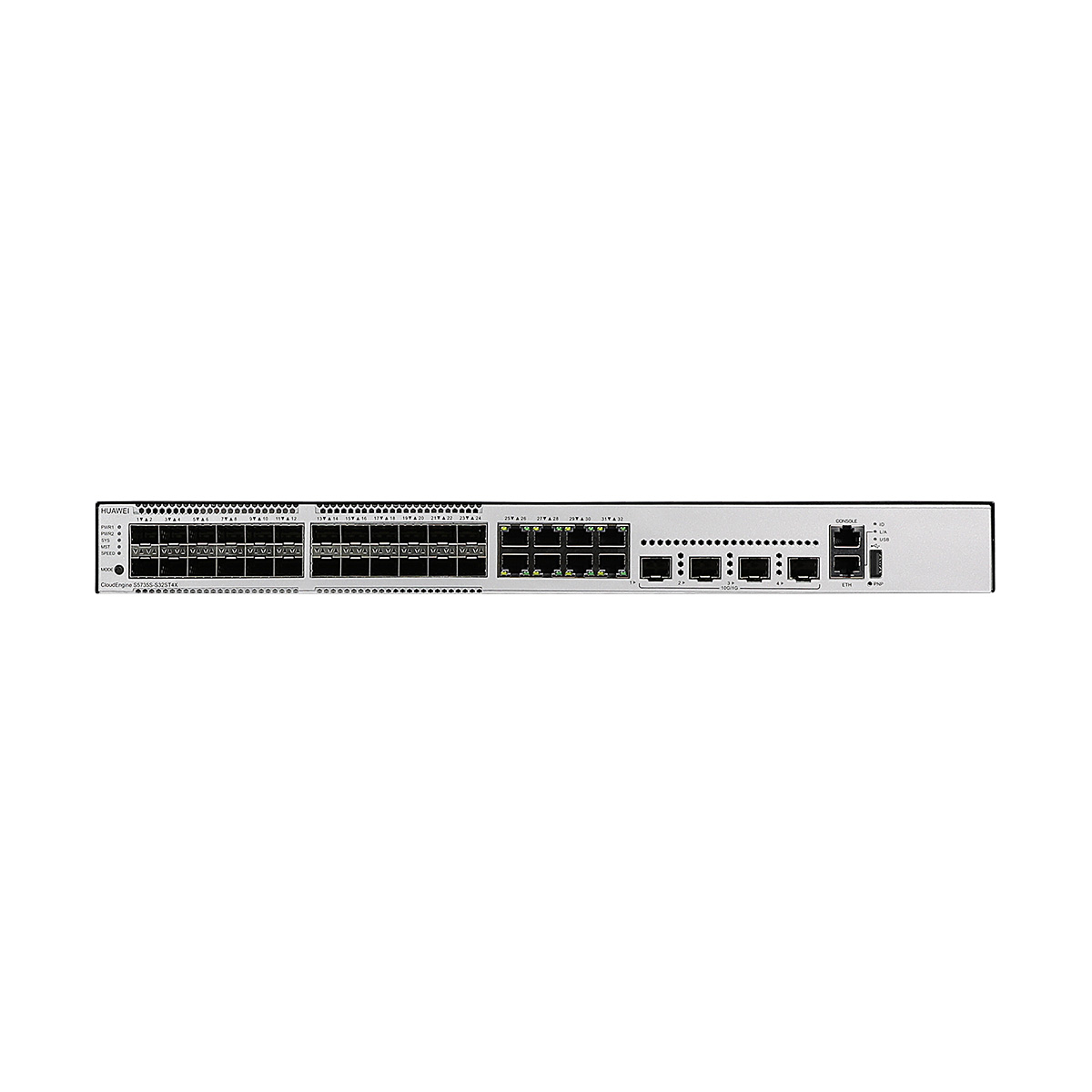

S5735S-S32ST4X-A appearance and structure

S5735S-S32ST4X-A appearance and structur

1 Twenty-four 10/100/1000BASE-X ports, Eight 10/100/1000BASE-T ports 6 One PNP button
2 Four 10GE SFP+ ports

OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR

7 Ground screw
3 One console port 8 Power module slot 1
4 One ETH management port 9 Power module slot 2
5 One USB port
Item
S5735S-S32ST4X-A
Fixed port Twenty-four 10/100/1000BASE-X ports, Eight 10/100/1000BASE-T ports, Four 4-ports 10GE SFP+
Memory(RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures(MTBF) 68.59 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode

Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Service port surge protection Common mode: ±7 kV
Stack ports Any 10/100/1000BASE-X ports, 10/100/1000BASE -T ports or 10GE SFP+  4-ports (applicable in V200R019C10 and later versions)
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz; High-Voltage DC input: 240 V DC; DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz; High-Voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC
Maximum power consumption

(100% throughput, full speed of fans)

66 W
Typical power consumption

(30% of traffic load)

47 W
Certification EMC certification; Safety certification; Manufacturing certification
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm
Weight (with packaging) 8.15 kg

Additional information

Weight 8.2000 kg
Dimensions 43.6000 × 44.2000 × 42.0000 cm
