Description
TNZ5EX4 overview

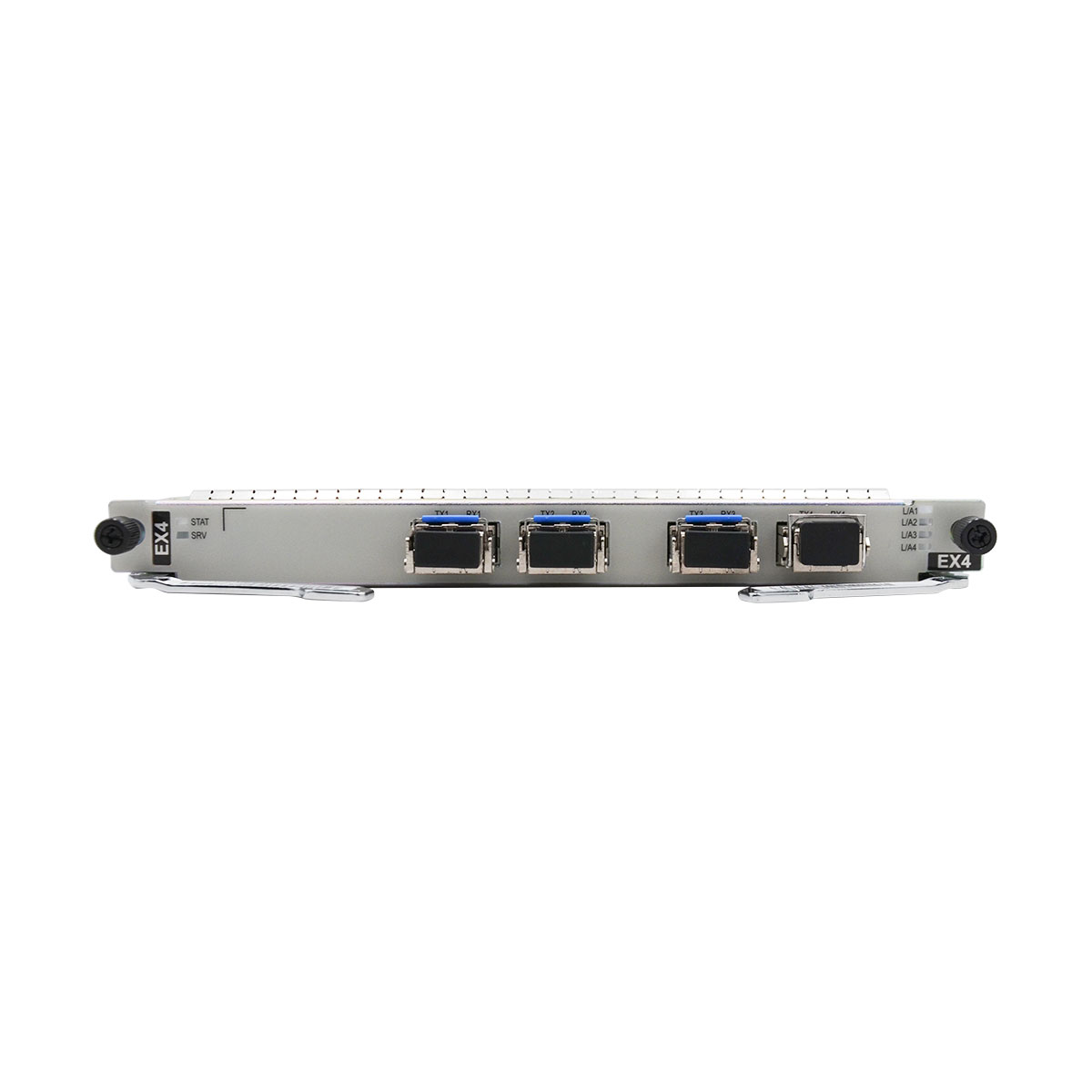

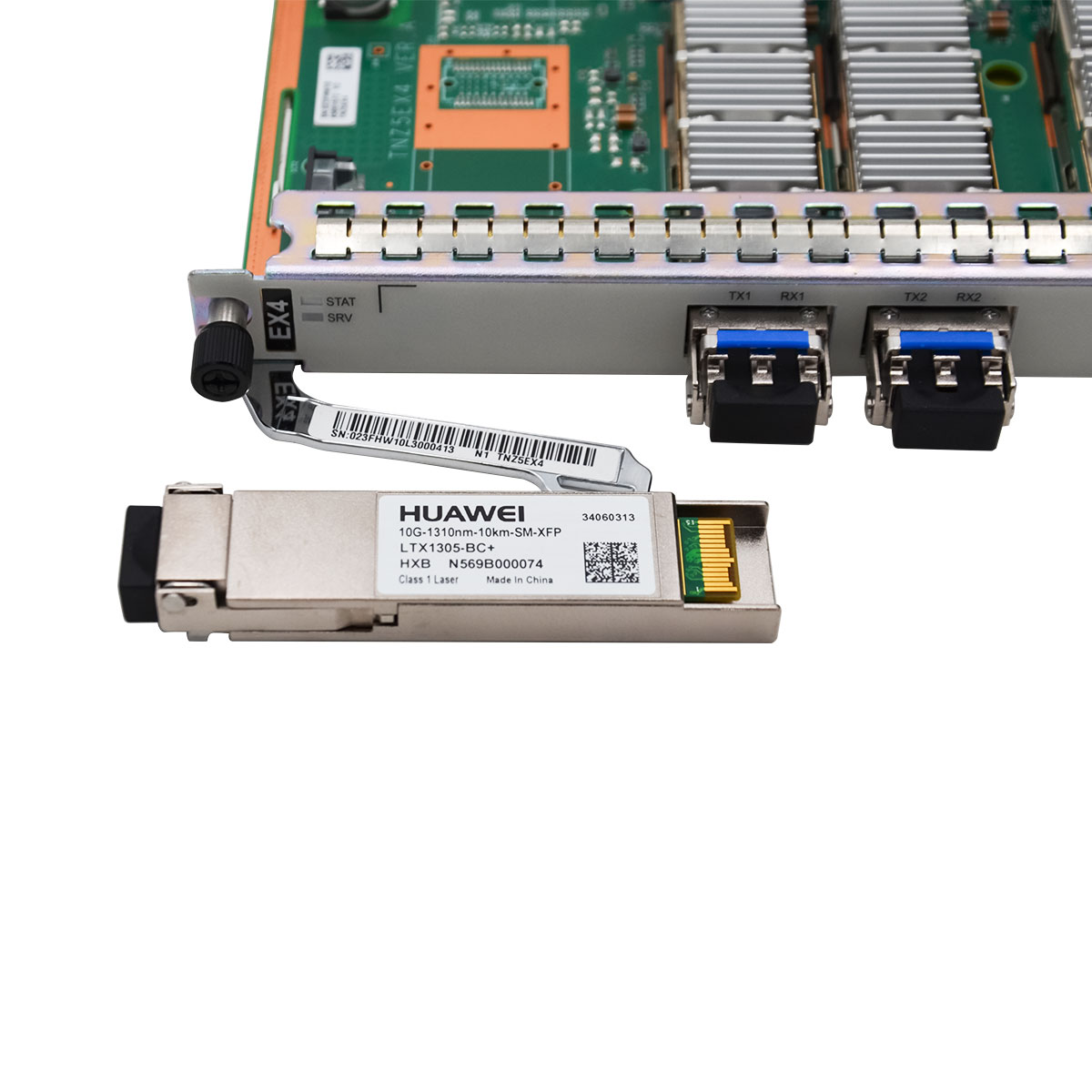

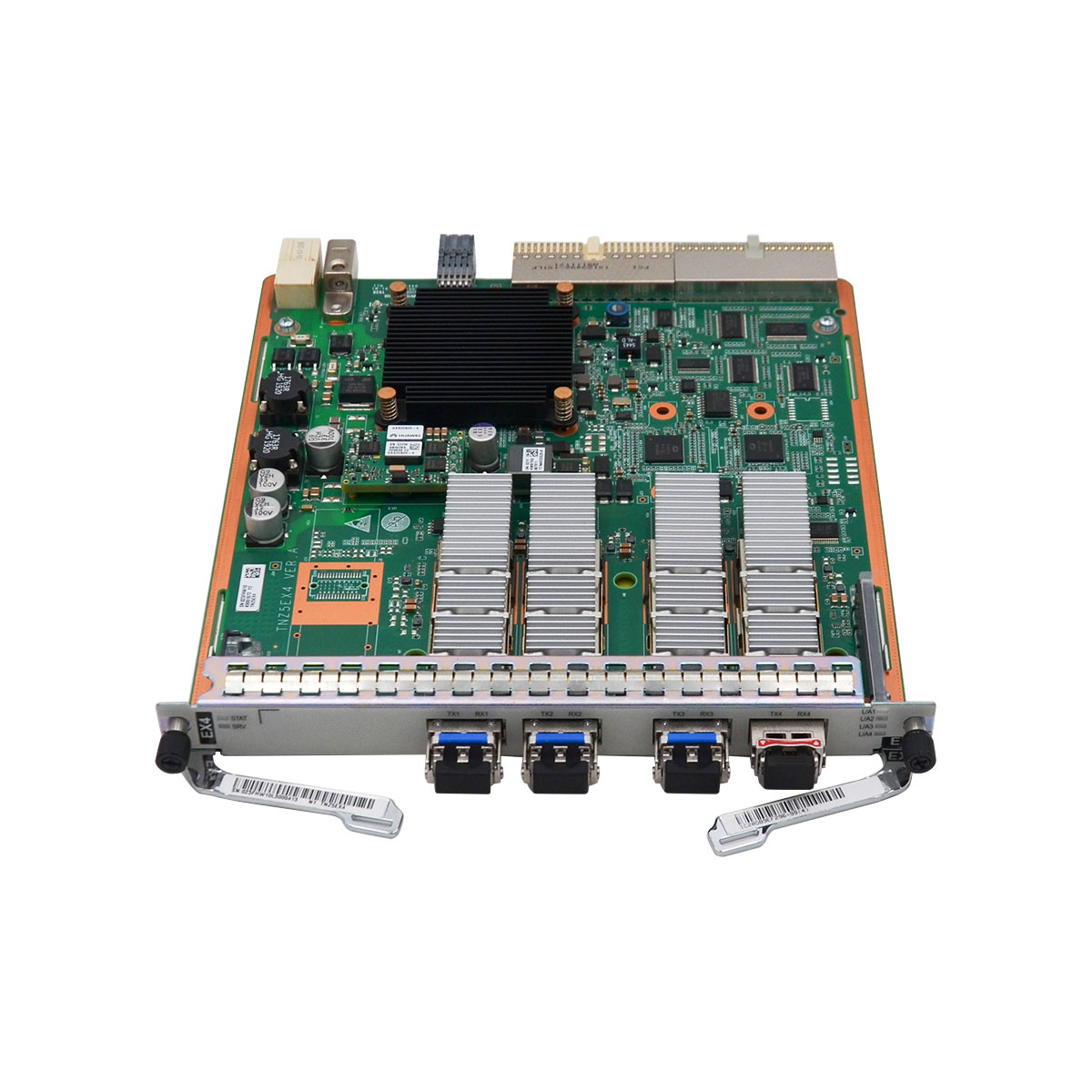

TNZ5EX4 4*10GE(XFP) ethernet processing board applied to Huawei OSN 1800V.
The EX4 board is a packet board. It supports access of 10GE LAN services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EX4 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.
The EX4 board receives and transmits a maximum of 4 10GE LAN optical services. The EX4 board implements Ethernet service functions by working with packet switching units on the system control, switching, and timing boards.
| Item | TNZ5EX4 | ||
| Basic function | Receives and transmits the following services: | ||
| 4 x 10GE LAN | |||
| Backplane bandwidth | 40 Gbit/s | ||
| Supported service | 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s | ||
| Working mode | 10G Full-Duplex LAN | ||
| Port flow control | When working with TNZ5UXCMS, the EX4 board complies with IEEE802.3x and supports only response requests. | ||
| When working with TNZ1UXCL and TNZ2UXCL, the EX4 board complies with IEEE802.3x and supports response and sent requests. | |||
| Ethernet data frame format | IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p | ||
| MFL | The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes. | ||
| Service type | E-Line (VPWS), E-LAN (VPLS) | ||
| Service bearing medium | Port, PW, QinQ | ||
| E-Line services | Native ETH services: | ||
| E-Line services based on point-to-point transparent transmission | |||
| E-Line services based on virtual local area networks (VLANs) | |||
| E-Line services based on 802.1q in 802.1q (QinQ) | |||
| ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services) | |||
| E-LAN services | Native ETH services: | ||
| E-LAN services based on IEEE 802.1d bridges | |||
| E-LAN services based on IEEE 802.1q bridges | |||
| MS-PW | Supported | ||
| Features supported by the EX4 board | |||
| Feature | Description | ||
| Protection scheme | Tunnel APS | Supports 1:1 tunnel automatic protection switching (APS). | |
| Supports 1+1 tunnel automatic protection switching (APS). | |||
| MC-PW APS | Supported | ||
| NOTE: | |||
| The board is not supported on the 1800 II Enhanced chassis. | |||
| PW FPS | Supports 1:1 PW FPS. | ||
| PW APS | Supports 1:1 PW APS. | ||
| LAG | Supported intra-board LAG and inter-board LAG. | ||
| Comply with IEEE 802.1ax. | |||
| MC-LAG | Supported. | ||
| NOTE: | |||
| The board is not supported on the 1800 II Enhanced chassis. | |||
| MSTP | Not supported. | ||
| LPT | Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions. | ||
| MRPS | Supported | ||
| NOTE: | |||
| MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS. | |||
| ERPS | Supported | ||
| Overtemperature protection | If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board. | ||
| LLDP | Supported | ||
| QoS | Diffserv | Supported, compliant with RFC 2474 and RFC 2475. | |
| traffic classification | Complex traffic classification. The ACL rules are customized based on packet information. | ||
| traffic policing | Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115. | ||
| Congestion management | Class of service (CoS), supporting SP/WFQ scheduling algorithms. | ||
| Congestion avoidance | WRED, tail dropping. | ||
| traffic shaping | Supports packet shaping at egress ports and in egress port queues | ||
| IGMP Snooping V1/V2 | Supported | ||
| Maintenance | Ethernet service OAM (CFM) | Supported | |
| Ethernet port OAM (EFM) | Not supported | ||
| MPLS-TP OAM | Supported, compliant with ITU-T G.8113.1 | ||
| RMON | Supported | ||
| Support for port traffic mirroring | |||
| Loopback | MAC Outloop | ||
| MAC Inloop | |||
| PHY Outloop | |||
| PHY Inloop | |||
| Synchronization | Physical clock | Supported | |
| IEEE 1588v2 | Supported | ||
| G.8273.2 | When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function. | ||
| G.8275.1 | When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function. | ||
| Inband DCN | Supported | ||
| HQoS | Supported | ||
