S5731-S32ST4X-D overview

This Huawei switch comes with 8 10/100/1000BASE-T ports, 24 GE SFP ports, 4 10GE SFP+ ports, DC power, front access

Cloud Engine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical downlink ports and 10GE uplink ports.

The Cloud Engine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The Cloud Engine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The Cloud Engine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.


S5731-S32ST4X-D quick spec

24 x GE SFP ports
8 x 10/100/1000Base-T Ethernet ports
4 x 10GE SFP+ ports
DC power supply
Forwarding performance: 108 Mpps
Switching capacity: 144 Gbps/672 Gbps

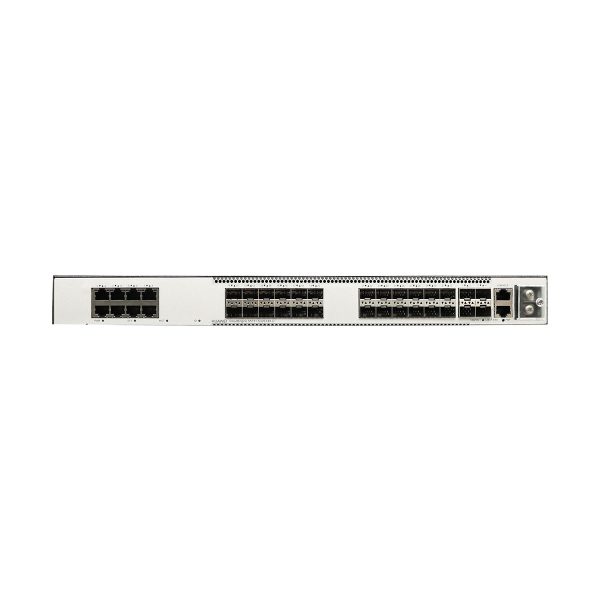

S5731-S32ST4X-D appearance and structure

S5731-S32ST4X-D-appearance and structure

1 Eight 10/100/1000BASE-T ports


2 Twenty-four 100/1000BASE-X ports
3 Four 10GE SFP+ ports

OMXD30000    OSX010000
OSX040N01      SFP-10G-ZR

4 One console port
5 One ETH management port
6 One PNP button
7 DC power terminal
8 Ground screw
Item S5731-S32ST4X-D
Memory 2 GB
Flash memory The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±2 kV in differential mode; ±4 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from the front and left and air exhaust from the right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.40 in. x 9.29 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.98 kg (6.57 lb)
Weight with packaging [kg(lb)] 4.34 kg (9.57 lb)
Typical power consumption [W] 69.46 W
Typical heat dissipation [BTU/hour] 237.00 BTU/hour
Maximum power consumption [W] 93.39 W
Maximum heat dissipation [BTU/hour] 318.66 BTU/hour
MTBF [year] 32.56 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.74 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC built-in
Rated input voltage [V] –48 V DC to –60 V DC
Input voltage range [V] –38.4 V DC to –72 V DC
Maximum input current [A] 6 A
