FiberHome AN5506-01-A GPON Optical Network Terminal with 1*GE.

SKU: 9945 Category:

Description

FiberHome AN5506-01-A GPON Optical Network Terminal with 1*GE, can be configured by OLT or Web or NMS, supports IGMP snooping protocol.

AN5506-01-A 9

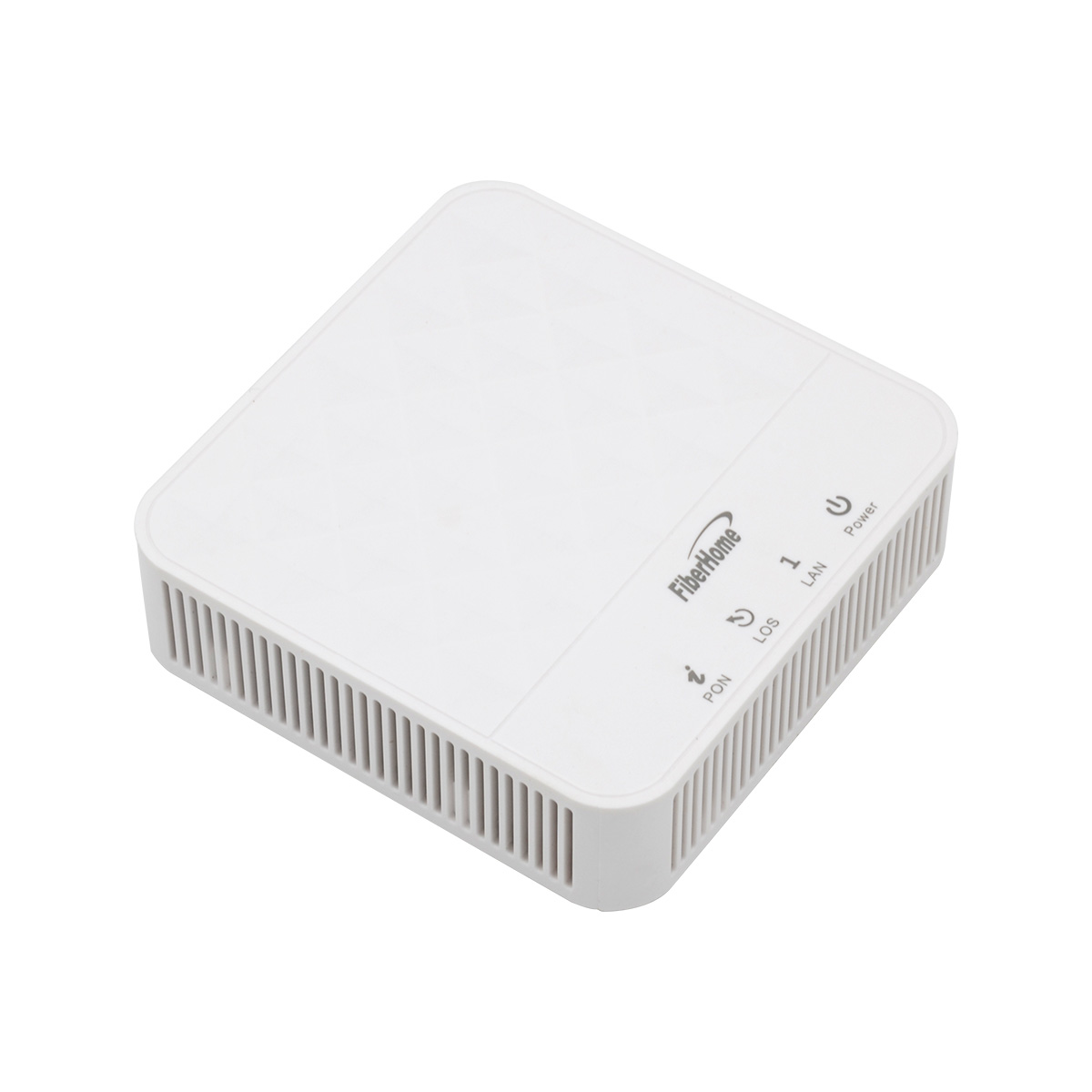

1. FiberHome AN5506-01-A brand new single box.

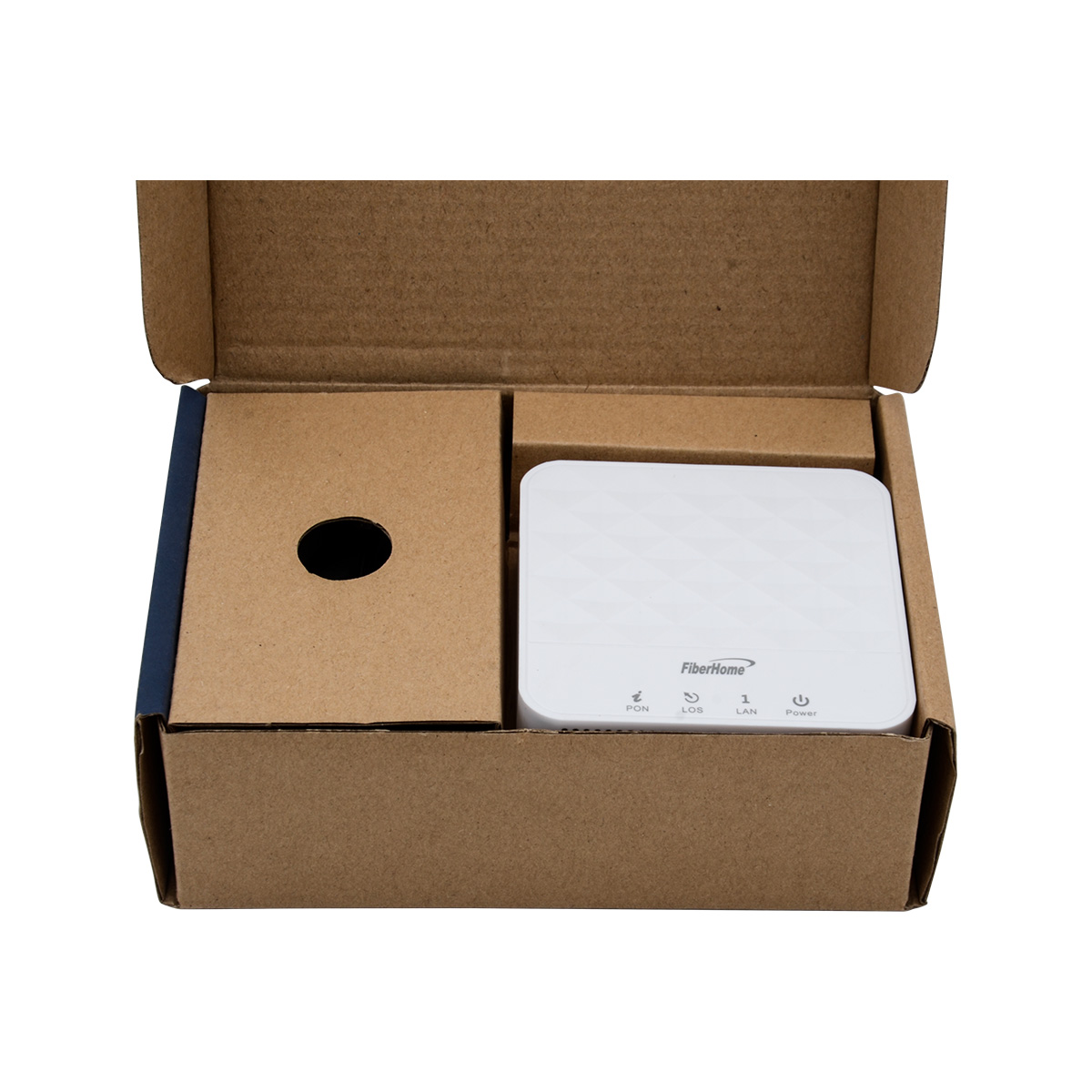

2. FiberHome AN5506-01-A brand new package.

3. 0.5A multi-standard high quality power, EU/ CN/ US/ AU… for choice.

4. New shell with English firmware, English indicator, English interface description.

ONT Collections

Model Name Image Description
HG8546M 5dBi  AN5506-01-A 11  AN5506-01-A 13 1*GE+3*FE+1*POTS+WIFI, 5dBi
 EG8141A5 AN5506-01-A 15 AN5506-01-A 17 1*GE+3*FE+1*POTS+WIFI, 5dBi
HG8245C  AN5506-01-A 19  AN5506-01-A 21 4*FE+2*POT+1*USB+WIFI, 5dBi
HS8145V5  AN5506-01-A 23  AN5506-01-A 25 4*GE+1*POTS+1*USB+2.4G/5G WIFI
HS8546V5  AN5506-01-A 27  AN5506-01-A 29 4*GE+1*POTS+2*USB+2.4G/5G WIFI, 3dBi
EG8145V5  AN5506-01-A 31  AN5506-01-A 33 4*GE+1*POTS+2*USB+2.4G/5G WIFI, 5dBi
HG8245Q2 AN5506-01-A 35 AN5506-01-A 37 4*GE+1*POTS+1*USB+2.4G/5G WIFI, CE label
HG8247H5  AN5506-01-A 39  AN5506-01-A 41 4*GE+1*POTS+1*USB+CATV+WiFi, 5dBi
HG8310M R15 C+  AN5506-01-A 43  AN5506-01-A 45 1*GE
HG8245H  AN5506-01-A 47  AN5506-01-A 49 4*GE+2*POTS+1*USB+WIFI
F660 V8.0  AN5506-01-A 51  AN5506-01-A 53 1*GE+3*FE+1*POTS+WIFI, 5dBi
F601  AN5506-01-A 55  AN5506-01-A 57 1*GE, GPON
F663N  AN5506-01-A 59  AN5506-01-A 61 1*GE+3*FE+1*POTS+1*USB+WIFI
F668  AN5506-01-A 63  AN5506-01-A 65 4*GE+2*POTS+1*CATV+1*USB+WIFI
AN5506-01-A(S)  AN5506-01-A 67  AN5506-01-A 69 1*GE
AN5506-01-A  AN5506-01-A 67  AN5506-01-A 69 1*GE
AN5506-02-FG  AN5506-01-A 75  AN5506-01-A 77  1*GE+1*FE+1*POTS+WIFI
 Item  AN5506-01-A
Dimensions
(length x width x height)
112mm x 112mm x 25.5mm
Network-side port GPON(SC/UPC)
Weight 120g
System power supply 12 V DC, 0.5 A
Power consumption <4W
Working environment Operating temperature: -5ºC to 45ºC
Storage temperature: -40ºC to 70ºC
Environment humidity: 10% to 95%, non-condensing

Additional information

Weight 0.5000 kg
Dimensions 11.2000 × 11.2000 × 2.5500 cm

Fiberhome ONT comparation

Model HG6143D

AN5506-01-A

AN5506-02-FG

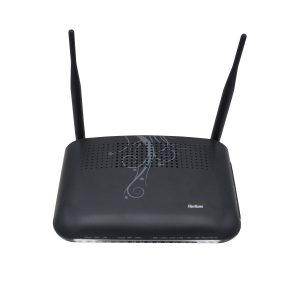

AN5506-04-F

HG6145D1

Format Routing type Bridge type Routing type Routing type Routing type
Ports 4*GE+1*POT+2*USB 1*GE 1*GE+1*FE+1*POTS 4*GE+2*POTS 4*GE+1*POTS+2*USB
WLAN 2.4/5G WIFI Non-WIFI 2.4G WIFI 2.4G WIFI 2.4/5G WIFI

Q: Does the AN5506-01-A support route mode?

A: No, only bridge mode is supported.



Q: Can I use a 4-port mini switch to distribute the Lan port to more use?

A: Yes.



Q: How can I get a PPPoE connection with the ONT?

A: You can connect a PC or home router with the ONT first, then dial through the PC or the home router.

PN. Model Description
HG8310M-R13-C+ HG8310M R13 C+ Huawei HG8310M R13 C+ GPON Optical Network Terminal, with English firmware, English front panel indicator, English ports description
ZXHN F660 V7.1 ZXHN F660 V7.1 ZTE ZXHN F660 V7.1 GPON Optical Network Terminal with 1*GE+3*FE+1*POTS+1*USB+WIFI, 5dBi
ZXHN F601 ZXHN F601 ZTE ZXHN F601 GPON Optical Network Terminal with 1*GE
EG8141A5 EG8141A5 Huawei EG8141A5 is Huawei intelligent routing-type ONT with 1*GE+3*FE+1*POTS+1*USB+2.4G WIFI English firmware, English indicator, English interface description.

4 reviews for AN5506-01-A

  1. 5 out of 5

    January

    Better than expected, the new appearance and packaging, very popular in the market.

  2. 5 out of 5

    Akond

    Just received the FiberHome AN5506-01-A ONT samples, brand new and good package, first to buy and test it, hope it will turn out the great effect.

  3. 5 out of 5

    Sebastian

    Test good of FiberHome ONT AN5506-01-A, will bulk order later.

  4. 5 out of 5

    Chad

    Bought a few for my lab setup and they are working fine so far.
