Alcatel-Lucent NOKIA 7360 ISAM FX-8

Alcatel-Lucent NOKIA 7360 ISAM FX-8

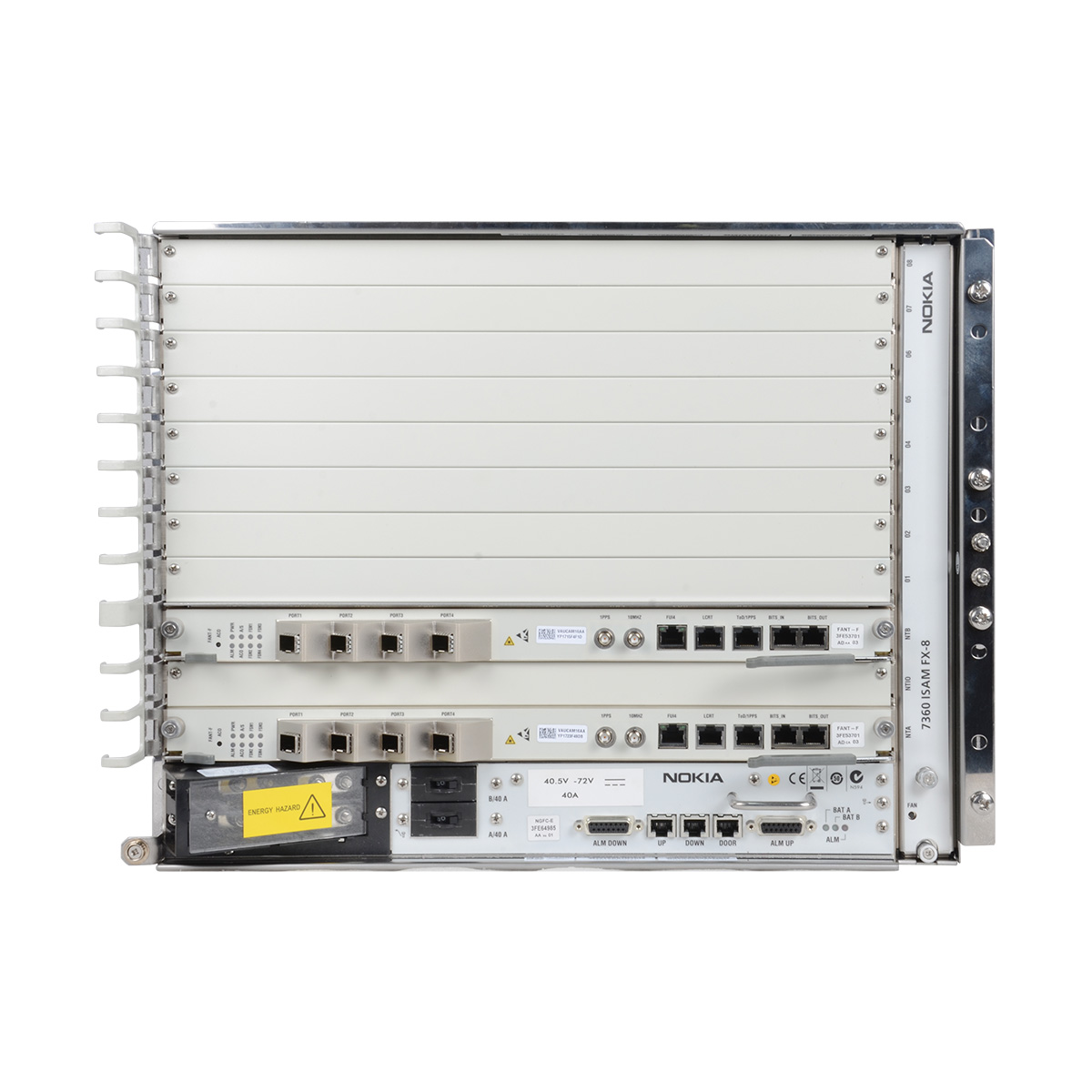

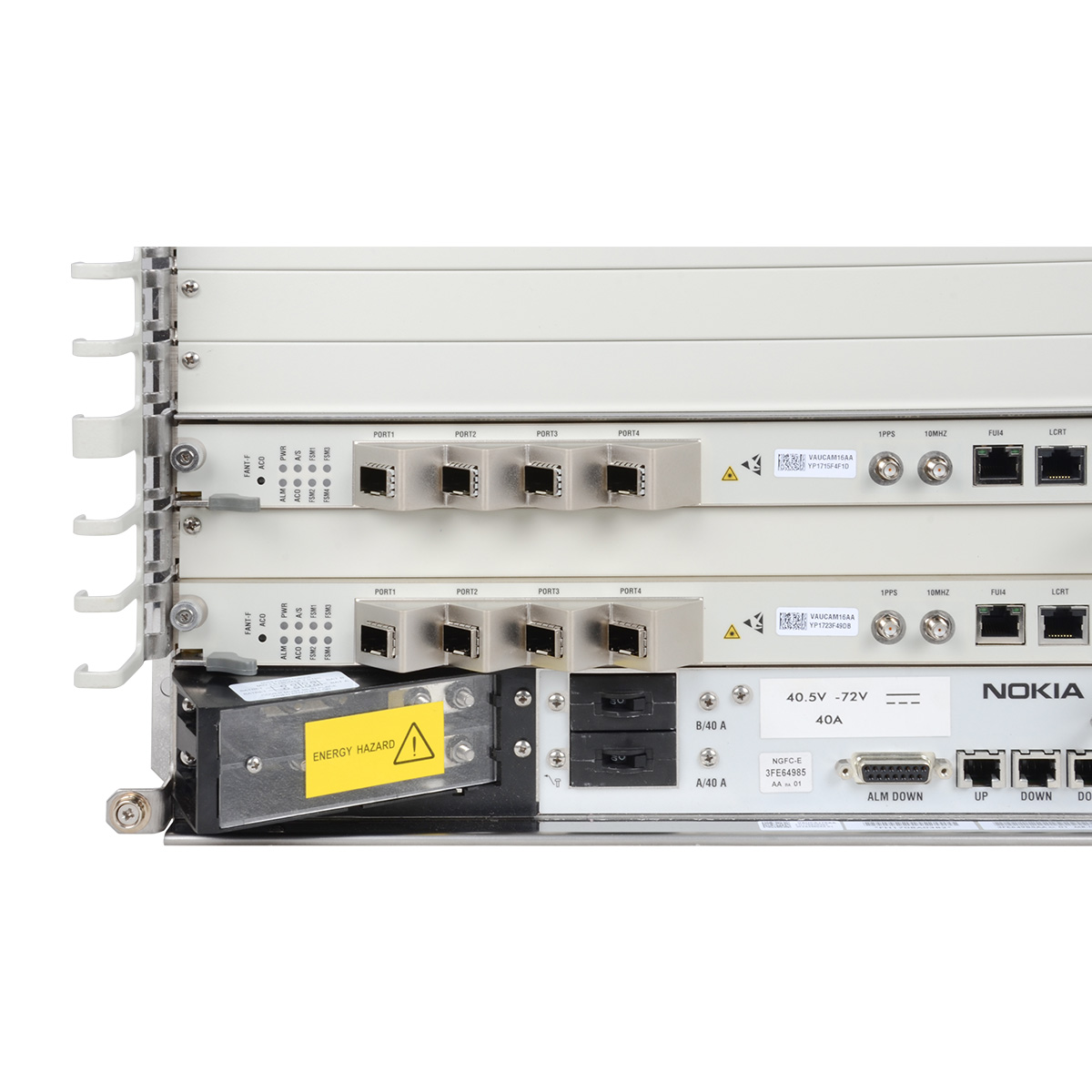

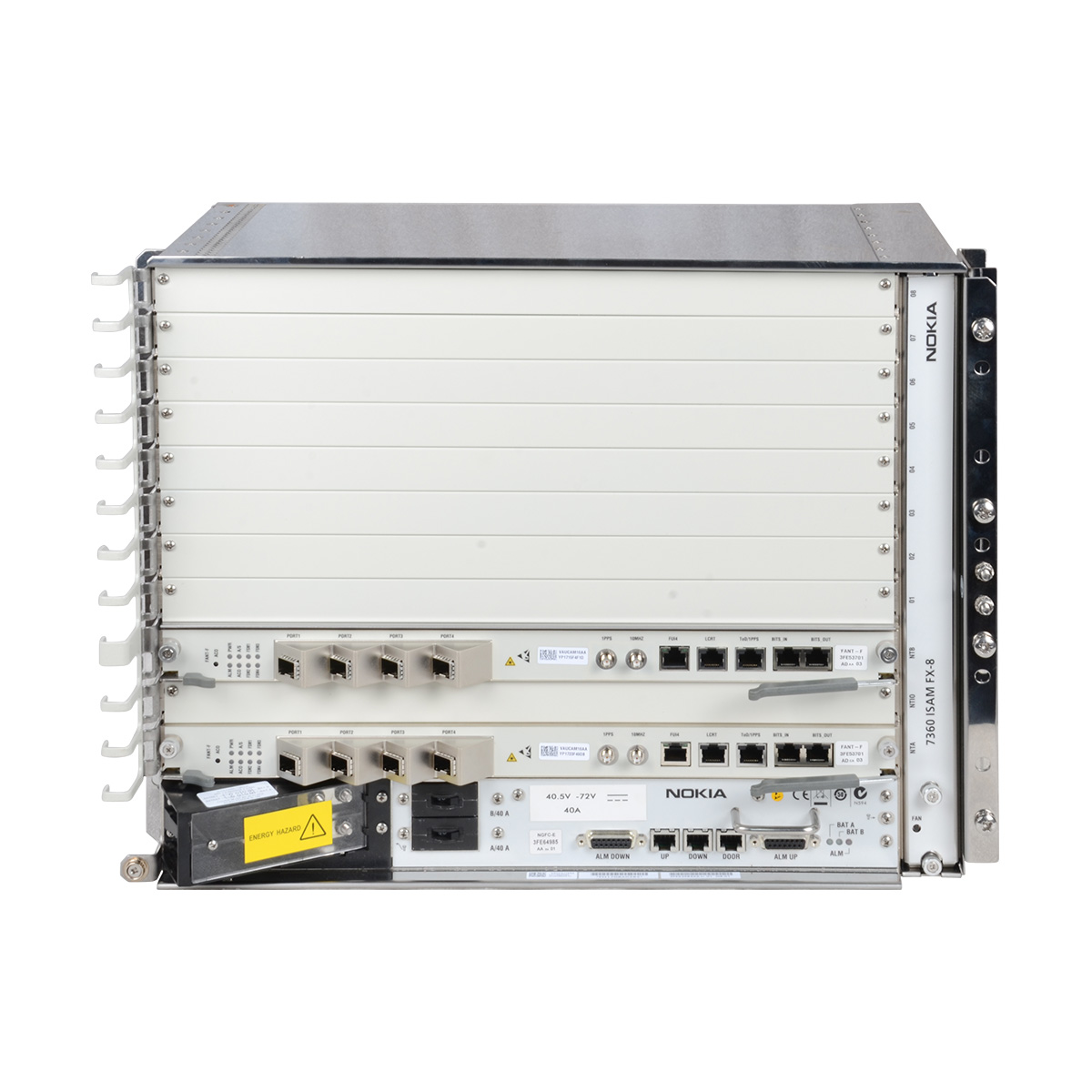

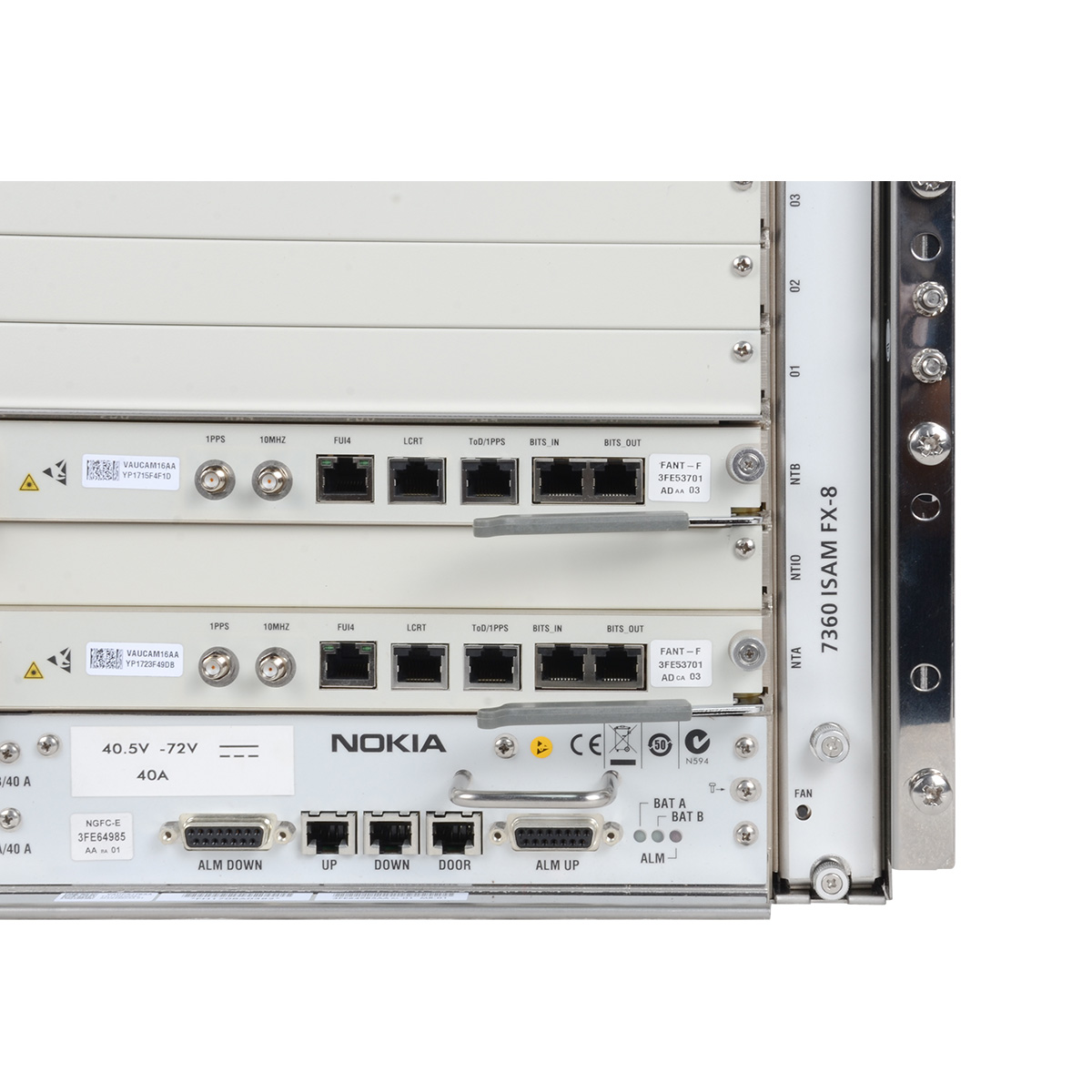

Alcatel-Lucent NOKIA 7360 ISAM FX-8 with 2xFANT-F, 1xNGFC-E, provides 8 service slots and supports 2×100 Gb/s per slot, VDSL2 with vectoring, GPON, EPON (with DPoE) and 10G PON services

ALCATEL & LUCENT

3-5 days

Shenzhen Warehouse

SKU: 10492 Category:

Description

Alcatel-Lucent NOKIA 7360 ISAM FX-8 Overview

The NOKIA Alcatel-Lucent 7360 Intelligent Services Access Manager (ISAM) FX is a high-capacity access node designed to deliver ultra-broadband services to any number of users in a fast and cost-effective way. The 7360 FX supports a mix of services including VDSL2 with vectoring, point-to-point, GPON, EPON (with DPoE), and 10G PON services. Supports GPON and universal next-generation PON (universal NG-PON) technology for the cost-efficient introduction of 10 Gb/s symmetric and asymmetric services with XGS-PON. Backplane technology guarantees high-bandwidth throughput, which enables dual 100Gb/s backplane connections to each line termination (LT) slot.

Alcatel-Lucent NOKIA 7360 ISAM FX-8 with 2xFANT-F, 1xNGFC-E, provides 8 service slots and supports 2×100 Gb/s per slot, VDSL2 with vectoring, GPON, EPON (with DPoE) and 10G PON services.

High-capacity backplane: 2 100Gb/s per slot

High-capacity 480Gb/s controllers (NT) with 40Gb/s network capacity (can be used as uplink, downlink or direct user link)

Optional Network Termination Input Output (NTIO) for an additional 80Gb/s network capacity

Simultaneous support of passive optical network (PON), point-to-point, POTS, and VDSL2 with vectoring

Basic 7360 ISAM FX network topology

Basic 7360 ISAM FX network topology

Alcatel-Lucent NOKIA 7360 ISAM FX-8
Item Alcatel-Lucent NOKIA 7360 ISAM FX-8
Switching capacity of the system FANT-F: 480Gb/s switching matrix (bidirectional)
High-capacity backplane 100 Gb/s  per slot
Service Slots 8
Power supply Input – 48/60V DC nominal
Fully redundant power feeding (branch A and B)
Operating temperature range -40⁰C to 65⁰C (-40⁰F to 149⁰F)
Relative humidity 5% to 93% (non-condensing)
Dimensions Height: 223 mm. (8.77 in) (5 RU)
(W x D x H) (mm) Height: 360mm (14.17in) (8 RU)

Width: 445mm (17.52in); can be used in 19in racks Depth: 280mm (11.02in)

Rack-mounting pitch of 25 mm (0.984 in)
Huawei VS. ZTE VS. Alcatel-Lucent NOKIA



Brand Model Name Control Board  Switching Board Uplink Power Board GPON  XG-PON XGS-PON XG-PON&GPON Combo XGS-PON&GPON Combo
Huawei MA5608T MCUDMCUD1 MPWD, MPWC GPBD,GPFD XGBD
MA5680T/MA5683T SCUN, SCUH GICF, X2CS PRTE
MA5800-X2 MPSA, MPSC PISA, PISB GPHF,GPUF XGHD TWED,XSHD,TWHD CGID, CGHF,CGHD CSHF, CSHD
MA5800-X7/X15 MPLA, MPLB NXED PILA
ZTE C320 SMXA/1SMXA/3SMXA/5 PRAM GTGO,GTGH GTXO GTTO GTBO
C300/C350 SCXM, SCXL, SCXN, SCTM GUFQ, GUSQ, HUTQ PRWG, PRWH
C600/C650 SFUL, SFULV,SFUH, SFUHV XFTO, XFTH PRVR GFGH GFXH GFTH GFBH, GFBN GFCH
C680 IMEP SWUM
Nokia Alcatel-Lucent Nokia 7360 FANT-F, FANT-G NGFC-G, NGFC-E NGLT-C/NGLT-A, FGLT-A/FGLT-B FWLT-P FGXT-A, FWLT-B

What is Nokia ISAM?

The ISAM FD is a high-capacity multiservice access node platform for converged access networks designed to deliver ultra-broadband services to a large number of users in a rapid and cost-effective way. The ISAM FD platform enables service providers to deploy any service, any deployment model and any technology.



How many NT network terminal card slots are available on ISAM 7360 FX 4 chassis?

Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2*FANT-F NT card, and 1*NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services.



What is slot chassis?
Chassis slots represent the physical slots in the chassis where modules can be installed. Card slots represent the reference used in management interfaces when provisioning the modules and then using resources of those modules (for example, port references).



PN. Model Description
3FE64991AB Alcatel-Lucent NOKIA 7360 ISAM FX-4 Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2*FANT-F NT card, and 1*NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services
