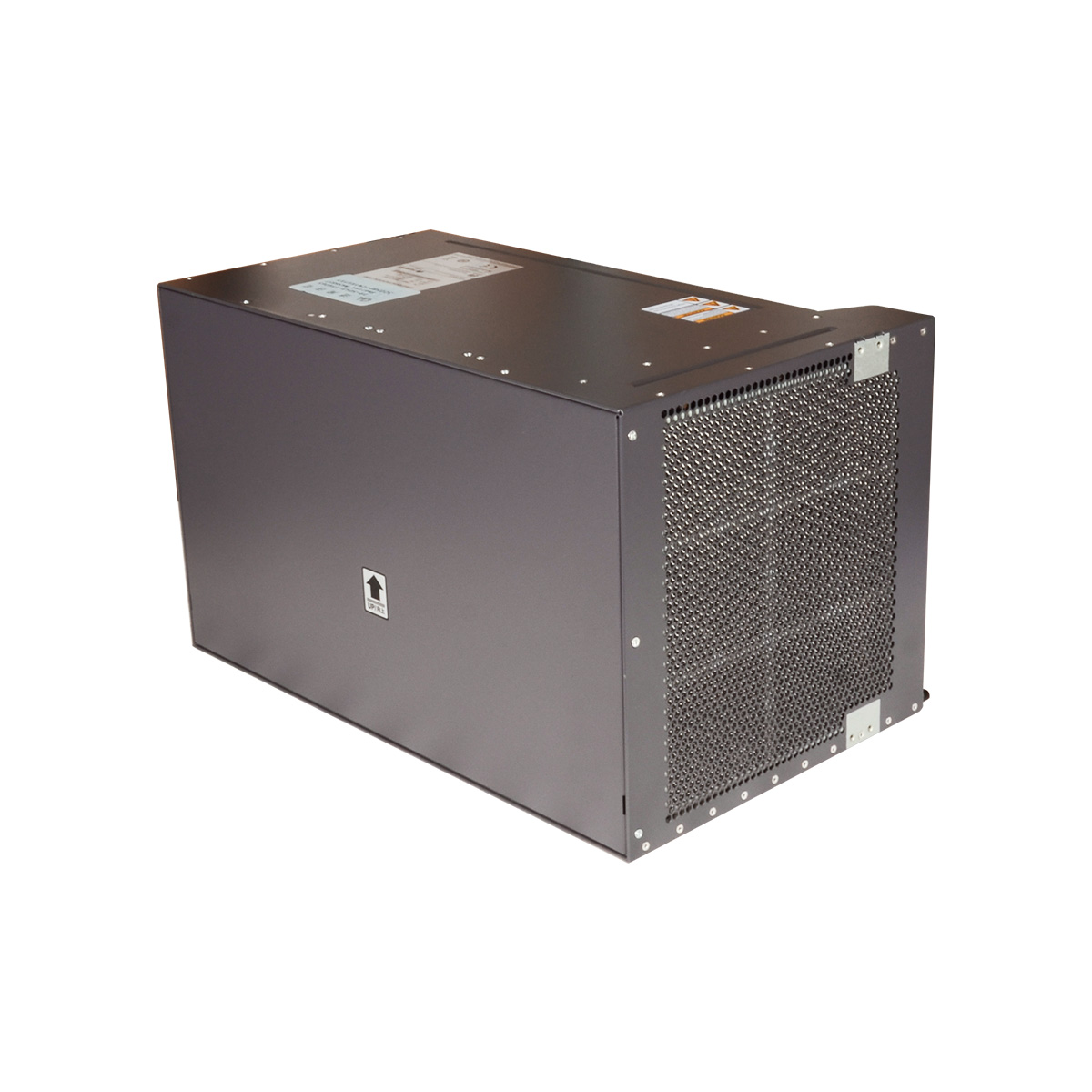

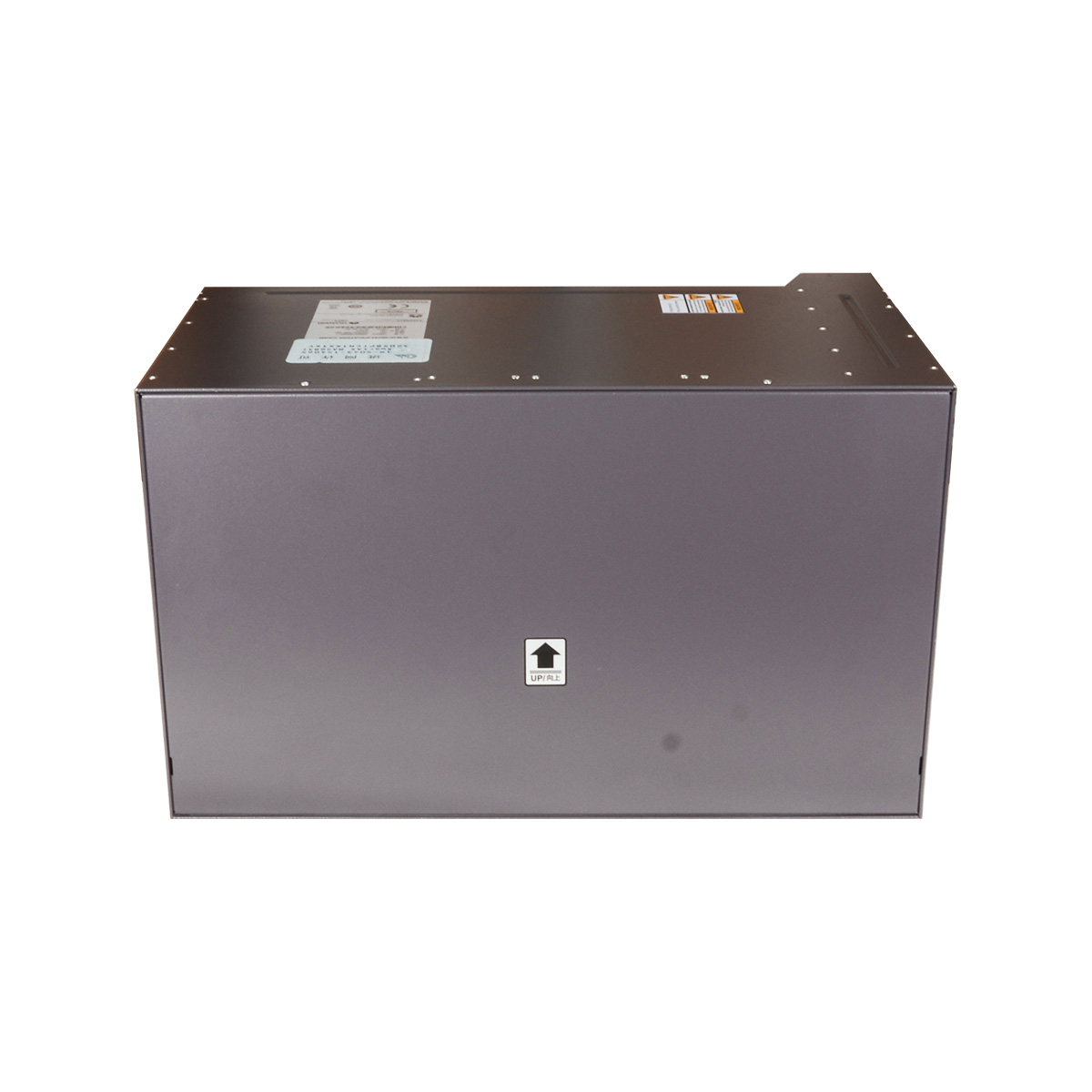

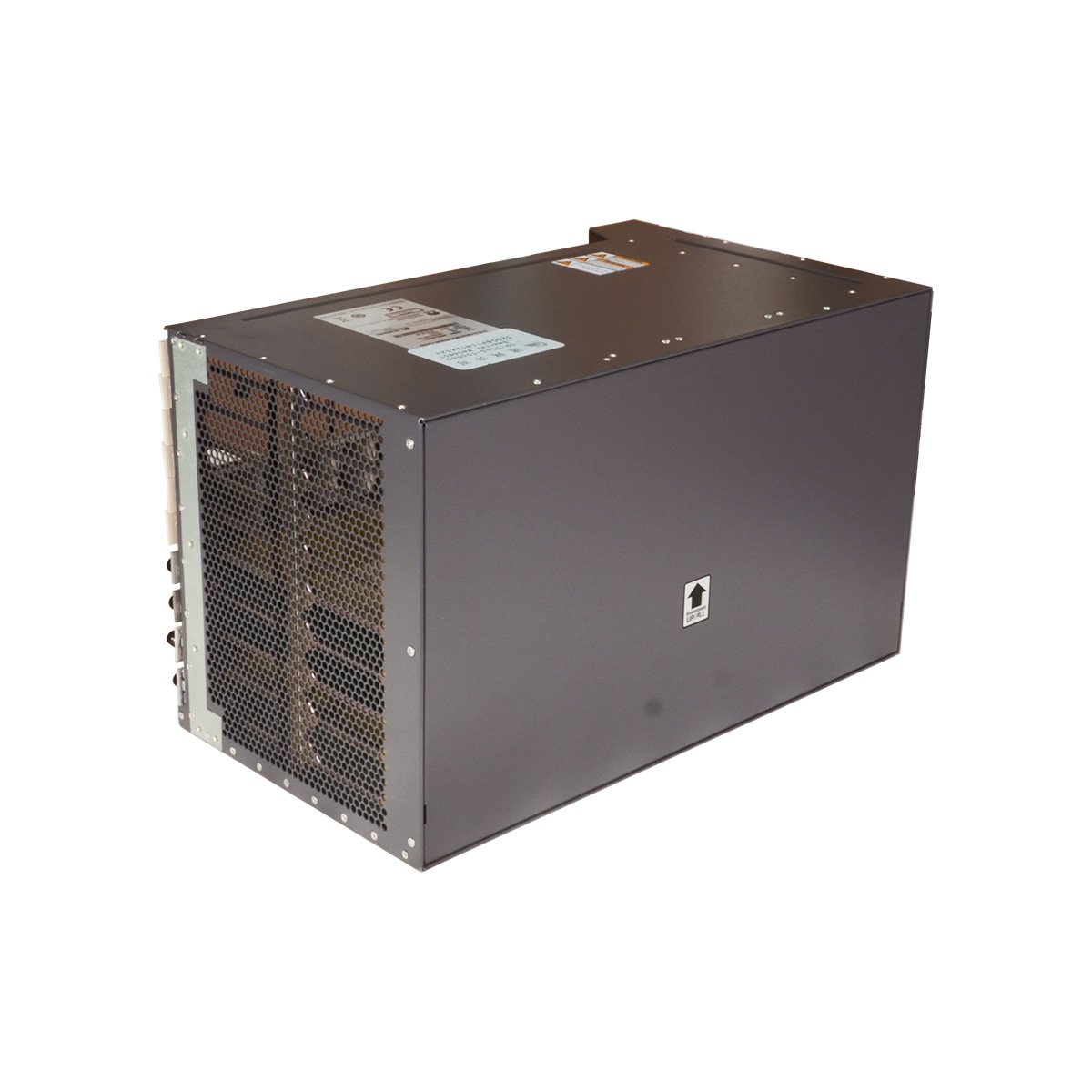

Huawei MA5683T
Huawei MA5683T
Huawei MA5683T
Huawei MA5683T
Huawei MA5683T
Huawei MA5683T
Huawei MA5683T
Categories:

Huawei MA5683T

4 Reviews Write a review
SKU8527
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei MA5683T chassis with 5U height 6 service slots, 2xSCUN main control board, 2xPRTE DC power board, support EPON, GPON, 10G PON, P2P service

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei MA5683T Overview

SmartAX MA5600T is the global first OLT which integrates the functionality of aggregation switch and edge router.

It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple-play service, TDM/ATM/Ethernet leased line services for business customers and high precision clock, and high density GE/10GE interfaces for cascading remote access equipment.



MA5600T helps to simplify network architecture, to improve network reliability and lower TCO essentially.

The MA5680T/MA5683T/MA5608T is a series of integrated fiber-copper access devices. They support ADSL2+, VDSL2, Vectoring, SuperVector, SHDSL, POTS, GPON, 10G GPON, and P2P access modes and provide Internet access, voice, and video services to subscribers. As a series of large-/medium-/small-capacity devices, they share the same software platform and service boards.

  • Large-capacity device: MA5680T with 16 slots for service boards(ETSI)/14 slots for service boards(IEC)
  • Medium-capacity device: MA5683T with 6 slots for service boards
  • Small-capacity device: MA5608T with 2 slots for service boards



The MA5683T is an integrated fiber-copper access device, and can serve as a DSLAM, OLT, or MDU.

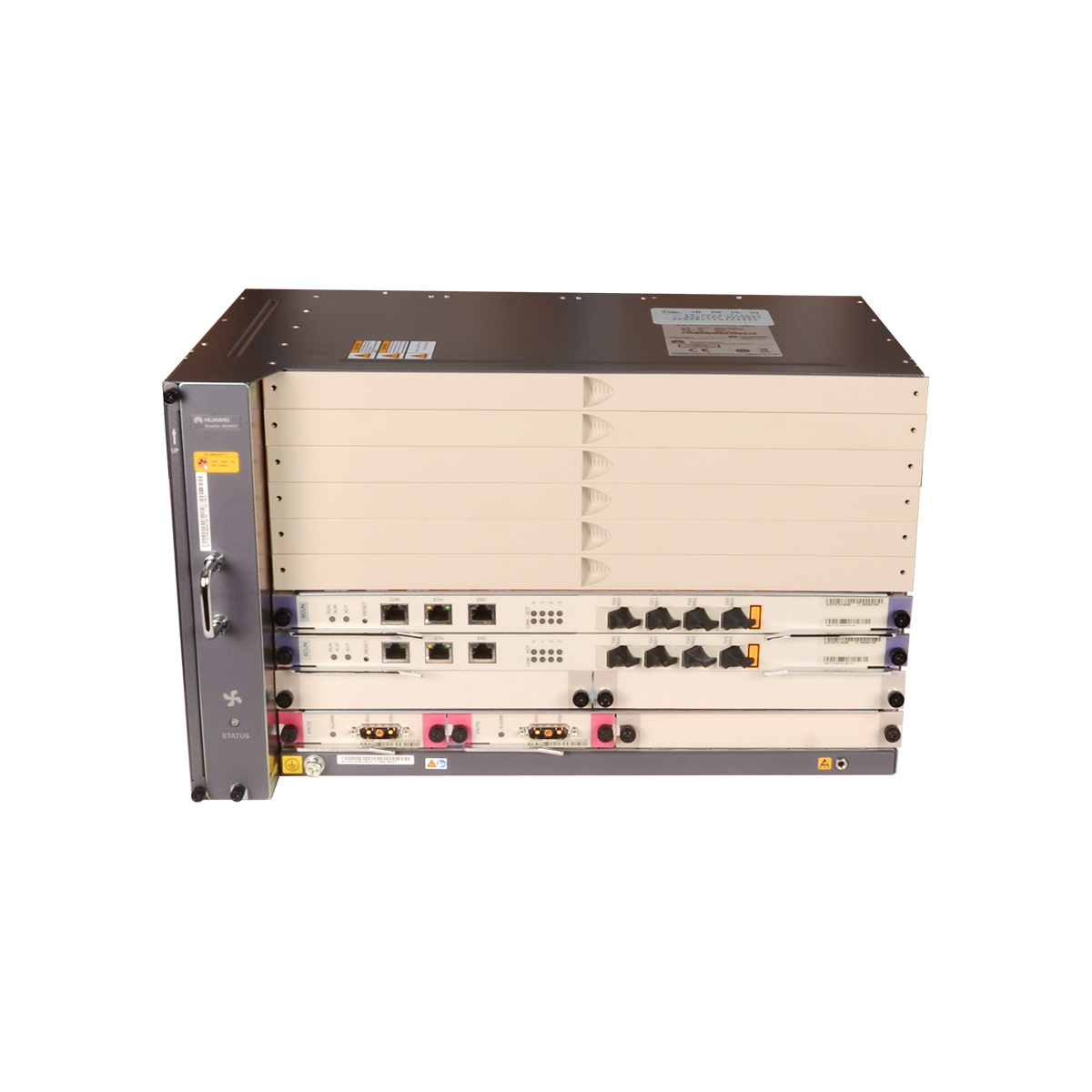

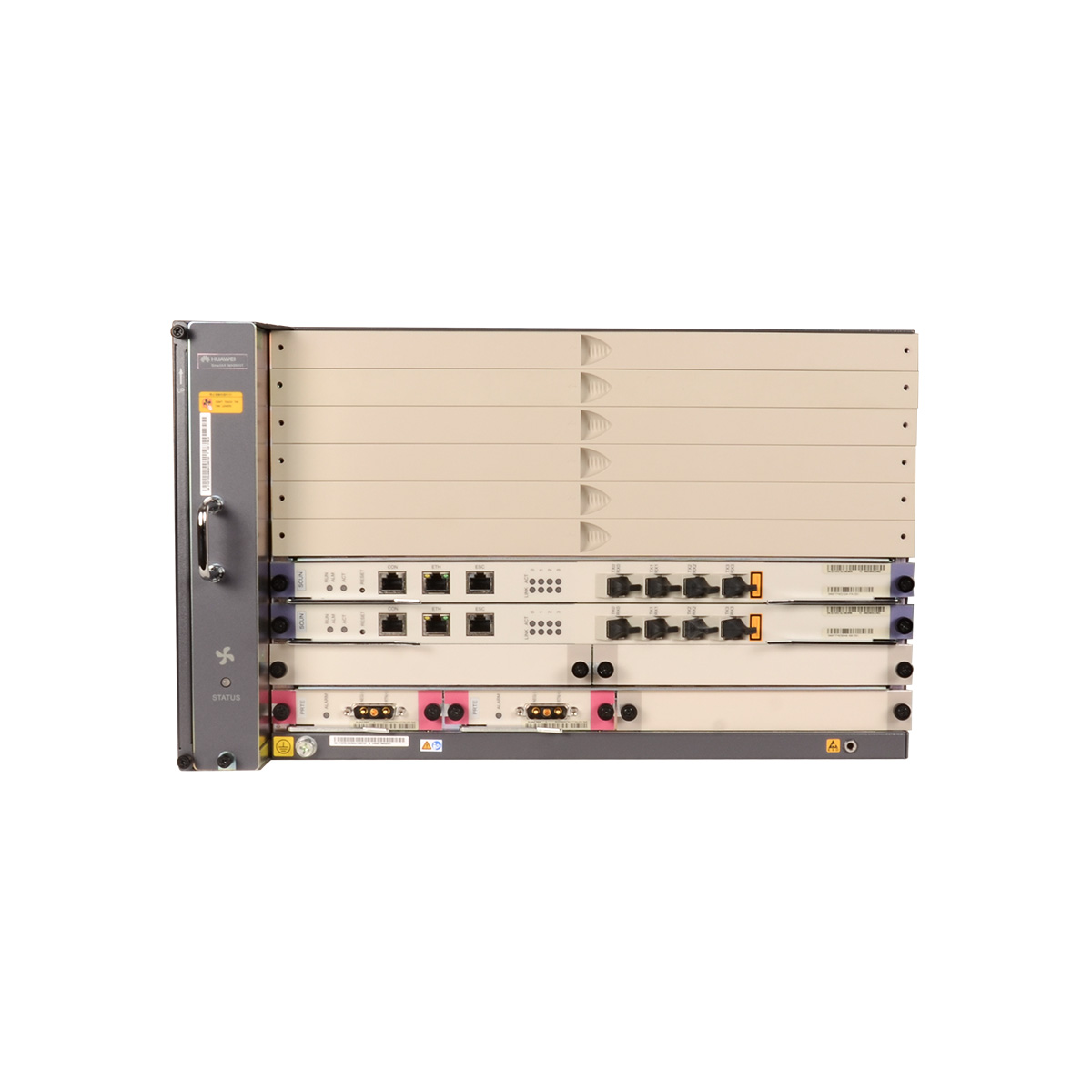

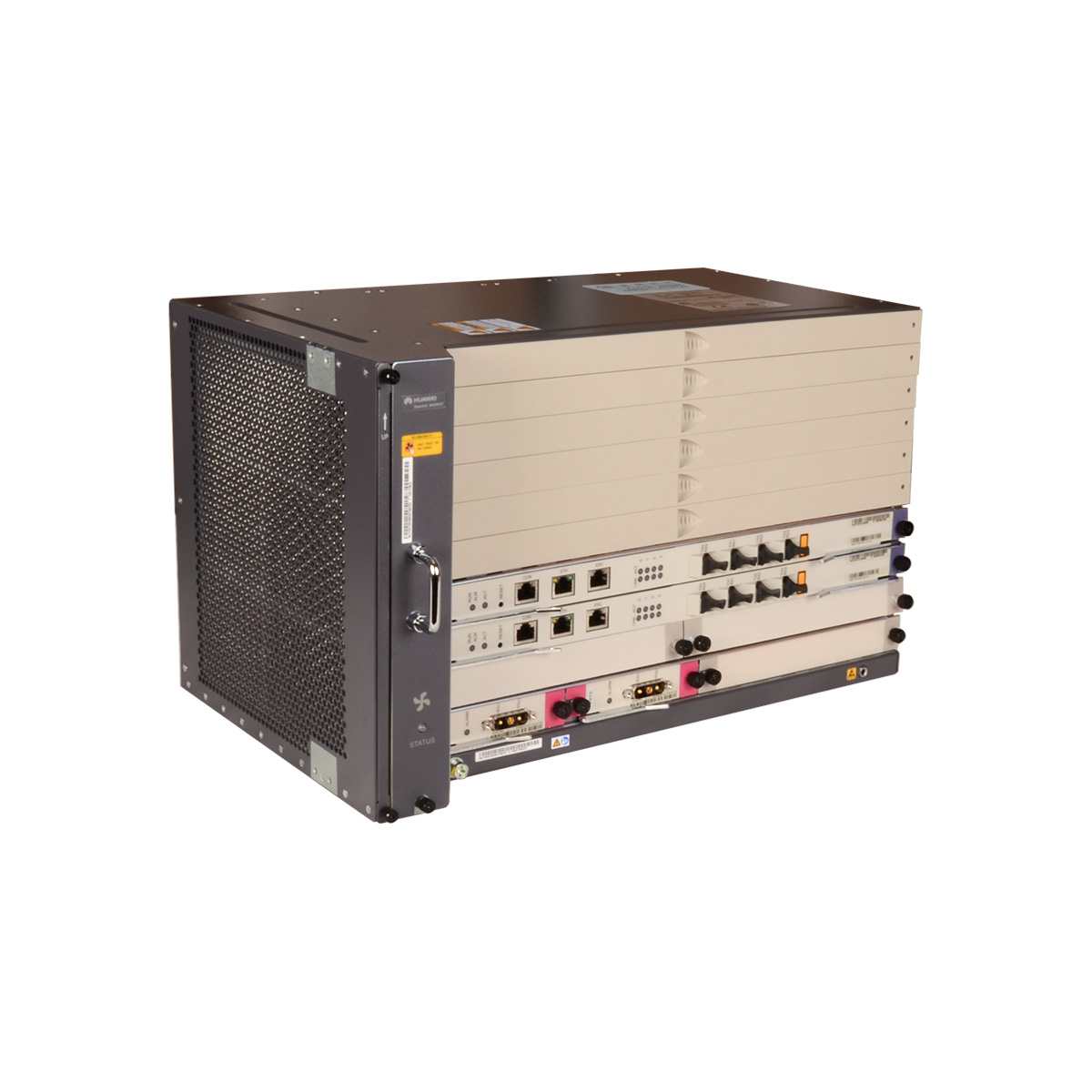

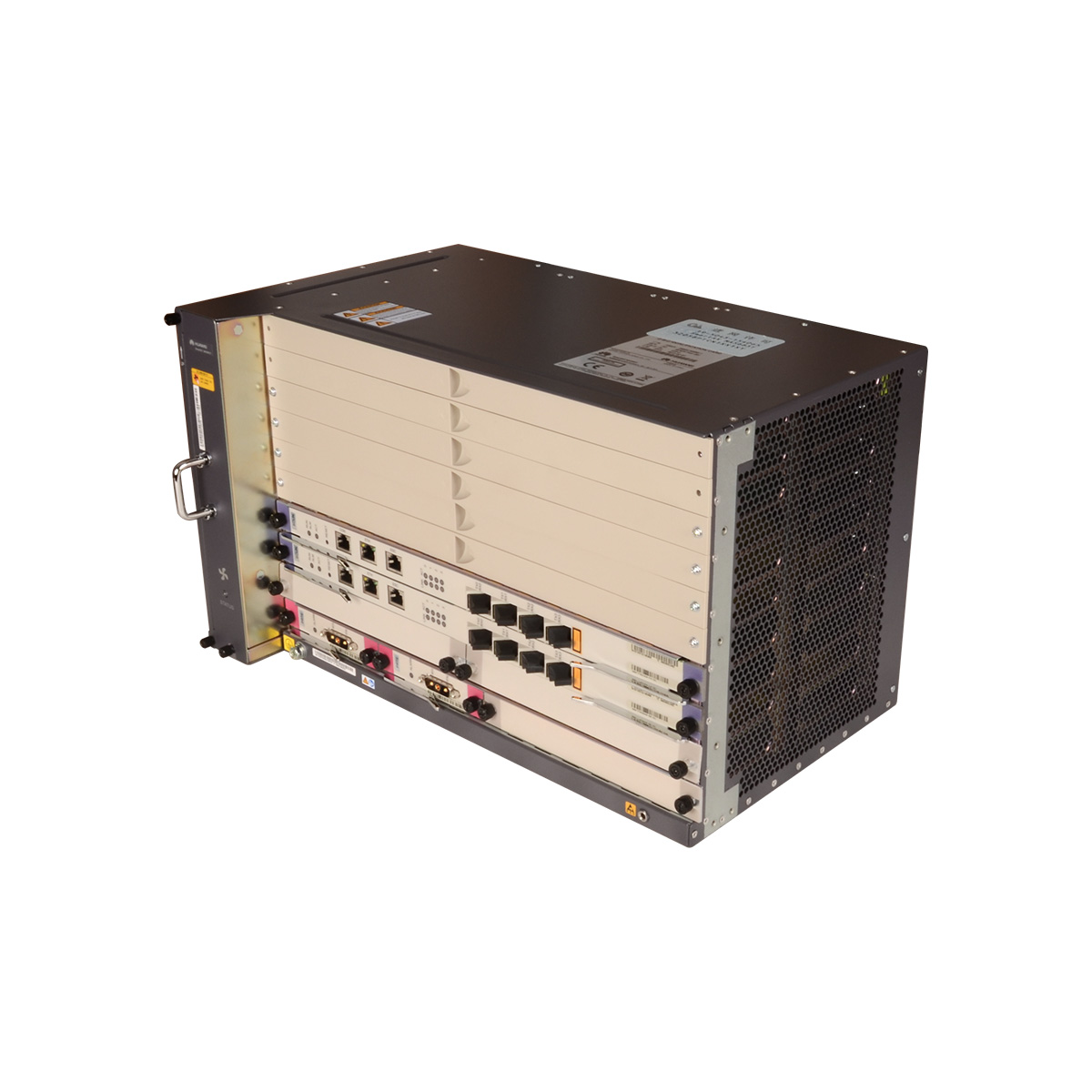

Huawei MA5683T chassis with 5U height 6 service slots, 2xSCUN main control board, 2xPRTE DC power board, support EPON, GPON, 10G PON, P2P service.

  • The MA5683T, if serving as an OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
  • The MA5683T, if serving as a DSLAM, supports ADSL2+, VDSL2, Vectoring, SuperVector, SHDSL, and POTS access modes.
  • The MA5683T, if serving as an MDU, supports ADSL2+, VDSL2, Vectoring, SuperVector, SHDSL, and POTS access modes and transmit packets upstream to the OLT through a PON/GE/10 GE port.

MA5683T is PRTE DC power based, recommend AC/DC power converter ETP48100-B1-A1, ETP4860-B1A12 to change power solution.





Supported Main Control Board and Service Board

Board Type Name and Version Description
Main control boards SCUN the most applications main control board, which comes with 4 GE uplink ports
SCUH supports 4 GE/10GE uplink ports
SCUK supports 4 GE optical uplink ports
Power Board H801PRTA Huawei SmartAX MA5600 Power Transfer Board
H801PRTE
H801PRTG
Upstream boards X2CS 2-10GE optical interface board
GICF 2-GE optical interface board
GICG 2-port GE electrical interface bard
GPON Board GPBD/GPBH 8 GPON ports interface board
GPFD 16 GPON ports interface board
XG-PON Board XGBD 8 XGPON ports interface board
Epon Board EPBD 8 EPON ports interface board
EPFD 16 EPON ports interface board
10G EPON Board XEBD 8 XEPON ports interface board



Huawei MA5683T Layout

MA5683T

MA5603T APPEARANCE



EOM Announcement for Huawei MA5600T ,MA5608T ,MA5603T ,MA5616



Table 1 End of Life Milestones and Dates for Huawei SmartAX MA5616 &SmartAX MA5600T &SmartAX MA5603T &SmartAX MA5608T

Milestone Definition Date
EOM End of Marketing. The EOM date is the date
from which the acceptance of the POs will be
rejected. The product is not sold any longer
after the date		 December.31.2019
EOS End of Service & Support. It refers to the last date of the service. After the EOS date, Huawei does not provide any service for the product. Plan:

December.31.2024



Table2 Replacement Product

End of Life Product Replacement Product
SmartAX MA5600T（21 inch） FTTH：SmartAX MA5800-X17
Copper：SmartAX MA5800C-X16
SmartAX MA5600T（19 inch） SmartAX MA5800-X15
SmartAX MA5603T FTTH：SmartAX MA5800-X7
Copper：SmartAX MA5800C-X6
SmartAX MA5608T SmartAX MA5801/SmartAX MA5800-X2
SmartAX MA5616 SmartAX MA5818



MA5683T Datasheet
Item MA5683T
Backplane bus switching capacity 1.5 Tbit/s
System L2 packet forwarding rate Power SCUB: 72 Mpps SCUN: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode) SCUK: 726 Mpps(Active/Standby mode), 1452 Mpps(Load-sharing mode) SCUF: 190 Mpps SCUH: 1428 Mpps(Active/Standby mode), 2856 Mpps(Load-sharing mode)
Control board switching capacity SCUB: 48 Gbit/s SCUN: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode) SCUK: 480 Gbit/s(Active/Standby mode), 960Gbit/s(Load-sharing mode) SCUF: 128 Gbit/s SCUH: 960 Gbit/s(Active/Standby mode), 1920Gbit/s(Load-sharing mode)
Switching/Forwarding delay Short forwarding delay:The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load BER of port when transmitting data in full load < 10 e-7
System performance
System Redundant configuration
System availability in typical configuration >99.999%
Mean Time Between Failures (year) ≈45
Configuration
Maintenance port Number of 10 Mbit/s/100 Mbit/s maintenance Ethernet ports: 1 Number of serial ports for local/remote maintenance: 1
Monitoring port Number of environment monitoring serial ports: 1
Maximum number of GPON ports in a subrack 96
Maximum number of 10G GPON ports in a subrack 24
Maximum number of P2P FE ports in a subrack 288
Maximum number of P2P GE ports in a subrack 288
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4
Management ports
Outband management Ethernet port (RJ-45) SCUB/SCUN/SCUF/SCUH control board: 1 Port Board
Local serial port (Console) SCUB/SCUN/SCUF/SCUH control board: 1 Port Board
Upstream ports
GE electrical port GICE: 4 Ports Board GICG: 2 Ports Board
GE optical port GICF/GICK: 2 Ports Board SCUB/SCUN/SCUH/GICD/GSCA: 4 Ports Board ETHB/SPUA/SPUF: 8 Ports Board SPUC: 40 Ports Board
10GE optical port X2CS/SPUA: 2 Ports Board SPUC: 4 Ports Board SPUF: 8 Ports Board
E1 port TOPA: 16 Ports Board
STM-1 upstream optical port TOPA: 2 Ports Board
PON upstream optical port P2CA: 2 Ports Board  (One PON port is available and the other is backup.)
Service ports
GPON port GPBD/GPBH: 8 Ports Board GPFD: 16 Ports Board
10G GPON port XGBC: 4 Ports Board XGBD: 8 Ports Board
P2P GE optical port OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
P2P FE optical port OPFA: 16 Ports Board OPGD/OPGE: Single-fiber bi-directional: 48 Ports Board, Two-fiber bi-directional: 24 Ports Board
Ethernet optical port ETHB: 8 Ports Board
E1 port H802EDTB: 16 Ports Board
Device Specifications
Dimensions (W x D x H excluding mounting brackets) 442.00 mm x 283.20 mm x 263.90 mm
Dimensions (W x D x H, including mounting brackets) 535.00 mm x 283.20 mm x 263.90 mm, for ETSI cabinet 482.60 mm x 283.20 mm x 263.90 mm, for IEC cabinet
Weight (empty chassis) 7.0kg
Working environment temperature For an indoor cabinet Configured with 1 subrack: -25°C to +65°C Configured with 2 subracks: -25°C to +55°C
Working environment humidity 5% RH to 95% RH
Atmosphere pressure 61 kPa to 106 kPa
Altitude < 4000 m


Comparison of Huawei MA5600T OLT chassis
Item MA5680T (ETSI) MA5680T (IEC) MA5683T MA5608T
Supported cabinet Indoor cabinet: N63E-22, N66E-18 Outdoor cabinet: F01T500 Indoor cabinet: N66E-22 Outdoor cabinet: none Indoor cabinet: N66E-18 Outdoor cabinet: F01S300, F01T500, F01T300 Indoor cabinet: N63E-22 Outdoor cabinet: F01S100, F01S200
Board configuration 2 slots for control boards 16 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 14 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 6 slots for service boards 1 slot for the universal interface board 2 slots for upstream interface boards 2 slots for power interface boards. 2 slots for control boards 2 slots for service boards 1 or 2 slots for the power interface board.
Supported control board and its switching capacity SCUB: 48 Gbit/s SCUF: 128 Gbit/s SCUN/SCUK: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode SCUH/SCUV: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode MCUD/MCUD1/MCUE: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
System Layer 2 packet forwarding rate SCUB: 72 Mpps SCUF: 190 Mpps SCUN/SCUK: 726 Mpps in active/standby mode or 1452 Mpps in load-sharing mode SCUH/SCUV: 1428 Mpps in active/standby mode or 2856 Mpps in load-sharing mode MCUD/MCUD1/MCUE: 190 Mpps in active/standby mode or 380 Mpps in load-sharing mode
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration. System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 1024 896 384 128
Maximum number of VDSL2 ports in a subrack 1024 896 384 128
Maximum number of Vectoring ports in a subrack 768 768 384 N/A
Maximum number of SuperVector ports in a subrack N/A N/A 384 N/A
Maximum number of EFM SHDSL ports in a subrack 512 448 192 64
Maximum number of TDM SHDSL ports in a subrack 256 224 96 32
Maximum number of POTS ports in a subrack 1024 896 384 128
Maximum number of ISDN BRA ports in a subrack 512 448 192 64
Maximum number of ISDN PRA ports in a subrack 64 64 64 64
Maximum number of GPON ports in a subrack 256 224 96 32
Maximum number of 10G GPON ports in a subrack 128 112 48 16
Maximum number of P2P FE ports in a subrack 768 672 288 96
Maximum number of P2P GE ports in a subrack 768 672 288 96
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack 8 8 8 N/A
Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack 4 4 4 N/A
Maximum number of upstream ports (PON ports in the GIU slot) in a subrack 1 1 1 N/A
Maximum number of upstream ports (ports on the control board) in a subrack SCUB/SCUF: 4 x GE (in the active/standby mode) SCUN/SCUK: 8 x GE (in the load-sharing mode) SCUH/SCUV: 8 x 10GE/GE (in the load-sharing mode) MCUD/MCUE: 8 x GE (in the load-sharing mode) MCUD1: 4 x GE + 2 x 10GE/GE (in the load-sharing mode)
Maximum number of extended subracks connected to a master subrack 32 32 32 N/A
Maximum number of ONUs supported by each subrack
  • For Layer 2 applications, the maximum number of ONUs supported by each subrack is determined based on the number of MAC addresses and service flows supported by the control board, as well as the number of MAC addresses and service flows planned for the ONUs.
  • For Layer 3 applications, the maximum number of ONUs supported by each subrack is determined based on the number of routes and ARP entries supported by the control board.
Comparison of GPON board
Board GPON Type Port Quantity Optical Module Maximum Split Ratio
H807GPBD 1G-GPON 8 SFP (Class B+ and Class C+/Class C++) 1:128
H805GPBD/H806GPBD 1G-GPON 8 SFP (Class B+ and Class C+/Class C++) 1:128
H802GPFD 1G-GPON 16 SFP (Class B+ and Class C+/Class C++) 1:128
H805GPFD 1G-GPON 8 SFP (Class B+ and Class C+/Class C++) 1:128
H802XGBC 10G-GPON 4 SFP (Class B+ and Class C+/Class C++) 1:128
Differences between GPON B+, GPON C+, and GPON C++ transceivers
B+   Module C+   Module C++ Module
Type One-fiber bi-directional optical module, class B+ One-fiber bi-directional optical module, class C+ One-fiber bi-directional optical module, class C++
Operating Wavelength Tx: 1490 nm Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx:2.49Gbit/s Rx:1.24Gbit/s Tx:2.488Gb/s Rx:1.244Gb/s
Minimum Output Optical Power 1.50 dBm 3.00 dBm 6.00 dBm
Maximum Output Optical Power 5.00 dBm 7.00 dBm 10.00 dBm
Maximum Receiver Sensitivity -28.00 dBm -32.00 dBm -35.00 dBm
Optical Connector Type SC/PC SC/UPC
Optical Fiber Type Single-mode
Reach 20.00km
Overload Optical Power -8.0 dBm -12.0 dBm -15.0 dBm
Extinction Ratio 8.2 dB


Additional information

Weight 26.0000 kg
Dimensions 57.0000 × 48.0000 × 45.0000 cm
Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Reviews

  1. Martin –

    The price is good and the date is new.

  2. John –

    It’s all good except that it’s heavy.

  3. Edisson –

    Refurbished MA5683T chassis, but looks like new.

  4. Gordon –

    Buy 4 units for my client, fast delivery, good!

Add a review

Your email address will not be published. Required fields are marked *

79  +    =  89

Related products
Quick view
Categories1:

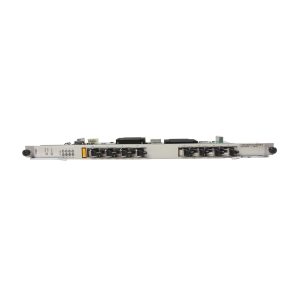

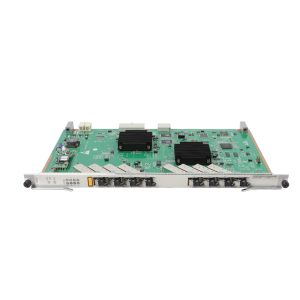

H806GPBD C++

R.F.Q
(1)
SKU4848
Quick view
Categories1:

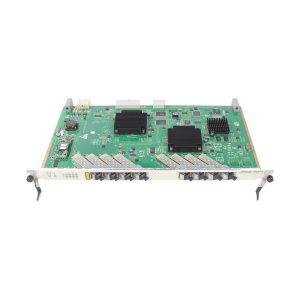

H806GPBH-B+ module

R.F.Q
(1)
SKU4856
Quick view
Categories1:

H806GPBH-C++module

R.F.Q
(1)
SKU4872
Quick view
Categories1:

H806GPBH-C+ module

R.F.Q
(1)
SKU4864
Quick view
Categories1:

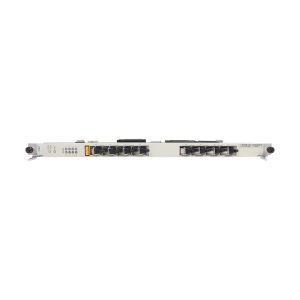

H807GPBH-C+ module
