S6730S-H24X6C-A

S6730S-H24X6C-A

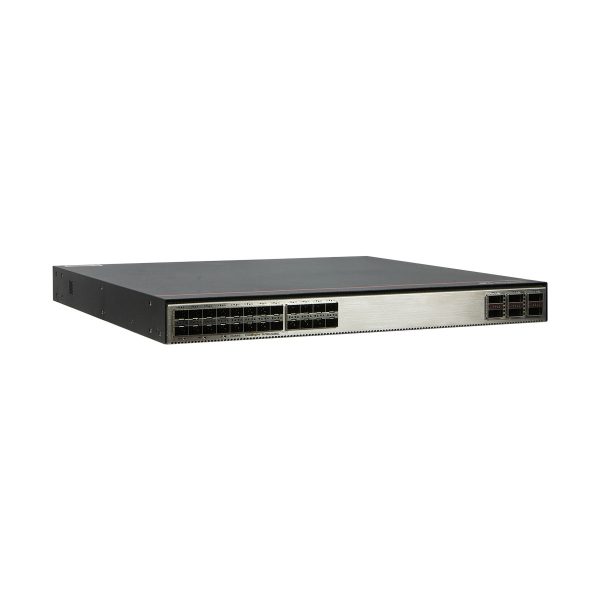

Huawei S6730S-H24X6C-A switch supports 24 10GE SFP+ ports, 6 40GE/100GE QSFP+/QSFP28 ports, 2 hot swappable AC/DC power supplies,  1 AC equipped

Huawei

3-5 days

Shenzhen Warehouse

Description

S6730S-H24X6C-A overview

Huawei S6730S-H24X6C-A switch with 24 10GE optical ports, 6 40GE/100GE QSFP+/QSFP28 ports, 2 hot-swappable AC/DC power supplies, which is one of the S6730 series switches.

Huawei CloudEngine S6730S-H series switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

Telecomate.com provides a full range of Huawei switches, optical modules, extension boards, if you have more demands, please contact csd@telecomate.com.



S6730S-H24X6C-A quick spec

24 10GE SFP+ optical ports

6 40GE/100GE QSFP+/QSFP28 ports

2 hot-swappable AC/DC power supplies

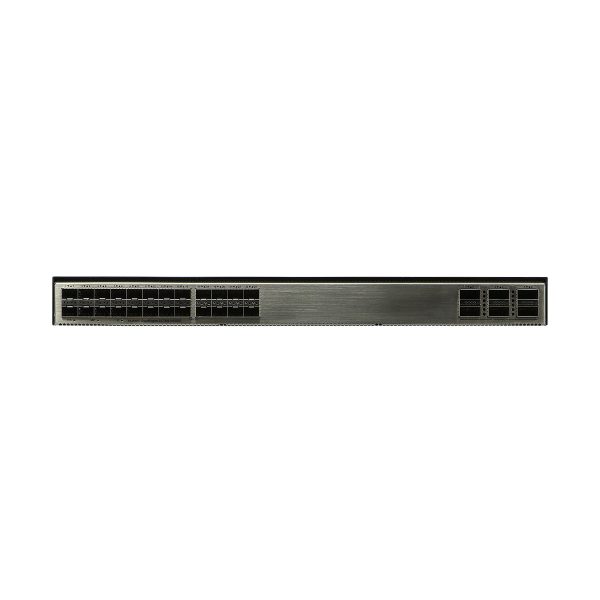

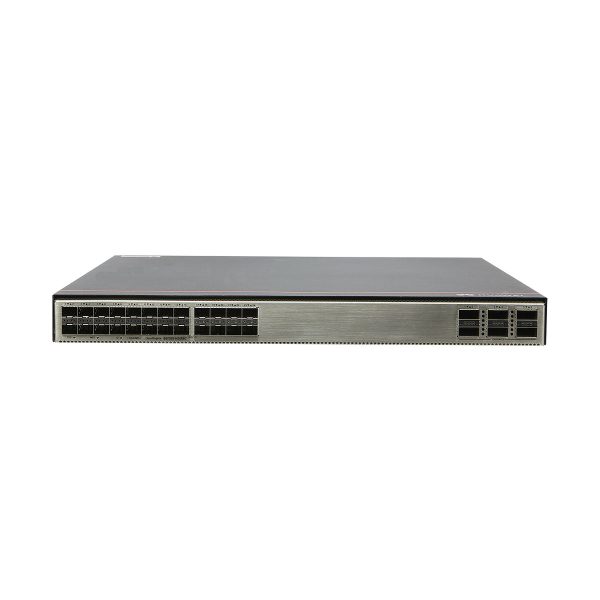

S6730S-H24X6C-A appearance and structure

S6730S-H24X6C-A

1. Twenty-four 10GE SFP+ ports 8. One PNP button
2. Six 40GE/100GE QSFP28 optical ports 9. Fan module slot 1
3. Ground screw 10. Fan module slot 2
4. SSD card slot 11. Fan module slot 3
5. One console port 12. Fan module slot 4
6. One ETH management port 13. Power module slot 1
7. One USB port 14. Power module slot 2
Item S6730S-H24X6C-A
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 62.27 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection N/A
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging) 9.84 kg (21.69 lb)
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 254 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 149 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module.
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 65 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 02353HVK
02353HVK-001

Additional information

Weight 19 kg
Dimensions 71 × 55 × 17.5 cm
